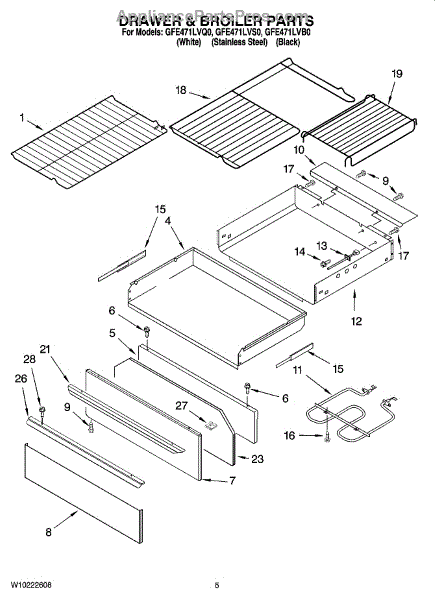

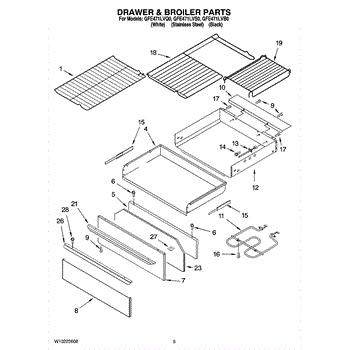

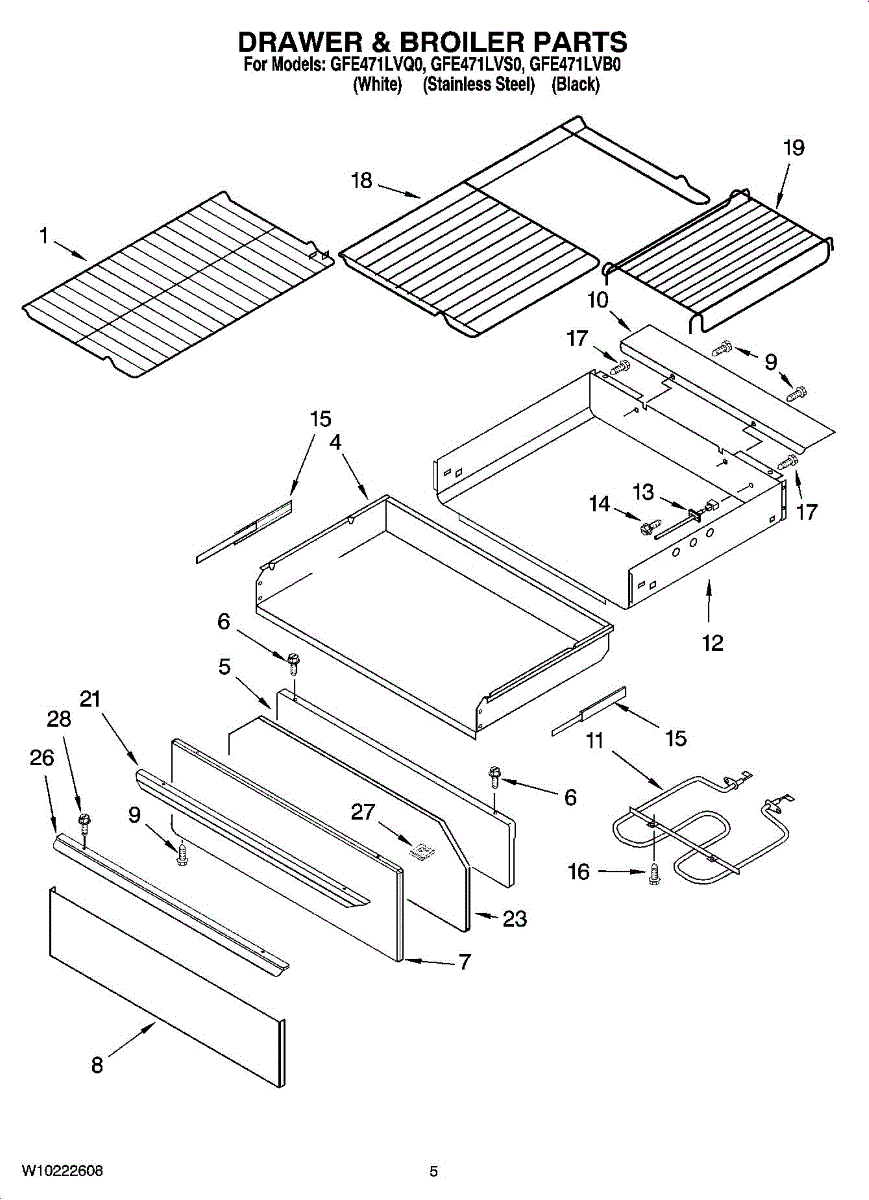

Parts for Whirlpool GFE471LVB0: 04 - Drawer & Broiler Parts

Replace your cracked, warped, or missing oven rack. This sturdy metal rack provides a reliable cooking surface inside your range oven cavity.

Replacement screw for electric ranges. Secures various internal components and panels. Needed when original screw is stripped, missing, or damaged.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

Color: Stainless

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

If your range won't reach set temperature or displays incorrect readings, the temperature sensor likely failed. This probe-style RTD sensor restores accuracy.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Partial oven rack for ranges. Installs inside oven cavity to support cookware when a full rack isn't needed. Replace if bent, damaged, worn, or missing.

This is a metal oven rack that slides into the guide rails inside the oven cavity, providing a flat surface to hold cookware at various heights. It is designed to withstand high cooking temperatures and support heavy dishes. Replace this rack if it is warped, rusted, or if the rails no longer allow it to slide smoothly in and out of the oven.

Color: Stainless

This small metal clip secures the body side panel to the range frame. It snaps into place to hold panels firmly aligned and prevent rattling or looseness. Replace this clip if your side panel feels loose, shifts out of position, or if the original clip has broken or gone missing during a repair.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken
