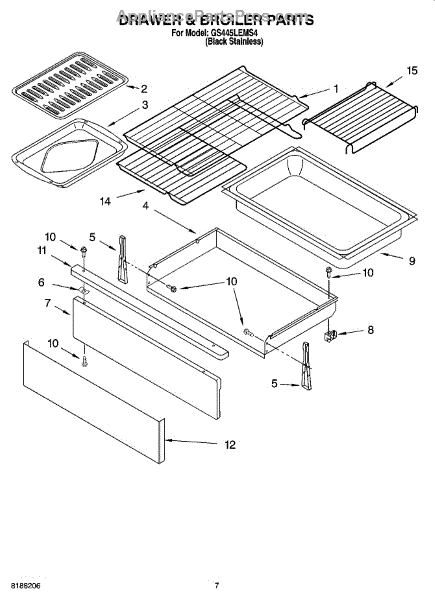

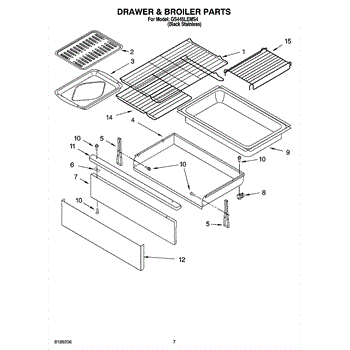

Parts for Whirlpool GS445LEMS4: 05 - Drawer & Broiler Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

For broil pan use WP3196076.

For broil pan grid use WP3195996.

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and reducing movement. It's a direct-fit structural support used where panels or assemblies need a stable attachment point. What it does:

• Secures panels, trim or internal assemblies to the appliance cabinet to prevent shifting or sagging
• Restores proper alignment to reduce vibration, rattling or scraping noises
• Helps maintain door and panel fit for correct operation and appearance
• Used when a broken, bent or missing bracket causes loose or misaligned parts

• Disconnect power and water before starting any repair
• Verify bracket orientation and location against the appliance before tightening
• Use original mounting hardware when possible; inspect screws or clips and replace if worn

This replacement drawer panel restores the finished front of your appliance drawer so it looks and functions like new. It replaces a cracked, dented, or scratched front and helps the drawer seal and slide properly. What it does:

• Replaces a damaged or cosmetically worn drawer front to restore appearance
• Provides a proper mounting surface so the drawer closes and opens smoothly
• Helps maintain drawer alignment and fit against surrounding trim
• Matches original fit and attachment points for an easy swap when hardware is transferred

• Disconnect power or follow the appliance safety shutoff procedure before starting
• Remove the drawer and transfer any original mounting clips, brackets, or screws to the new panel
• Handle edges carefully to avoid damage; use appropriate tools and support the drawer during reassembly
• Refer to your model's service instructions for exact disassembly and reassembly steps

The Drawer Glide is an OEM part for Whirlpool ranges and ovens. This part allows the smooth operation of the appliance's drawer. This part ensures that the drawer beneath the oven or range slides in and out effortlessly, providing convenient access to pans, sheets, and other cooking utensils stored within.

Causes of a bad drawer glide can include accumulated debris or dirt, physical strain from overloading the drawer, or natural wear and tear from frequent use.

Symptoms of a bad Drawer Glide include:

• The drawer sticking or not opening smoothly
• Visible wear or damage to the glide mechanism
• The drawer sagging or not closing properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw for side trim.

This partial oven rack provides a sturdy, heat-resistant support for cookware when a full rack isn't needed. It restores proper sliding and positioning so pans and bakeware sit level during cooking. What it does:

• Replaces a bent, damaged, or missing partial oven rack to restore stable support for cookware
• Slides into existing oven rack supports for secure, level positioning
• Helps prevent cookware from tipping or sliding during use
• Durable finish resists typical oven heat and wear under normal use

• One partial oven rack

• Allow the oven to cool completely before handling interior parts
• No special tools typically required; slide rack into the oven's existing guides until seated
• If rack resistance or fit seems off, inspect oven supports for damage or debris and clean before installing
• For safety, disconnect power at the breaker if you must access electrical components or perform additional service

This replacement rack insert helps organize and protect dishes and utensils inside the dishwasher, restoring proper spacing and support for safe cleaning. It fits into the rack to prevent items from shifting or knocking during cycles. What it does

• Replaces a worn, broken, or missing rack insert to restore proper item support and spacing
• Holds dishes, glasses, or utensils in place to reduce chipping and clattering during wash cycles
• Keeps small items from tipping or falling through the rack grid
• Compatible with racks designed to accept this style of insert

• One rack insert

• Install by snapping or sliding the insert into the designated rack slots; no special tools generally required
• Inspect rack rails and surrounding clips for damage before installing
• Handle with care to avoid pinching; wear gloves if edges are sharp
