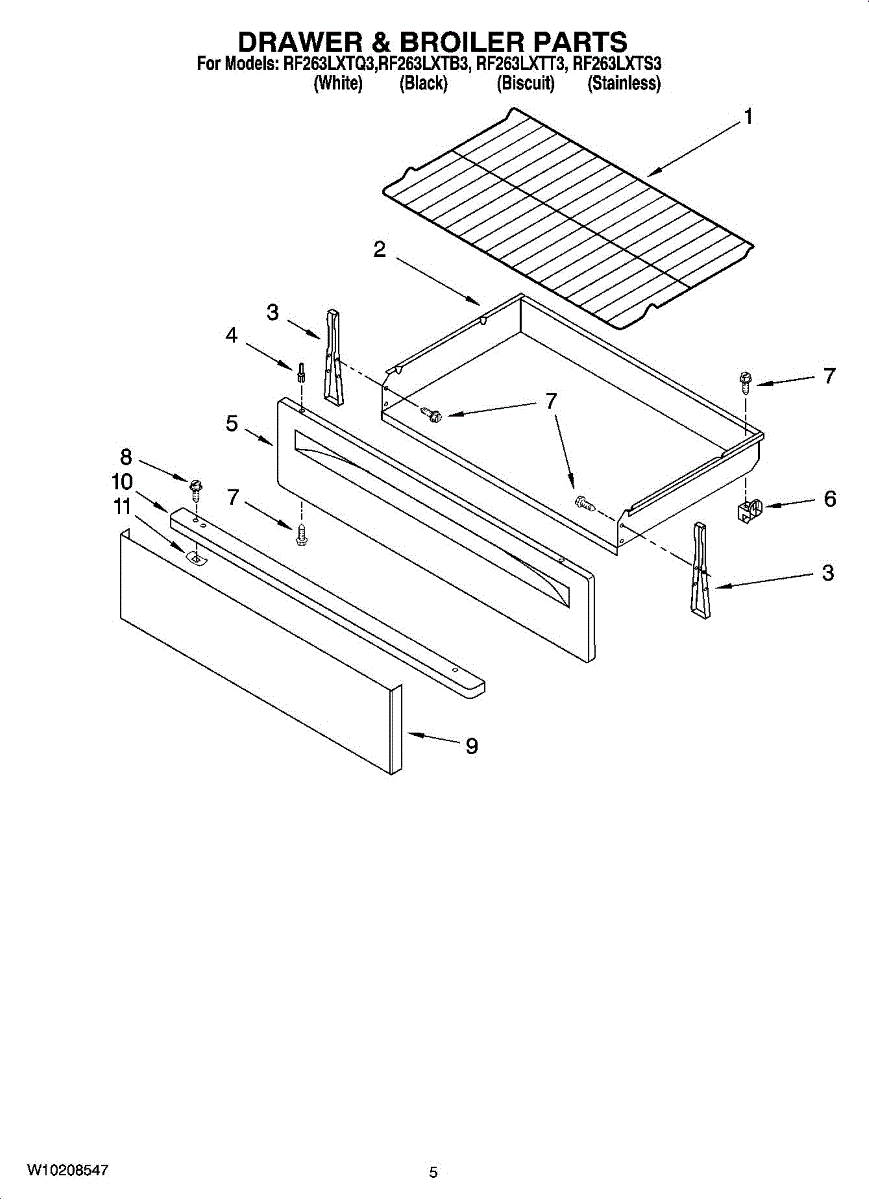

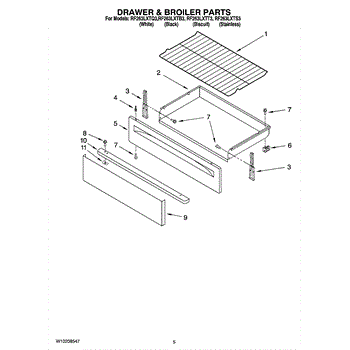

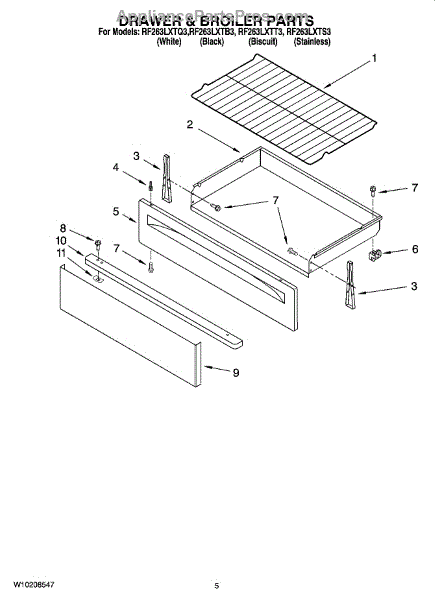

Parts for Whirlpool RF263LXTB3: 04 - Drawer & Broiler Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Mounting bracket that secures a drawer to its cabinet or glide assembly, restoring stability and alignment for smooth opening and closing. Replaces damaged or missing brackets that cause sagging, misalignment, or detachment. What it does:

• Secures the drawer to the cabinet or slide hardware so the drawer stays aligned and supported.
• Restores smooth opening and closing when a worn or broken bracket causes binding or uneven travel.
• Prevents the drawer from sagging, pulling out, or detaching from the glide.
• Use when bracket is cracked, bent, or missing to regain proper drawer function.

• Disconnect power to the appliance or unplug it before beginning work.
• Basic hand tools are typically required; keep original fasteners for reuse if they are undamaged.
• Remove the drawer and inspect the glide/rail for damage before installing; reinstall drawer and verify smooth operation.

Color: Black.

Color: White.

This replacement drawer panel restores the exterior trim and alignment of a refrigerator/freezer drawer for a clean, finished look. It replaces damaged or worn panels to help the drawer close and operate as intended. What it does:

• Replaces cracked, dented, scratched or discolored drawer front trim
• Restores proper front alignment and helps ensure the drawer closes smoothly
• Provides the cosmetic finish that matches the appliance's lower drawer
• Secures to the drawer assembly using existing fasteners and mounting points

• Disconnect power to the appliance before beginning work
• Remove the drawer assembly to access mounting screws and clips as needed
• Keep original fasteners and trim pieces; transfer them to the new panel unless replacements are supplied

Color: Black

Color: White

The Drawer Glide is an OEM part for Whirlpool ranges and ovens. This part allows the smooth operation of the appliance's drawer. This part ensures that the drawer beneath the oven or range slides in and out effortlessly, providing convenient access to pans, sheets, and other cooking utensils stored within.

Causes of a bad drawer glide can include accumulated debris or dirt, physical strain from overloading the drawer, or natural wear and tear from frequent use.

Symptoms of a bad Drawer Glide include:

• The drawer sticking or not opening smoothly
• Visible wear or damage to the glide mechanism
• The drawer sagging or not closing properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screw for side trim.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken

Color: Stainless
