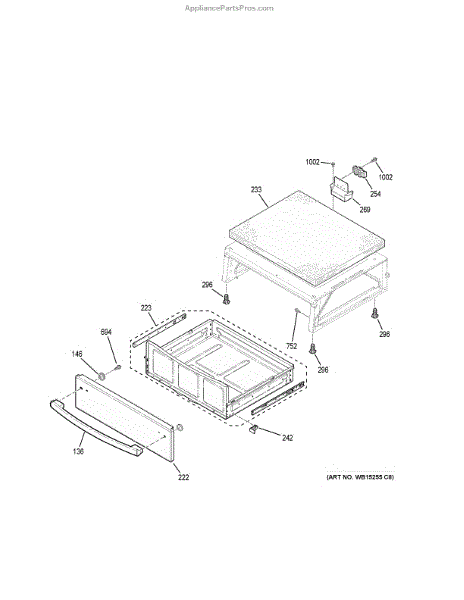

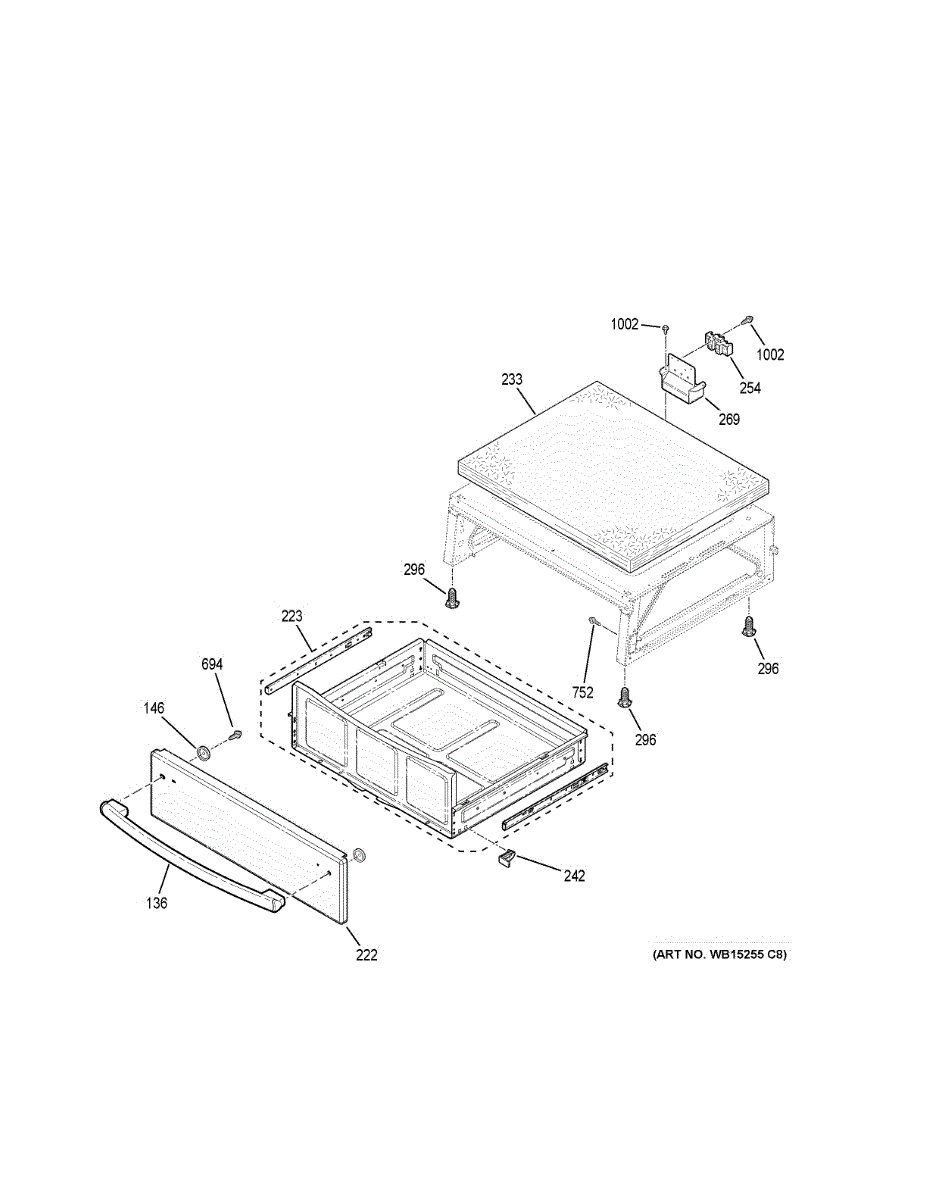

Parts for Ge PB930SL2SS: Drawer Parts

The Handle and End Cap Assembly is an OEM replacement part for GE ranges. It is a stainless steel colored handle with the mounting encaps already attached.

Causes of a bad handle and end cap assembly can include normal wear from frequent use over many years. Damage from accidental impacts is also possible.

Symptoms of a bad handle and end cap assembly include:

• Difficulty opening or closing the oven door smoothly
• Excessive force required to engage the latching mechanism
• The door not sitting flush or properly sealing when shut
• Weakened hinges or handles prone to breakage
• Scratches, cracks, or deterioration appearing on surfaces

This OEM part is also compatible with some models produced by Hotpoint, Amana, and Sears Kenmore.

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

The drawer wedge aligns and stabilizes your range's lower storage/warming drawer so it slides smoothly and closes flush. Replacing a worn wedge restores proper fit and helps prevent rattling, scraping, and an uneven drawer gap.

• Keeps the lower drawer centered and level in the cabinet
• Provides a firm stop/spacing for a flush, consistent close
• Reduces side-to-side play and vibration during use
• Common symptoms: crooked drawer, uneven front gap, scraping noises, drawer not closing fully

• Disconnect power and allow the range to cool before servicing
• Remove the lower drawer to access the wedge location
• Note the wedge's orientation; install the new wedge in the same position
• Reinstall the drawer and verify smooth travel and proper alignment

The Terminal Block Assembly is an OEM replacement part for GE electric stoves. It acts as the central wiring connection hub, routing power to critical heating components such as the oven bake/broil elements and stovetop burners.

Symptoms of a bad terminal block include:

• Intermittent or unpredictable burner/heating element operation
• Inability to achieve proper cooking temperatures
• Buzzing or crackling noises from inside the stove cabinet

Causes stem from normal wear over time, as vibration and heat cycling can cause cracks or corrosion in the block's electrical connections.

This OEM GE part is compatible with Hotpoint, RCA, and some Kenmore electric stove models.

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer
