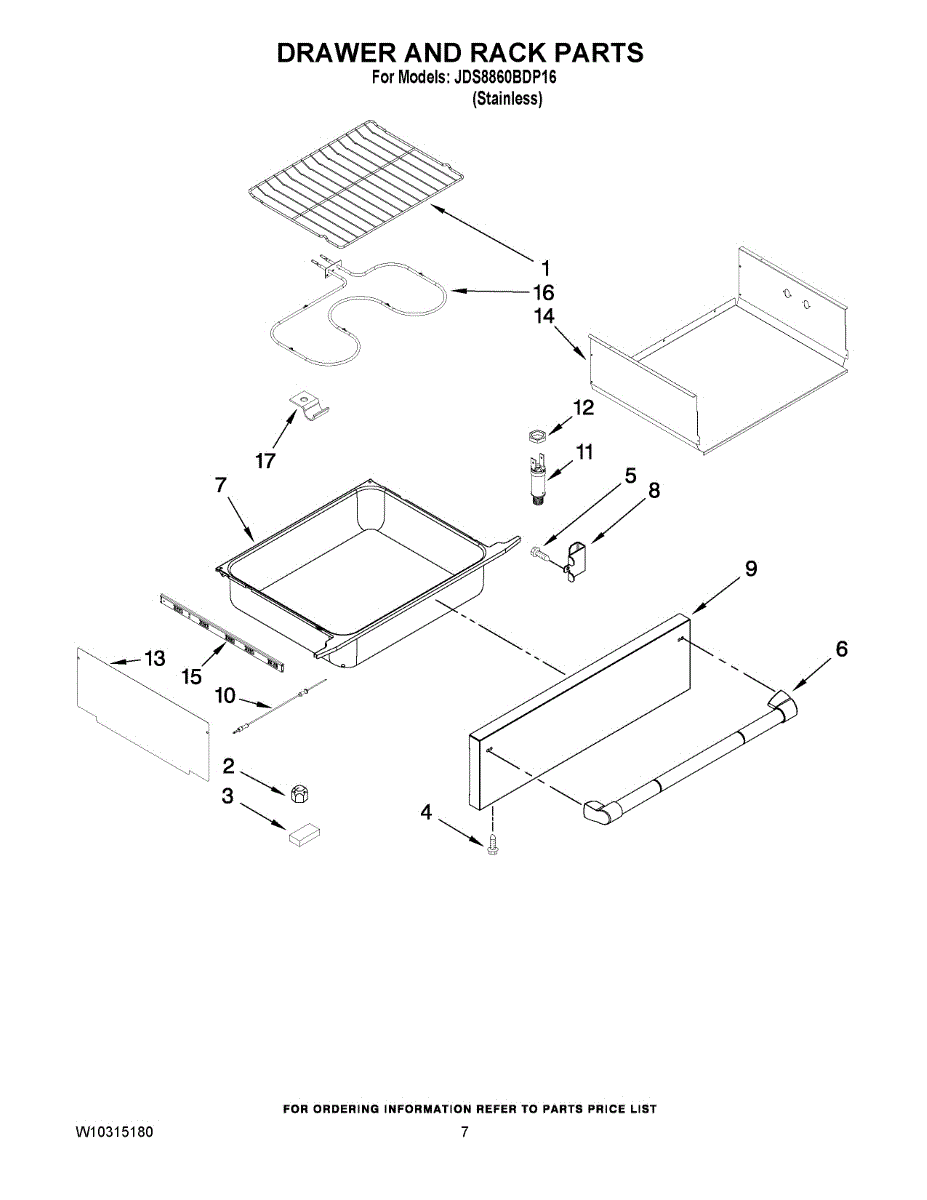

Parts for Maytag JDS8860BDP16: 05 - Drawer And Rack Parts

Color: chrome. Measures about 23 inches wide by 16 inches deep.

A 10-24 lock nut used to secure threaded fasteners and prevent loosening from vibration. Simple, durable replacement that restores proper fastening where the original nut has worn or failed. What it does:

• Secures shafts, studs, or bolts with 10-24 threads and resists loosening under normal appliance vibration.
• Restores proper tension where a stripped or loose nut causes rattling or parts shifting.
• Helps maintain alignment of panels, brackets, or components that rely on a locked fastener.
• Small hardware solution for common fastening failures—no special part modifications required.

• Disconnect appliance power and water before beginning repairs.
• Use the correct 10-24 threaded fastener and a properly sized wrench or socket to avoid rounding the nut.
• Tighten to a snug fit—do not overtighten or force onto damaged threads.
• Inspect mating threads and replace the bolt/stud if threads are stripped or damaged.

Size: 8abx3/8 - blk)

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: dark brown. Its total length is about 21 inches.

This receptacle provides the appliance's electrical connection point, restoring a secure power feed and preventing intermittent or no-power issues. Use it to replace a damaged or worn connector for reliable operation. What it does:

• Restores the appliance's main power connection where the cord or harness plugs in
• Replaces cracked, melted, or loose receptacles that cause intermittent power
• Stops arcing or poor contact that can lead to shutdowns or overheating smells
• Helps ensure a firm, vibration-resistant electrical connection

• Disconnect all power before starting work to avoid shock or injury
• Verify wiring colors and terminal positions match the original before reconnecting
• Securely fasten the receptacle and strain-relieve the cord/harness to prevent movement

This center glide drawer replacement restores smooth opening and closing for the fridge drawer, keeping stored items accessible and properly supported. Designed to match OEM fit for reliable operation. What it does:

• Provides the sliding support for the fridge center drawer so it opens and closes smoothly
• Replaces worn or damaged glide hardware that causes sticking or uneven movement
• Helps keep the drawer aligned and prevents tipping when pulled
• Reduces noise from a loose or damaged drawer slide

• One center glide drawer assembly

• High-level replacement only; your model's parts diagram for exact location and orientation
• Disconnect power and remove contents from the drawer before servicing for safety
• Use basic hand tools; support the drawer while removing and installing glide to avoid drops
• If fasteners or mounting clips are missing or damaged, replace with OEM-specified hardware
