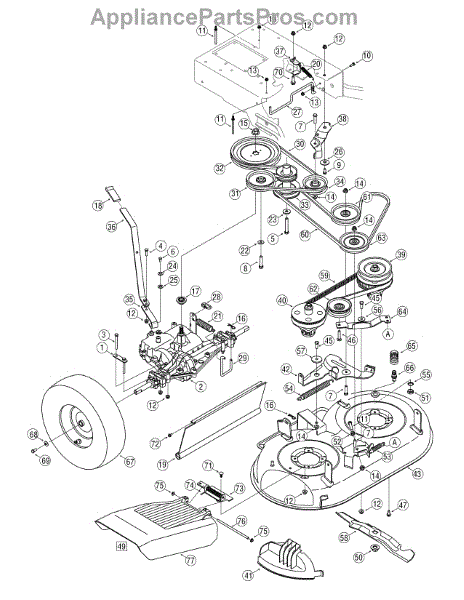

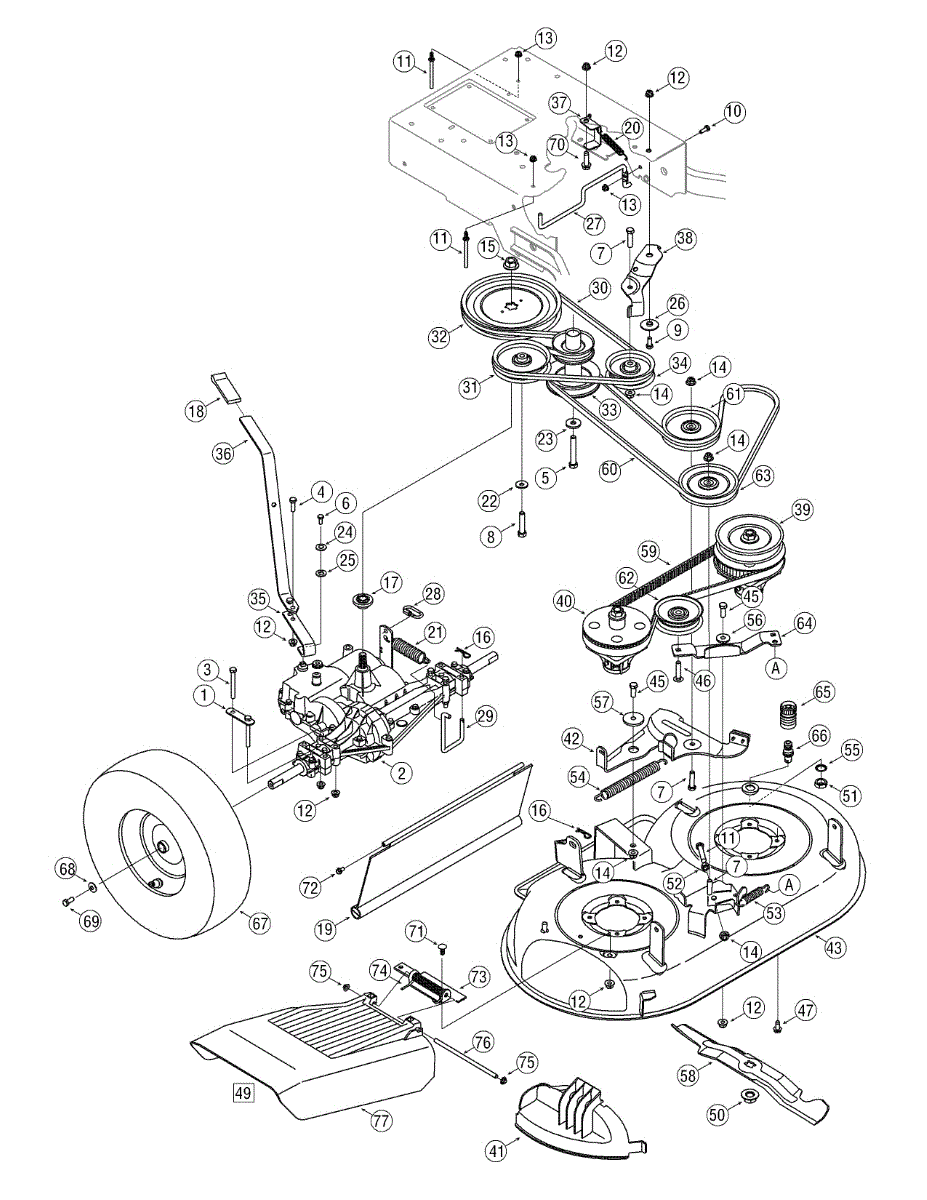

Parts for Craftsman 247.887330 / 2008: Drive Assembly Parts

This is a hex head bolt 1/4 - 28 x .625. It is used to secure a device together for smooth and simple operations. With use and over time, the hex head bolt may be damaged or come loose and fall out. When the bolt is missing, the machine could fall apart or otherwise malfunction. Be sure to replace a missing or damaged hex head bolt.Allow the equipment to cool completely before starting the repair process. An Allen key or hex key will be required to loosen and remove any old or damaged bolts. The new bolt can then be inserted and secured tightly. Examine for other missing parts before starting the device.The hex head bolt 1/4 - 28 x .625 is an authentic OEM part. It is sold as an individual unit. It is made of rugged, durable, high-quality materials. The hex head bolt can be used in lawn equipment machines, including various models of tillers. It is compatible with MTD, Yard Machines, Yard-Man, Troy-Bilt, and Cub Cadet brands.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This replacement part is a trail shield, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This trail shield is responsible for keeping the user safe during use. It is typically used to shield the blades of the lawn mower so that they are protected from things that might get caught. A new trail shield might be needed if the current one is damaged or missing from the lawn mower. If this is the case, the user should consider replacing this part as soon as possible as the machine can be dangerous to operate without this part. Be sure to wear working gloves while repairing this part as you might com in contact with the blades of the lawn mower. This is an OEM replacement part and has been sourced directly from the manufacturer. This trail shield is sold individually.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

The lawn mower blade extension spring, sometimes called an idler spring, is for use with select mowers. The spring is used to hold the idler pulley and ensure it is tight against the belt. This will allow the belt to turn. If the spring has been damaged, it will not provide the proper tension, which means that belt may not turn properly, or it might not turn at all.The spring is made from metal and it receives a lot of use. There is the risk of corrosion, as well as the spring simply becoming worn out. If this happens, the owner should replace it as soon as possible. This will ensure that the mower works properly. The replacement is easy, but owners should be sure to use gloves to keep their hands safe.The lawn mower blade extension spring is compatible with some mowers from Troy-Bilt, MTD, Craftsman, and Cub Cadet. This is a genuine OEM replacement piece that was sourced from the manufacturer. The spring is sold individually.

This replacement part is an extension spring. This is a genuine replacement part made by MTD. Extension springs are an important part of many types of appliances and ensure that torque and other forces allow the engine to run. A new extension spring might be needed if the current one is missing or damaged in any way. This type of spring can easily become brittle under pressure and snap after years of use. Be sure to replace this spring as soon as possible if this is the case. It is recommended that the engine be completely turned off and cooled down before replacing this part. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This internal lock washer is a genuine MTD part, sold individually. This internal lock washer can be used as a replacement part for lawn mowers, snowblowers, tillers, and lawn tractors. The purpose of the internal lock washer is to stop the nut or bolt head from gradually coming loose over time.The internal lock washer is a small component that is easily lost or misplaced within the lifespan of a small engine outdoor appliance. If the internal lock washer becomes stripped over time or is subject to another form of damage that loosens or warps it, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This internal lock washer is compatible with the following outdoor appliance brands: MTD, Cub Cadet, Yard Man, Yard Machines, Bolens, Toro, Ryobi, Troy-Bilt, Murray, Huskee, Montgomery Wards, and MasterCut.

This timing belt is a genuine MTD part, sold individually. This timing belt can be used as a replacement part for a lawnmower. The timing belt maintains the positioning of the blades so that they are rotated in time without interfering with one another.The timing belt might have to be replaced if it is damaged or is not working properly within the infrastructure of the appliance. If the blades are knocking into each other while the lawnmower is in operation or if the belt shows signs of damage in the form of punctures, piercings, tearing, or erosion, the timing belt should be removed and replaced with this genuine OEM replacement part before using the lawnmower again. Remember to wear work gloves as a safety precaution while repairing or replacing parts within an outdoor appliance. This is an OEM part sourced directly from the manufacturer. It is sold individually. This timing belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Troy-Bilt, and Cub Cadet.

This replacement part is an idler pulley. It is a genuine replacement part made by MTD. This idler pulley is found in different appliances that require moving or spinning parts during use. Pulleys typically help in the movement between two parts so that the entire appliance is able to work smoothly. A new idler pulley might be needed if the current one is not working properly or is damaged in any way. If the user notices unusual noises coming from inside the machine it might be due to a malfunctioning idler pulley. This part is sold individually and is sourced directly from the manufacturer. This idler pulley is a genuine OEM replacement part.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

The hex screw is a specialty screw that has various uses on lawn and garden equipment engines and housings. Over time, screws are known to become worn, corroded, lost, or otherwise damaged. This is an identical replacement that will have many locations and applications, but when it becomes damaged or gets lost it should be replaced as soon as possible. This is a specialty screw that is not designed for general use. Refer to parts diagrams for the appropriate location and installation of this screw for a guaranteed fit. This OEM hex screw is manufactured to exact standards and can be used in more than 150 different brands of machines. It is compatible with snow throwers, lawn mowers, and blowers from RYOBI, Yard Machines, Yard Man, Poulan, Troy-Bilt, MTD, Bolens, Cub Cadet, and Husky. This high-quality hex screw is made of metal and sold as an individual unit. Those who need more than one screw will have to purchase multiple quantities. A wrench is required to replace this screw. Always allow engines to cool completely before performing any repairs and wear gloves for hand protection.

This is a genuine replacement self-tapping hex screw with a blunt nose designed for lawn mowers and lawn tractors. It is used in a variety of locations for the engine assembly of lawn mowers. The self-tapping feature allows the metal screw threads to tightly secure to other metal. The blunt nose requires the use of a pre-drilled pilot hole smaller than the diameter of the screw. These screws do not interchange well. Be sure to check the owner's manual to ensure the correct part number. The hex head needs a socket wrench for the easiest removal and replacement. When removing this type of screw, stripped threads can occur. If this happens, use a screw of the same type in a slightly larger size to accommodate for the damage. Typically, this type of screw would need to be replaced when removed to access another part of the lawn mower for replacement, such as the carburetor. This an OEM part sourced directly from the manufacturer and is sold individually. This screw fits products by Bolens, Brute, Columbia, County Line, Craftsman, Cub Cadet, Huskee, Huskee Supreme, MTD Black, MTD Gold, Mastercut, Murray, Troy Bilt, Yard Man, & Yard Machines.

This part is a replacement carriage bolt. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective, lost, or stripped carriage bolt outdoor power equipment.Bolts are standard pieces of hardware that can be used in many different areas and with many different types of equipment. Bolts can become stripped, corroded, loose, or lost and will require replacement. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this particular carriage bolt, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This carriage bolt can be used with a variety of leaf blower models manufactured by MTD, Craftsman, and other brands.

This replacement part is a push cap and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This push cap is found in different types of lawn mowers and helps the user in switching settings during use. This part is small but important to the operation of many different appliances. A new push cap might be needed if the current one is damaged or missing. This part is frequently used so it is not unusual for it to become stripped or damaged and need replacing after years of normal wear and tear. This repair should be fairly simple and require only common household tools. It is recommended that work gloves be work especially if the previous part is damaged. This push cap is sold individually and is a genuine OEM replacement part. This part is sourced directly from the manufacturer to ensure a proper fit.
