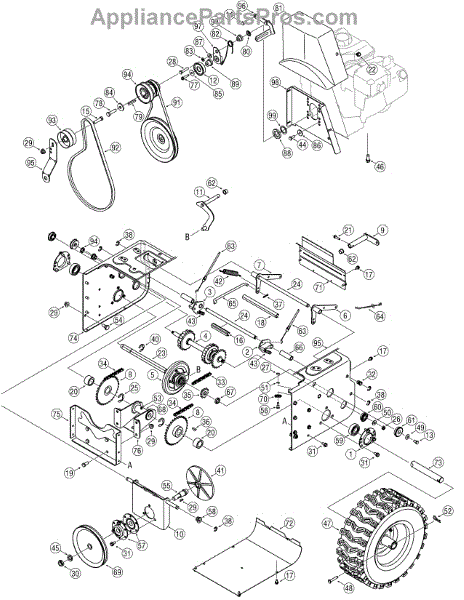

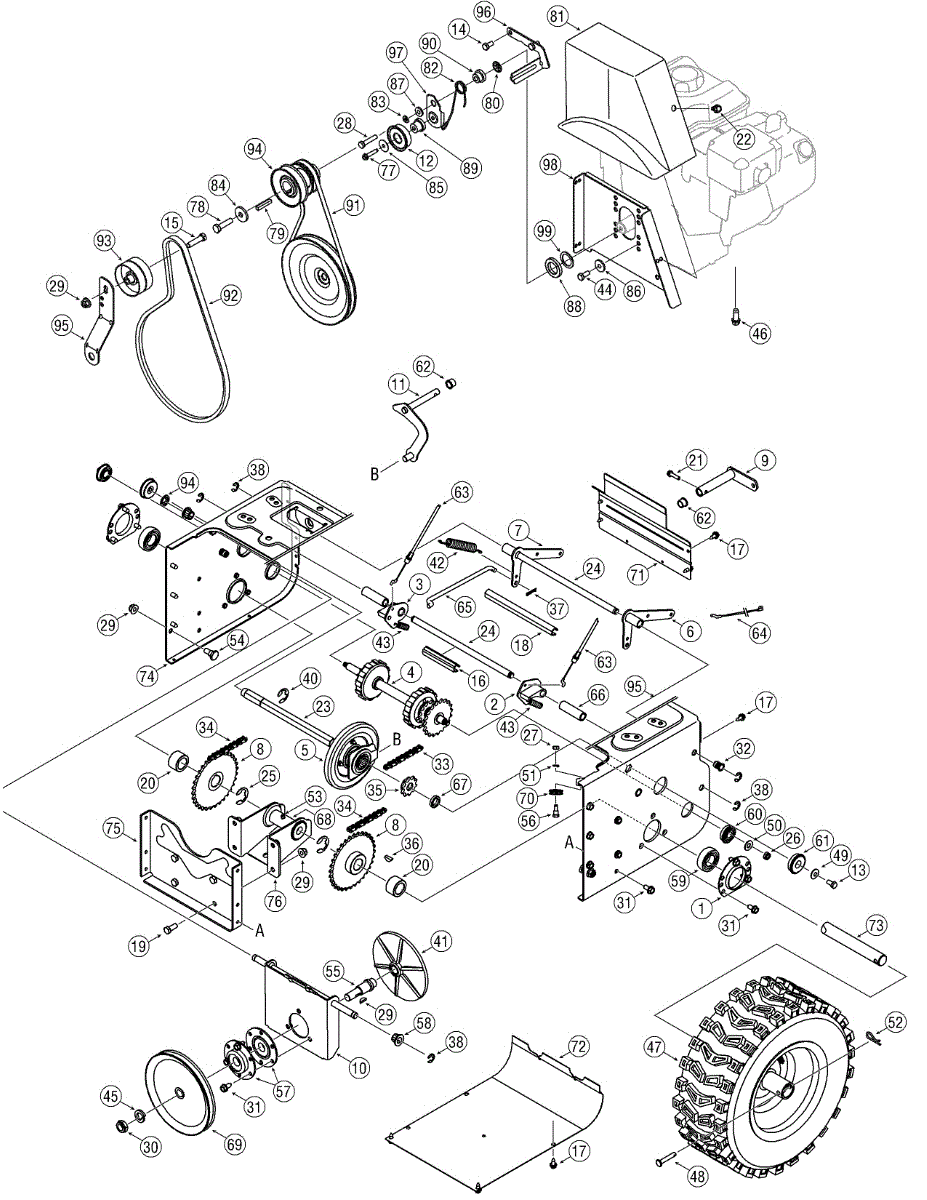

Parts for Craftsman 247.88833 / 2008: Drive Assembly Parts

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

The Hex Head Self-Tapping Screw is an OEM part for MTD outdoor power equipment. This screw is designed to securely fasten components of your equipment, providing reliable and durable connections. The thread size is 5/16 inches for major diameter, with 18 threads. The screw is 3/4 inches long and has a hexagonal or six-sided head.

Over time, the Hex Head Self-Tapping Screw can become damaged due to corrosion, stripping of the threads, or wear from frequent tightening and loosening. This can compromise the integrity of the connections and potentially lead to equipment malfunction.

Symptoms of a bad Hex Head Self-Tapping Screw include:

• Loose or wobbly components
• Difficulty tightening or loosening the screw
• Visible damage or corrosion on the screw

This OEM replacement part is designed for use with various models of MTD outdoor power equipment.

The hex screw is a specialty screw that has various uses on lawn and garden equipment engines and housings. Over time, screws are known to become worn, corroded, lost, or otherwise damaged. This is an identical replacement that will have many locations and applications, but when it becomes damaged or gets lost it should be replaced as soon as possible. This is a specialty screw that is not designed for general use. Refer to parts diagrams for the appropriate location and installation of this screw for a guaranteed fit. This OEM hex screw is manufactured to exact standards and can be used in more than 150 different brands of machines. It is compatible with snow throwers, lawn mowers, and blowers from RYOBI, Yard Machines, Yard Man, Poulan, Troy-Bilt, MTD, Bolens, Cub Cadet, and Husky. This high-quality hex screw is made of metal and sold as an individual unit. Those who need more than one screw will have to purchase multiple quantities. A wrench is required to replace this screw. Always allow engines to cool completely before performing any repairs and wear gloves for hand protection.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

This drive pulley is a genuine MTD part, sold individually. This drive pulley can be used as a replacement part in a snowblower or an edger. This part is used in conjunction with the drive belt to move the appliance.The drive pulley in a snowblower or an edger might have to be ordered as a complete replacement part in a drive pulley that can no longer generate rotation in the wheels of the appliance. This could occur if the drive pulley has suffered damage from general wear and tear with long-term use or as the result of a collision with a hard object such as a rock or a curb.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This drive pulley is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, Yard Man, and MasterCut.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

This replacement part is a washer. This is a genuine replacement part made by MTD. Washers are a very important part of many different types of machinery. These small pieces work together with other small parts to help the pieces of the machine stay in place and secure so that everything operates smoothly.A new washer might be needed if the current one is missing or damaged in any way. Washers can become stripped over time and might not stay in place after a while. If this is the case it is recommended that it be replaced as soon as possible. This repair should be fairly easy and only require a screwdriver and possibly pliers. Be sure to wear work gloves during this repair. This part is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit.

This is a genuine replacement flat idler pulley used in snowblowers. The idler pulley applies tension to the belt, allowing the belt to turn. If the pulley is causing loud noises or is seizing up, which can cause the belt to break, a replacement may be necessary. A broken belt will cause a snowblower to be unusable.The process for replacing this part will vary depending on the model of the snowblower, so consult the equipment's manual and diagrams for specific instructions. For all replacements, a wrench and/or a socket set of the correct size depending on the machine is needed. Dependent upon the repair needed, bearings and bushings may also need replacement, they are not included and must be bought separately. This is a genuine MTD replacement part. This replacement flat idler pulley is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man brands.

The engine pulley is a wheel that guides or drives the belt or belts within the engine compartment. The pulley has groves to help keep the belt secured in place while it spins around the component. The engine pulley belts are typically composed of high-quality, heat-resistant metal materials to withstand high temperatures and long periods of use. At times, the engine pulley can wear out, break, or become otherwise ineffective at performing its function. When this happens, a replacement engine pulley is required.When trying to determine if the engine pulley is faulty, check for belts that continually need to be adjusted or tightened or a pulley that won't secure belts at all. Be sure to have the appropriate tools for the repair on hand. Wear gloves for protection and ensure the motor is completely cooled before starting.This is an engine pulley replacement part that is an authentic OEM piece. It is sourced from the manufacturer and sold as an individual unit. The engine pulley is compatible with various engines found in edgers, trimmers, and snow blowers made by MTD, Yard-Man, Troy-Bilt, Cub Cadet, and Yard Machine brands.

This part is a replacement push cap. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current push cap is broken or has been misplaced, this part can be used as a replacement. It is intended for use with several lawnmower models.The push cap is attached to the wheel hub cap and fits over the end of the axle shaft. This helps to protect the end of the shaft and the attached bolt that holds the wheel into position. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this push cap, the appropriate owner's manual and equipment diagrams should be referred to. This push cap is suitable for use on a variety of lawnmower models manufactured by MTD, Yard Machines, Craftsman, Yard Man, and Troy-Bilt. It is a genuine OEM part and thus is made of high-quality, durable materials. This part is sold individually.
