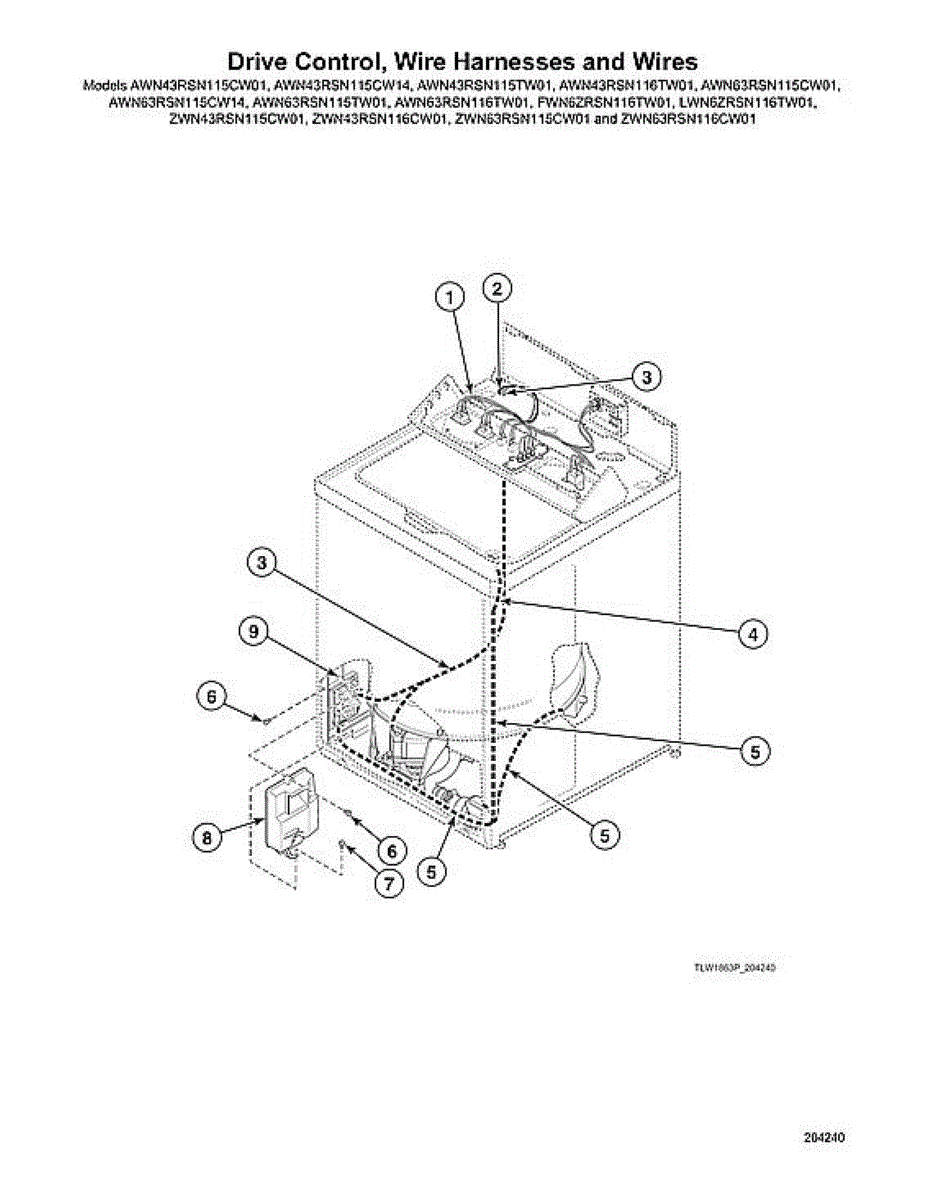

Parts for Speed Queen AWN63RSN116TW01: Drive Control / Wire Harnesses / Wires Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This pressure sensor harness connects the washer's pressure sensor to the control board so the machine can detect water level and run cycles correctly. Replacing a faulty harness restores reliable pressure signal transmission. What it does:

• Transmits the pressure sensor signal to the washer control for accurate water-level detection
• Helps prevent overfill, underfill, or incorrect cycle advancement when functioning properly
• Commonly replaced when the washer shows pressure-related error codes, erratic filling, or failure to advance
• Maintains sealed connector and wiring continuity to ensure consistent sensor readings

• Disconnect power before servicing to avoid shock or damage
• Inspect connectors and wiring for corrosion or pin damage; replace if any are compromised
• Route harness away from heat sources and sharp edges; secure with existing clips
• After install, run a diagnostic or a short cycle to ensure proper pressure readings and function

This control/drive power harness routes electrical power between the washer's main control and drive components, restoring reliable power connections for normal operation. Use this harness to replace damaged, burned, or disconnected wiring that causes intermittent power or drive failures. What it does:

• Delivers power and signal connections between the main control board and drive motor assembly
• Replaces frayed, melted, or corroded wiring that can cause intermittent starts or loss of drive
• Helps resolve symptoms such as no spin, no motor power, or machines that stop mid-cycle due to poor connections
• Ensures secure connector fit to prevent arcing and reduce risk of further electrical damage

• Disconnect power to the appliance before beginning any work to avoid shock or injury.
• Verify connectors match originals and route harness away from heat sources and moving parts.
• Inspect adjacent terminals and components for heat damage; replace if necessary.

This lid lock wiring harness connects the washer lid lock assembly to the main wiring system, restoring the lid-lock signal for safe operation. It replaces a damaged or worn harness to help ensure the lid locks and unlocks reliably during cycles. What it does

• Provides the electrical connection between the lid lock switch and the washer control board
• Restores lost or intermittent lid-lock function caused by frayed or broken wiring
• Helps prevent the washer from starting or spinning when the lid is open (symptom: washer won't start or stops mid-cycle)
• Supports normal lock/unlock signaling during wash and spin cycles

• One lid lock wiring harness

• Disconnect power before starting — follow all electrical safety precautions
• Inspect connectors for corrosion or damage; replace harness only if matching connector type
• Route wiring clear of sharp edges and moving parts to avoid future wear

This drain pump harness connects the washer's control/power circuits to the drain pump so the pump can run and remove water. Replacing a damaged harness restores reliable electrical connection for proper draining. What it does

• Provides power and signal paths between the control board and drain pump
• Enables the drain pump to run when the washer calls for pump operation
• Commonly associated with symptoms like no drain, intermittent pump operation, or pump not receiving power
• Prevents shorts or intermittent connections caused by frayed wires or damaged terminals

• Disconnect power before starting any repair to avoid shock or injury
• Inspect connectors for corrosion and ensure mating terminals are clean before connecting
• Route harness away from sharp edges, hot surfaces, and moving parts; secure with existing clips or fasteners

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This is a tapping screw with a hex head and Torx drive designed to fasten panels and components on Speed Queen laundry appliances. It provides a secure, vibration-resistant hold for repeatable service and repairs. What it does

• Fastens outer panels, brackets and internal parts where a self-tapping screw is required
• Holds components tight to prevent rattling or misalignment during operation
• Replaces missing, worn or stripped screws that cause loose or insecure parts
• Used when a screw must tap its own threads in sheet metal or thin substrates

• One tapping screw (hex head Torx)

• Use the correct Torx driver bit to avoid stripping the drive recess
• Drive straight and steady; do not over-torque to prevent thread or sheet-metal damage
• Follow OEM service instructions for panel removal and fastening order
• Disconnect power and follow safety precautions before servicing the appliance

This control assembly operates the washer's drive system and on-board controls to run timed wash and spin cycles. Replaces a failed control to restore normal cycle sequencing and drive motor operation. What it does:

• Sends power and signals to the washer drive motor so the machine can agitate and spin
• Manages cycle timing and control board functions for proper wash cycles
• Engages safety interlocks and responds to user controls/commands
• May cause symptoms like the washer not starting, not agitating/spinning, or showing control errors when faulty

• One control assembly (drive, 120V)

• Disconnect electrical power before removing or installing the control to avoid shock
• Handle the board and connectors carefully; avoid static discharge and bent pins
• Verify connector locations and mounting before powering up to prevent short circuits

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
