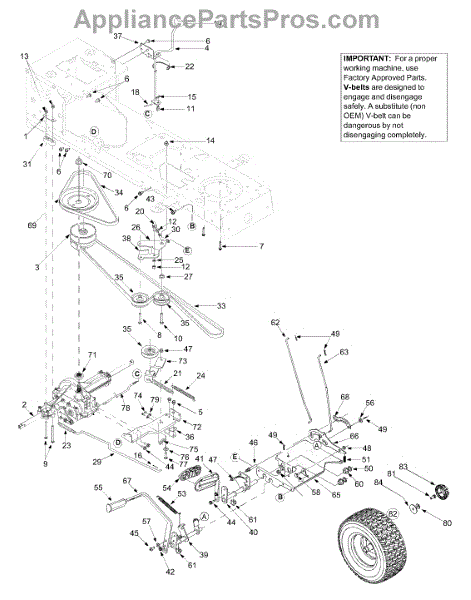

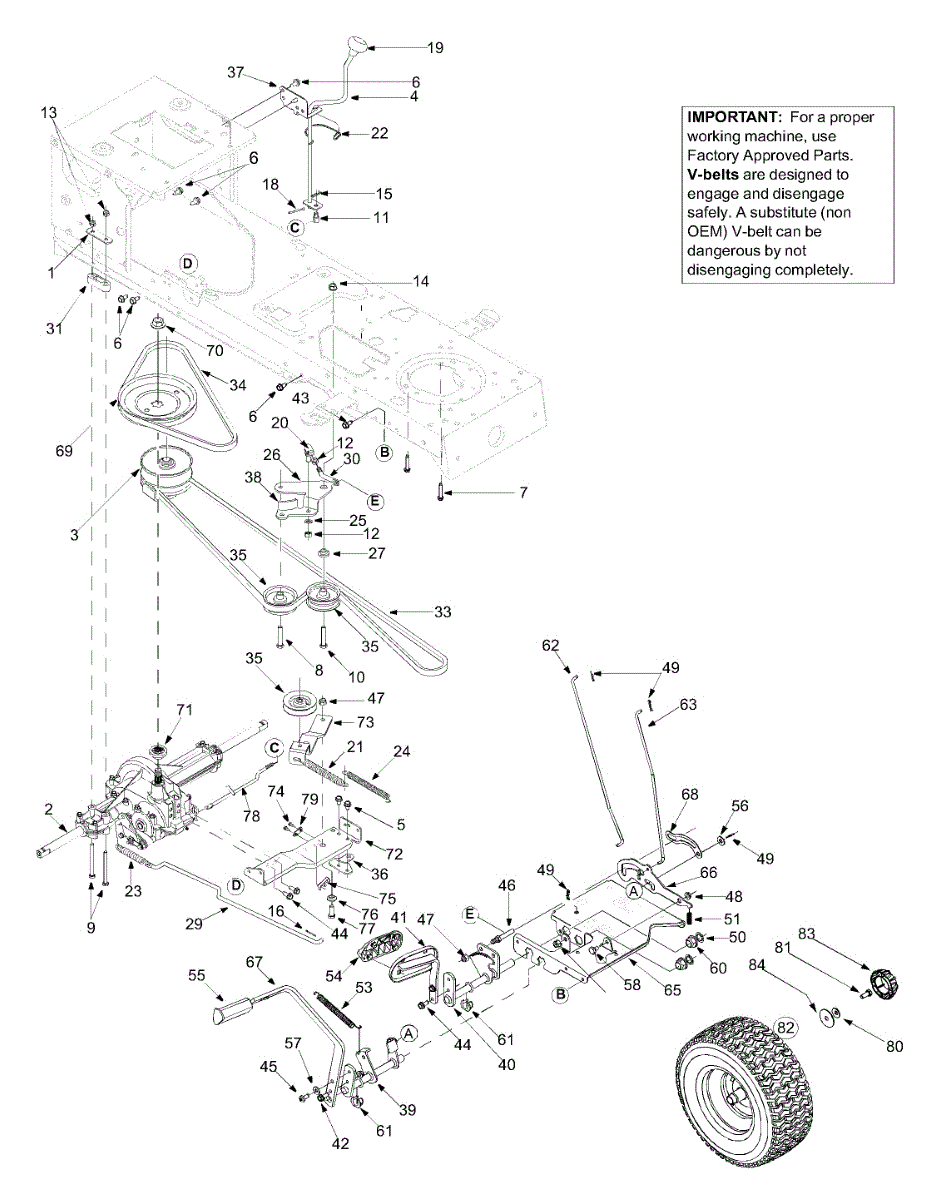

Parts for Yard-Man 13BT604H401 / 2004: Drive, Controls, Wheels Front Parts

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Replace your lawn mower's hex head tap screw if lost, stripped, or damaged. This small fastener secures components on mowers, tillers, and edgers.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This shift knob is a genuine MTD part, sold individually. A shift knob can be used as a replacement part in a lawn mower or a tiller. This genuine OEM part is made out of high quality, durable metal material that is built to last for the typical lifespan of the appliance.The shift knob in a lawn mower or a tiller might need to be replaced if it ceases to perform its central function for the appliance. This could occur if the shift knob has suffered damage from general wear and tear over long-term usage or as the result of a direct impact collision with a hard object, such as a rock or a curb.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This shift knob is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This spring clip is a genuine MTD replacement part for lawn tractors and lawnmowers. The function of a spring clip is to fasten individual components together by maintaining spring tension. This spring clip is a metal part that most commonly clips the frame of the lawnmower or tractor to the deck.A lawnmower or lawn tractor spring clip might have to be replaced if there is damage to the part that loosens the spring tension and releases the components that it is meant to clamp together. If the spring clip is damaged, it must be removed and replaced immediately, as all components of the lawnmower or lawn tractor must be held together to ensure safe appliance use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This spring clip is compatible with the following brands: MTD, Yard Man, Troy-Bilt, and Yard Machines. This part sold individually.

Extension spring for lawn tractors and riding mowers. Replace if stretched, broken, or causing poor engagement. Verify fit with your model number.

Shoulder spacer for lawn tractors and riding mowers. Maintains proper spacing between components during assembly. Replace if missing, damaged, or worn.

Replacement idler adjustment rod for lawn tractors and garden tractors. Replaces worn, bent, or broken rods. Installs in the drive system to control belt tension.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Double idler bracket assembly for lawn tractors and walk-behind mowers. Mounts idler pulleys to the deck. Replace if bracket is cracked, bent, or broken.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

Fastening screw for lawn tractors and mowers. Secures components together. Replace if stripped, missing, or damaged during maintenance or repairs.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

Extension spring for lawn tractors and riding mowers. Replace if stretched, broken, or causing poor engagement. Verify fit with your model number.

Replacement pedal pad for lawn tractor auto-drive system. Installs on foot pedal control. Needed when original pad is cracked, worn, or missing.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Flange bearing for lawn tractors and riding mowers. Replace if wheels wobble, make noise, or don't spin freely. Verify fit with your model number.

Flange nut with integrated hub for lawn tractors and riding mowers. Replaces worn, stripped, or missing hardware on mower decks and assemblies.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Hex screw for lawn mowers, tractors, and snow blowers. Replaces worn, corroded, or missing screws on engines and housings. Identical fit for secure assembly.

Replacement wheel hub cap for lawn tractors and riding mowers. Covers and protects the wheel hub assembly. Replace if cracked, broken, or missing.

Wheel rim for lawn tractors and walk-behind mowers. Mounts between tire and axle. Replace if cracked, bent, corroded, or missing for proper wheel assembly.

This part is a replacement bearing cup. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken bearing cup in lawn tractors.The bearing cup is what houses the variable speed pulley bearings themselves and thus is essential to proper equipment functionality. This part will need to be replaced immediately if ineffective in any way. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this bearing cup, the appropriate owner's manual and equipment diagrams should be referred to. This bearing cup is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

Sealed ball bearing reduces friction between fixed parts and rotating shafts. Replace if you hear grinding noise or notice wheel wobble. Verify fit.

A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.
