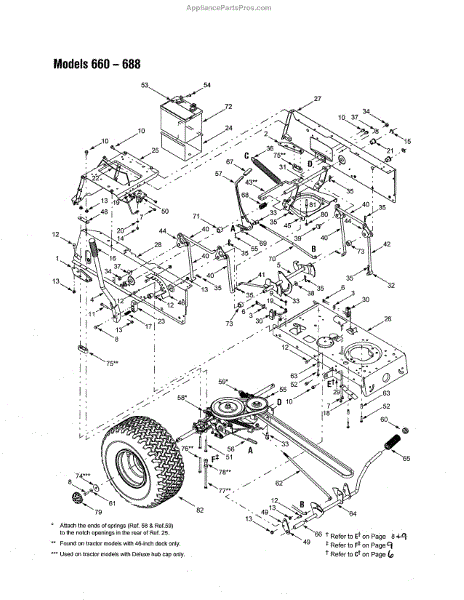

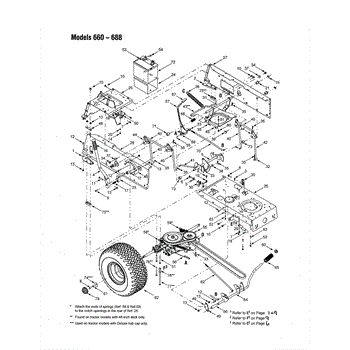

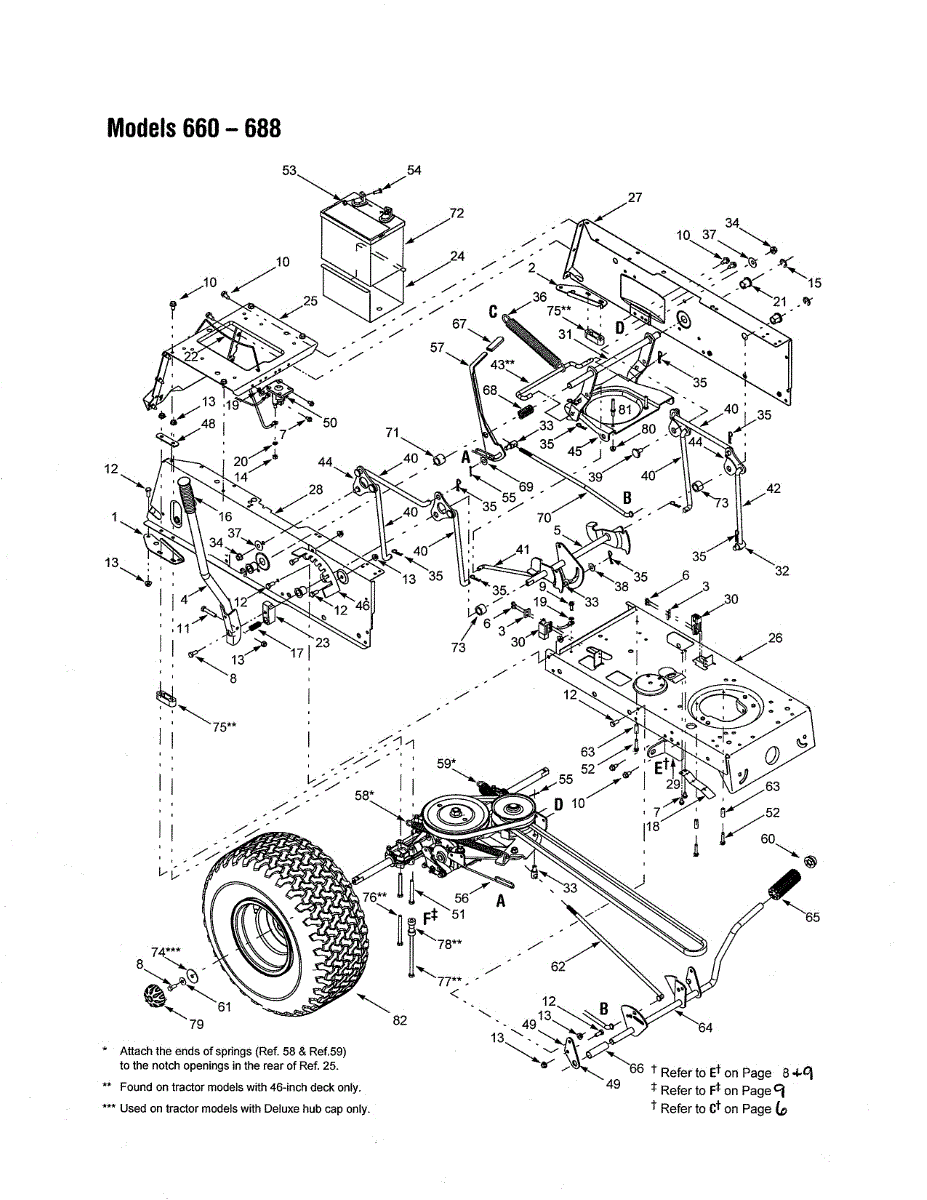

Parts for Mtd 13AF688G722: Drive Parts

Deck lift handle assembly for lawn tractors. Installs on the mower body to control cutting deck height adjustment. Replace if handle is cracked or broken.

This replacement part is a shaft assembly. It is a genuine replacement part made by MTD. This part is responsible for helping the user control the gears and other functions in the machine.A new shaft assembly might be needed if the user notices that the current part is damaged in any way. If the shaft assembly is dented, cracked, or chipped, it might be a good idea to replace this part. If the user is unable to operate this part they might be unable to control the different gears in the machine. If this is the case it will not operate effectively. Be sure the engine is completely powered down before replacing this part. This shaft assembly is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

E-ring retaining clip for lawn tractors and riding mowers. Secures components on shafts and axles. Replace when missing, bent, or worn for proper fit.

Flange bearing restricts movement and prevents shifting in lawn tractor components. Replace if you notice wobbling or unusual noise. Verify fit with your model.

Secures the battery in place on your lawn tractor. Replace this hold down rod if it's bent, corroded, or missing to keep your battery stable during operation.

Replacement battery tray for lawn tractors. Secures the battery in place. Replace if cracked, dented, warped, or corroded to safely hold your battery.

Fix a riding mower that won't start or stay running with this screw-mount switch. Direct replacement part for lawn tractors and riding mowers.

This is a ferrule that can be used as a replacement part for repairing or adjusting compatible mowers. A ferrule is a fastener that can be used to join two pieces together and is typically connected with a cotter pin. It can be found in latch assemblies and variable speed pulley brackets. It is not to be confused with wire ferrules that are crimp wires.If this part becomes damaged or corroded, it should be replaced. The replacement process is simple. Wear gloves for safety. Make sure that the mower is off and cool before starting a replacement.The ferrule is for use with some models of mowers from MTD, Ryobi, Yard-Man, Troy-Bilt, Husky, Bolens, and Yard Machines. The piece is sold individually and is a genuine OEM replacement part.

Replace a worn, cracked, or missing ferrule on your lawn tractor. This small structural component ensures proper cable or wire installation and fit.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

Secures moving parts and linkages on lawn mowers and tractors. Replace if bent, missing, or corroded to maintain safe equipment operation.

Replacement extension spring for lawn tractors. Holds components in place while allowing movement. Replace if spring loses tension, breaks, or stretches out.

Replacement rear stabilizer rod for lawn tractors. Mounts to the rear of the mower frame to maintain structural stability during operation. Needed when cracked or bent.

Deck stabilizer bracket for lawn tractors. Mounts to the mower deck to provide stability and support. Replace if bent, cracked, or broken.

Deck lift index bracket for lawn tractors. Attaches to the upper frame to enable deck height adjustment. Replace if cracked, broken, or missing.

Shift lever mounting bracket for lawn tractors. Secures the gear shift lever to the frame. Replace if cracked, bent, or broken to restore proper shifter support.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

Replacement extension spring for lawn tractor linkage and control systems. Needed when original spring is stretched, broken, or missing. Restores tension.

Zinc-plated extension spring for lawn tractor linkage and control systems. Replace if stretched, broken, or corroded to restore proper tension and operation.

Extension spring for lawn tractors. Installs in various linkage and control systems. Replace if stretched, broken, or missing to restore proper tension.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Replacement foot pedal pad for lawn tractors and riding mowers. Installs on control pedals. Needed when original pad is worn, cracked, or missing.

Replacement grip shift handle for lawn tractors. Mounts on control panel for seated gear shifting. Replace if cracked, broken, or grip worn smooth.

Battery does NOT contain battery acid

Battery does NOT contain battery acid

Replacement wheel hub cap for lawn tractors and riding mowers. Covers and protects the wheel hub assembly. Replace if cracked, broken, or missing.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

Belt guard pin secures the protective cover over drive belts on lawn tractors and mowers. Replace if bent, broken, or missing to maintain safe operation.

Wheel rim for lawn tractors and walk-behind mowers. Mounts between tire and axle. Replace if cracked, bent, corroded, or missing for proper wheel assembly.

Tubeless air valve for lawn tractor and mower tires. Replace when cracked, leaking, or damaged during tire changes. Installs in wheel rim for proper inflation.
