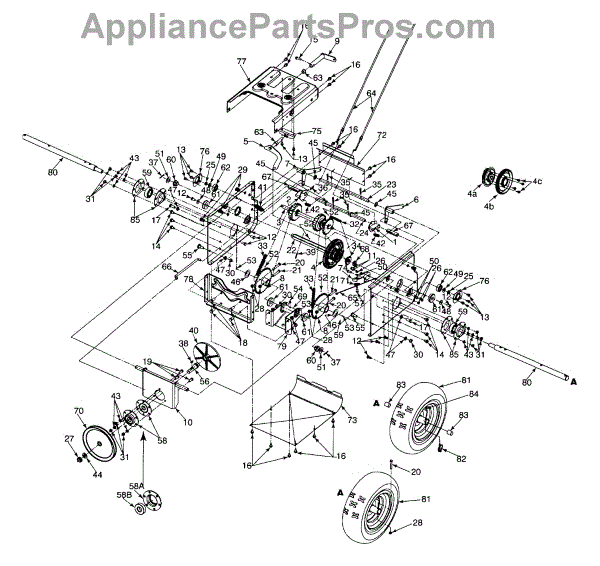

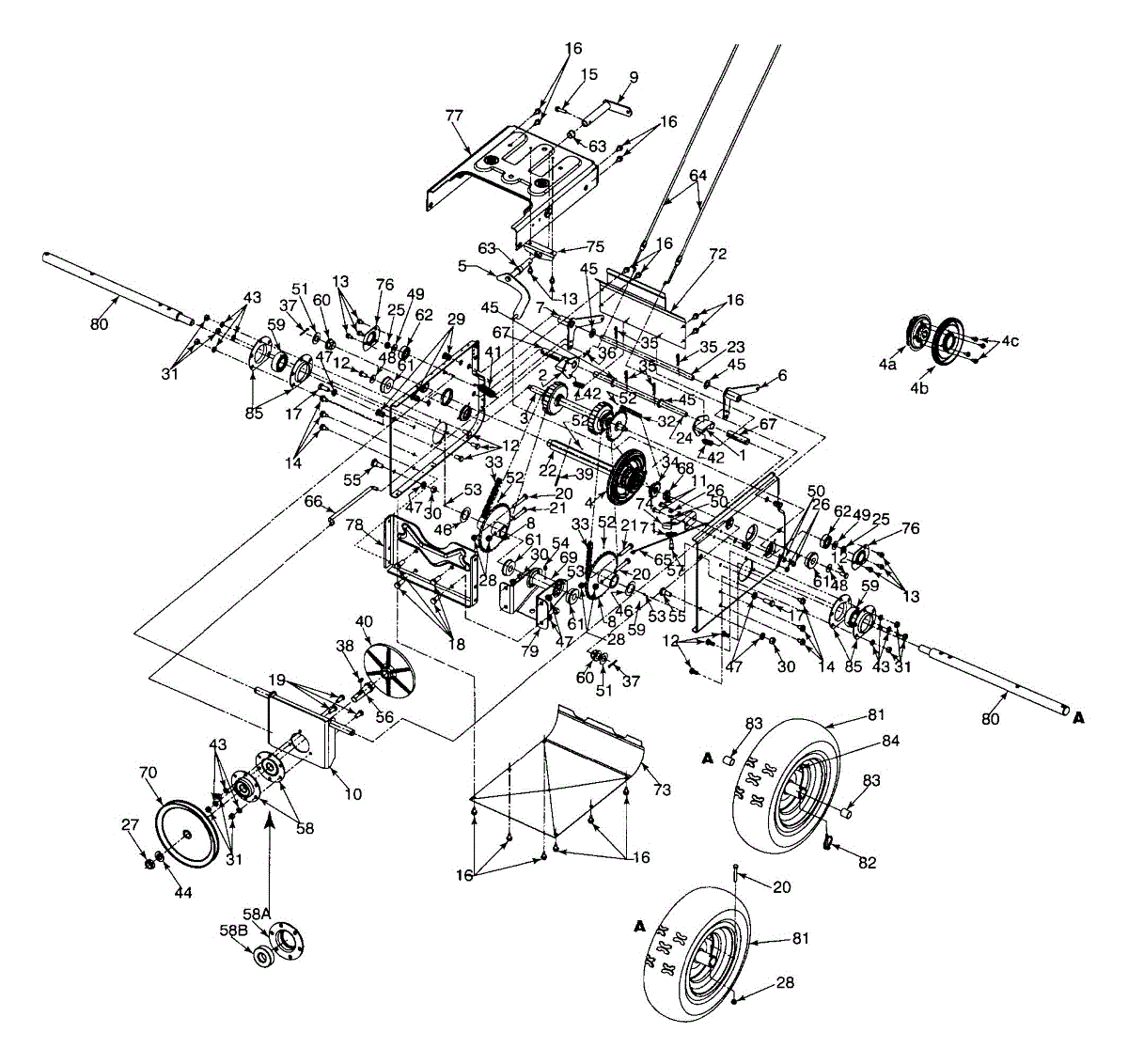

Parts for Yard-Man 31AE9P3I801 / 2005: Drive Parts

Hex washer screw for lawn mowers, tractors, and snow blowers. Replaces stripped, missing, or damaged screws on deck panels and housing assemblies.

Hex head screw for lawn tractors and outdoor power equipment. Replaces lost, stripped, or damaged hardware. 5/16-18 thread size for secure assembly.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

Hex washer screw for lawn mowers, tractors, and snow blowers. Replaces stripped, missing, or damaged screws on deck panels and housing assemblies.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

Hex nut for securing components on outdoor power equipment. Replace when threads are stripped, nut is corroded, or hardware is missing or damaged.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

Retaining ring for gas snowblowers. Secures components on shafts and axles. Replace if ring is damaged, bent, missing, or no longer holds parts firmly.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

Drive plate spindle for snow blowers. Mounts between the auger housing and drive system. Replace if cracked, stripped, or damaged to restore proper fit.

Housing bearing for lawn mowers and outdoor power equipment. Replace when you hear grinding noise or feel resistance during operation. Verify fit.

This drive pulley is a genuine MTD part, sold individually. This drive pulley can be used as a replacement part in a snowblower or an edger. This part is used in conjunction with the drive belt to move the appliance.The drive pulley in a snowblower or an edger might have to be ordered as a complete replacement part in a drive pulley that can no longer generate rotation in the wheels of the appliance. This could occur if the drive pulley has suffered damage from general wear and tear with long-term use or as the result of a collision with a hard object such as a rock or a curb.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This drive pulley is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, Montgomery Wards, Yard Man, and MasterCut.

The roller cable guide is designed for use with lawnmowers. It supports and guides cables to the lasher in the mower.This roller cable guide is a genuine OEM part sourced directly from the manufacturer and is sold individually. This roller cable guide is compatible with the following brands: Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.
