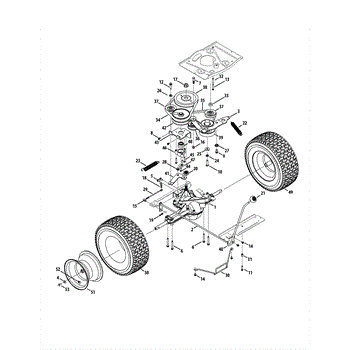

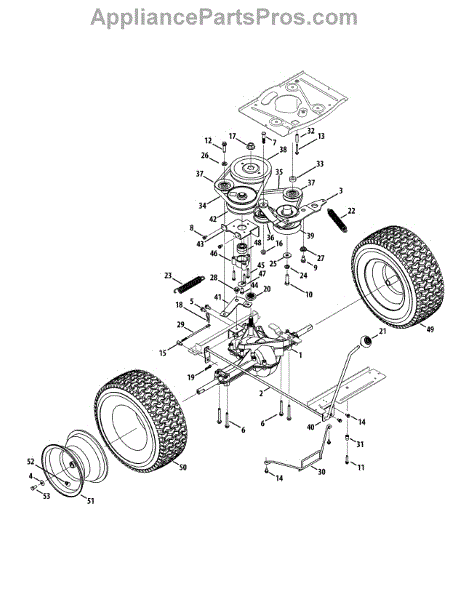

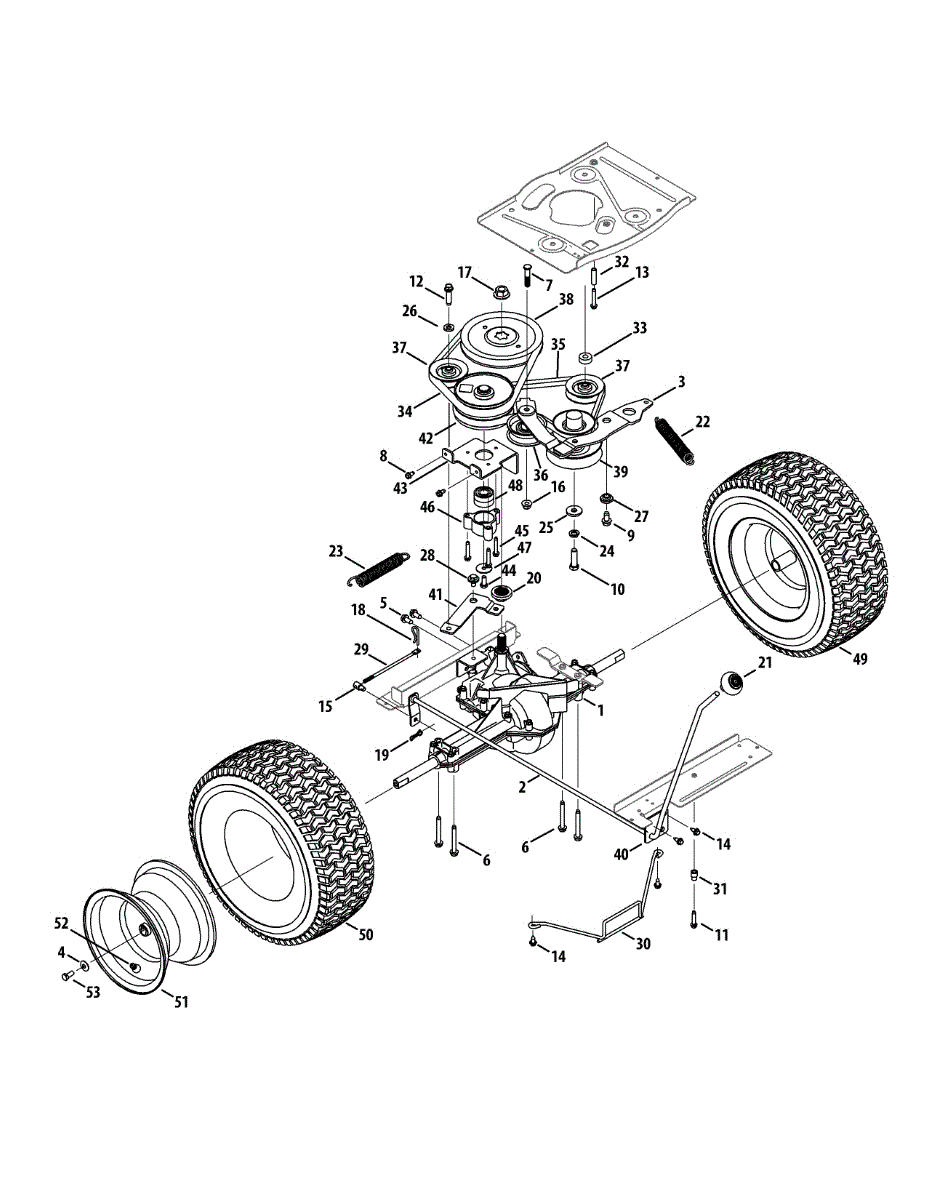

Parts for Yard Machines 13A226JD000 / 2012: Drive System Parts

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

The Hex Head Self-Tapping Screw is an OEM part for MTD outdoor power equipment. This screw is designed to securely fasten components of your equipment, providing reliable and durable connections. The thread size is 5/16 inches for major diameter, with 18 threads. The screw is 3/4 inches long and has a hexagonal or six-sided head.

Over time, the Hex Head Self-Tapping Screw can become damaged due to corrosion, stripping of the threads, or wear from frequent tightening and loosening. This can compromise the integrity of the connections and potentially lead to equipment malfunction.

Symptoms of a bad Hex Head Self-Tapping Screw include:

• Loose or wobbly components
• Difficulty tightening or loosening the screw
• Visible damage or corrosion on the screw

This OEM replacement part is designed for use with various models of MTD outdoor power equipment.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This replacement part is a hex screw. This part is small but important in many different kinds of machinery. Screws secure components within the equipment.Over time, screws can become stripped or corroded, causing them to break or get stuck in place. Excessive vibration during the use could also eventually lead to a screw coming loose and being lost.This is a genuine OEM replacement part manufactured by MTD. This part is sold individually.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This tap hex screw is a genuine MTD part, sold individually. A tap hex screw can be used as a replacement part for outdoor appliances including lawn mowers, tillers, and edgers. This is a small fastener.The tap hex screw for one of these outdoor appliances might be subject to damage or to a loss or misplacement that can necessitate the full replacement of the screw. Refer to the manual for detailed instructions.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This tap hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

This durable metal screw is designed to be used on many types of lawn and garden equipment, such as lawnmowers and snowblowers. The screw can be used to attach different components together so they stay stable and connected to ensure the equipment works correctly. It can be used on a variety of materials including metal, plastic, bricks, and wood. If the screw needs to be replaced, a visual inspection will indicate that. Screws often become damaged over time or can even break. Some screws also become stripped and no longer do what they are intended for. A hex wrench can be used to remove this screw from the machine so the new one can be installed. After installing the replacement screw, it should be tightened to ensure the materials it brings together are kept flush.This screw is made for use with lawnmowers, snowblowers, chipper shredders, and lawn tractors manufactured by MTD, Yard Machines, Yard-Man, and Troy-Bilt. It is sold as an individual part. This is an authentic OEM replacement part that is sourced directly from the manufacturer. A hex wrench may be needed for the replacement.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

A cotter pin, also known as a hitch pin, is used to secure pins and shafts in place. Meant for snowblowers, riding lawnmowers, and lawn tractors, this bow-tie shaped cotter pin has a double-end design making it easy to pull or push through either side of a pre-drilled hole. This pin snaps into a locked position without tension, keeping it secure during operation. Designed for lawn and garden maintenance equipment, this part ensures secure fastening. If the power equipment is used frequently, cotter pins may have to be replaced regularly so it would be practical to keep extra bow tie cotter pins on hand. It is highly recommended that work gloves be worn during the installation of this part. This part is compatible with Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut brands of lawn mower, snowblower, and log splitters. This is a genuine OEM replacement part that is sold individually.

This shift knob is a genuine MTD part, sold individually. A shift knob can be used as a replacement part in a lawn mower or a tiller. This genuine OEM part is made out of high quality, durable metal material that is built to last for the typical lifespan of the appliance.The shift knob in a lawn mower or a tiller might need to be replaced if it ceases to perform its central function for the appliance. This could occur if the shift knob has suffered damage from general wear and tear over long-term usage or as the result of a direct impact collision with a hard object, such as a rock or a curb.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This shift knob is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or lost flat washer in outdoor power equipment.Flat washers are a standard piece of hardware that can be used on many types of equipment. They enable screws or bolts to tightly fix components together by providing a larger bearing surface. Lost or defective washers should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular flat washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This flat washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This is a replacement V-belt. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a snapped, worn, or otherwise damaged V-belt on a variety of different lawnmower models. This is a 5L belt.The belt fixes directly to the flat idler and engine pulleys. This allows a balanced amount of force to be efficiently supplied to the engine. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. Proper tools are required to replace this part, including a wrench. For more accurate information on how and where to install this V-belt, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this V-belt is suitable for use on several different lawnmower models manufactured by Craftsman, Yard Machines, MTD, and Troy-Bilt. This is a genuine part made of high-quality, durable rubber and is sold individually.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

This is a variable speed pulley, designed as a genuine replacement part for use in select lawn tractors and riding mowers. The variable speed drive pulley is designed to control the drive belt, in combination with the throttle and choke, to help control the engine speed and provide the right level of movement during the mowing process. The pulley is subject to repetitive motion and constant stress, which can cause it to wear. It can become bent or damage from impact, as well. A damaged or broken pulley will cause the engine to malfunction or not work at all, rendering the tractor useless until it is replaced. Using a genuine OEM replacement like this model is essential. This specific drive pulley fits select models from Craftsman, Cub Cadet, Troy-Bilt, and Murray. It is sold as an individual unit. Be sure to disconnect the spark plug before working on the engine. Allow the engine to cool completely and wear gloves for safety. Several tools will be required for this job, including flathead and Phillips screwdrivers as well as a socket or wrench set.

The hex screw is a specialty screw that has various uses on lawn and garden equipment engines and housings. Over time, screws are known to become worn, corroded, lost, or otherwise damaged. This is an identical replacement that will have many locations and applications, but when it becomes damaged or gets lost it should be replaced as soon as possible. This is a specialty screw that is not designed for general use. Refer to parts diagrams for the appropriate location and installation of this screw for a guaranteed fit. This OEM hex screw is manufactured to exact standards and can be used in more than 150 different brands of machines. It is compatible with snow throwers, lawn mowers, and blowers from RYOBI, Yard Machines, Yard Man, Poulan, Troy-Bilt, MTD, Bolens, Cub Cadet, and Husky. This high-quality hex screw is made of metal and sold as an individual unit. Those who need more than one screw will have to purchase multiple quantities. A wrench is required to replace this screw. Always allow engines to cool completely before performing any repairs and wear gloves for hand protection.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This specific type of screw is most commonly found in different types of machinery and appliances. Screws are able to keep parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal wear and tear. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required in addition to a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This bearing cup is a genuine MTD part, sold individually. This bearing cup can be used as a replacement part in a lawn mower. The purpose of the bearing cup in a lawn mower is to work in conjunction with a cone to provide stability in a bearing so that the machinery can withstand radial and axial load during the operation of the appliance.The bearing cup in a lawn mower might have to be replaced if the component exhibits signs of damage. If the bearing cup has been compromised in the form of puncturing, scraping, denting, cracking, warping, or eroding at some point within the lifespan of the lawn mower, the component should be removed and replaced by this genuine OEM replacement part in order to ensure proper functionality and safe use of the appliance as a whole.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This bearing cup is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Yard Man, Huskee, Bolens, and MasterCut.

A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.

The sealed ball bearings are used as a means to limit the amount of friction that occurs between a fixed part of the assembly and a rotating shaft. They can be used for numerous applications in lawn and garden equipment. The ball bearings are used in various locations of different types of machines, so the issues that could crop up will vary. Typically, bad ball bearings will create knocking sounds in the engine, or parts in the engine could be difficult to turn. When the ball bearings are no longer sealed or not functioning properly, they should be replaced. This genuine OEM replacement ball bearing is sold individually. The ball bearing works with many models of lawn mowers, snowblowers, edgers, wood chippers, and tillers. Compatible brands include Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. Buyers should always ensure they are buying the correct parts for their make and model.

This complete wheel assembly is a genuine MTD part, sold individually. This complete wheel assembly can be used as a replacement part in a lawnmower. The purpose of the complete wheel assembly in a lawnmower is to provide the means by which the lawnmower steers across a variety of surfaces while in use by way of the wheels being rotated by the spindle assembly.If the wheel is punctured, cracked, dented, pierced, torn, ripped, scraped, warped, or eroded to the point of reduced or no functionality, the complete wheel assembly should be removed and replaced by this genuine OEM replacement part. Always unplug the appliance before performing any kind of repair or replacement.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This complete wheel assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, and Yard Machines.

This tire is a genuine MTD part, sold individually. This tire can be used as a replacement part in a lawn mower.The tire in a lawn mower might have to be replaced if the component is dented, punctured, torn, ripped, scraped, or otherwise damaged beyond repair. If this occurs, the tire should be removed and replaced by this genuine OEM replacement part in accordance with the proper instructions from a relevant appliance manual. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This tire is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, Troy-Bilt, and Murray.

This tubeless air valve attaches to wheels, allowing air into and out of the tires on various lawn equipment. Regularly replacing this part is considered a part of routine maintenance. Make sure that you use appropriate pliers and other tools for easy installation. Be sure to use gloves when replacing these valves and work with caution so as not to damage the sensitive parts. This OEM tubeless air valve can be the perfect fit for compatible wheels on equipment such as lawn mowers, snowblowers, tillers, edgers, log splitters, and wood chippers. It is designed for use with select models from MTD, including Craftsman, Troy-Bilt, Bolens, Remington, Yardman, RYOBI, Husky, Power Pro, and many others. There is a limited parts warranty on this valve, which is made of durable rubber and metal and designed to offer a high-quality replacement. Sold individually.

The hex screw is a specialty screw that has various uses on lawn and garden equipment engines and housings. Over time, screws are known to become worn, corroded, lost, or otherwise damaged. This is an identical replacement that will have many locations and applications, but when it becomes damaged or gets lost it should be replaced as soon as possible. This is a specialty screw that is not designed for general use. Refer to parts diagrams for the appropriate location and installation of this screw for a guaranteed fit. This OEM hex screw is manufactured to exact standards and can be used in more than 150 different brands of machines. It is compatible with snow throwers, lawn mowers, and blowers from RYOBI, Yard Machines, Yard Man, Poulan, Troy-Bilt, MTD, Bolens, Cub Cadet, and Husky. This high-quality hex screw is made of metal and sold as an individual unit. Those who need more than one screw will have to purchase multiple quantities. A wrench is required to replace this screw. Always allow engines to cool completely before performing any repairs and wear gloves for hand protection.
