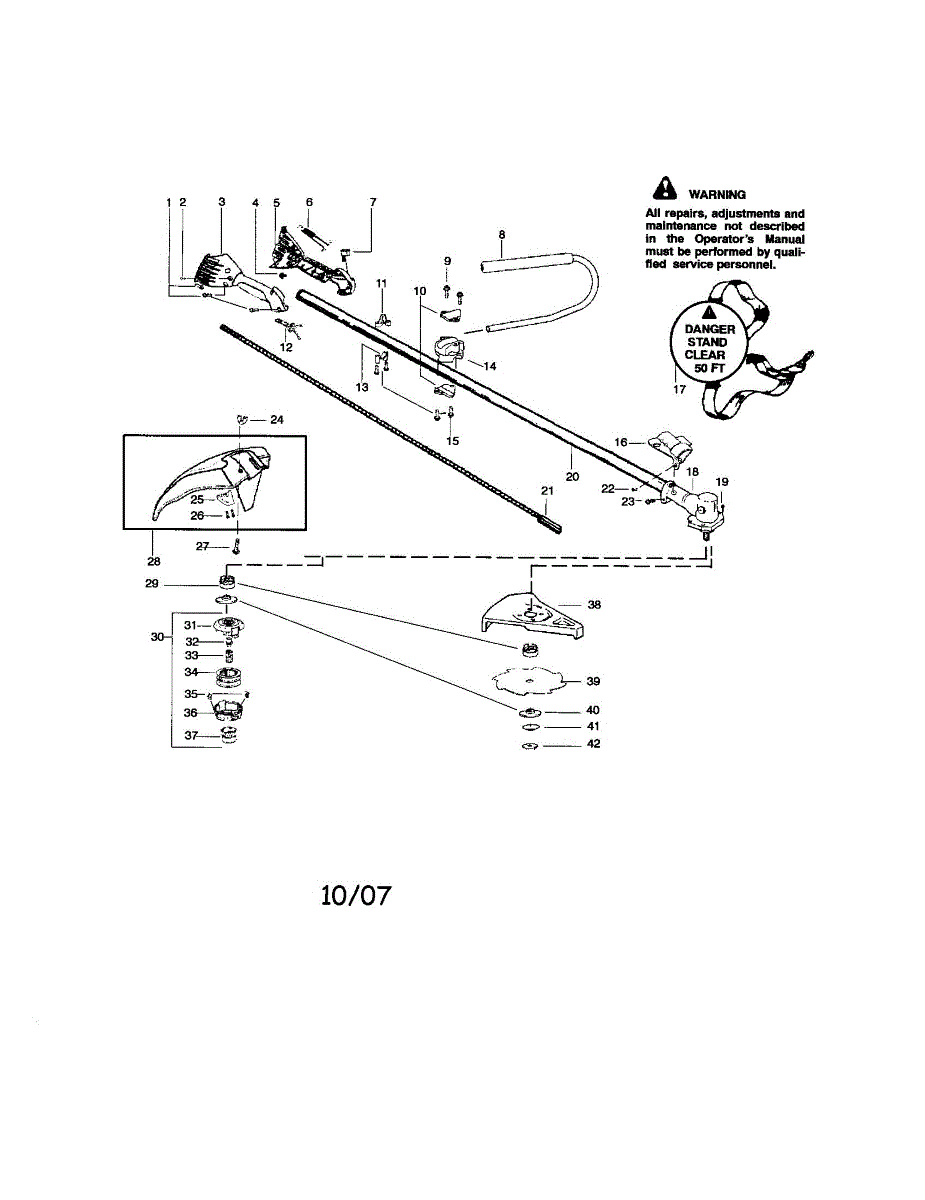

Parts for Craftsman 358795811: Driveshaft / Handle / Shield Parts

All gasoline-powered trimmers must have throttle controls that increase the amount of gasoline flowing into the carburetor. As the amount of fuel increases and the engine revolutions increase, the clutch engages the spool and the trimming line begins to turn. The throttle trigger assembly is quite durable. However, it has several appendages and is required to be under constant pressure when in use. If any of the design parts fail, the trigger unit must be replaced or the trimmer cannot be used. To replace the throttle trigger, open the housing and disconnect the throttle cable from the old trigger. It's easy to see where the new trigger will fit in the housing because the screw holes will line up perfectly with the holes in the new throttle trigger. The throttle cable will fit into one slot on the new trigger and a spring opposite the slot will hold the trigger unit at the proper angle as the housing is replaced. This new throttle trigger is an OEM replacement part, made to the same exacting specification as the original. This throttle control is designed by Craftsman and used on most of their trimmers. It is also compatible with a few other manufacturers' trimmers, including Poulan and Husqvarna.

This shield bracket is a genuine Husqvarna part, sold individually. This shield bracket can be used as a replacement part in a string trimmer. The purpose of a shield bracket in a string trimmer is to secure the shield so that flung debris can be safely kept away from the operator during use.The shield bracket in a string trimmer might eventually have to be replaced if it can no longer hold the shield firmly in place while the appliance is being operated. The shield bracket could be dented, punctured, scraped, warped, or eroded to the point that it cannot hold anything in place, and if this occurs, the shield bracket should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This shield bracket is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Poulan, and Poulan Pro.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part in string trimmers, edgers, chainsaws, and pole pruners.The screw in a small engine outdoor appliance might eventually have to be replaced in the case that the screw is lost, misplaced, or damaged from general wear and tear with long-term use. If the screw is lost or misplaced and its absence is noted by the operator, the screw should be replaced by this genuine OEM replacement part as soon as possible. If the screw is dented, cracked, punctured, or otherwise damaged, it should be replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Husqvarna, Weed Eater, Poulan, and Poulan Pro.

This part is a trimmer head, which is a component of a lawn and garden power trimmer. The trimmer head attaches to the driveshaft and also houses the string which acts as a cutting line.A new trimmer head may be needed if the original is cracked, broken, or damaged in any way. Damage is most likely caused by direct and forceful impact with a hard object or surface. Because of the nature and use of a trimmer, this component may need to be replaced after wear and tear over a period of time. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This trimmer head is a genuine Husqvarna part. It is sold individually. This particular trimmer head is compatible with lawn and garden power trimmers that are manufactured by the Husqvarna brand.

This part is a replacement spring. This is a genuine OEM part made by Husqvarna and has been sourced directly from the manufacturer. If the current spring is broken or defective, this part can be used as a replacement. It is intended for use with trimmers.The spring works by applying tension to the head of the trimmer. Over time and with regular use, springs can easily break or become eroded, requiring replacement. When working on or near an engine or blades, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this spring, the appropriate owner's manual and equipment diagrams should be referenced. This spring is suitable for use on a variety of trimmer models manufactured by Husqvarna and Poulan. It is a genuine OEM part and thus is made of high-quality, durable metal. Part sold individually.

This is the outer cover for a string trimmer housing. It clips into the bottom of the reel and secures it in place behind the central button. It’s constructed from a rubberized black plastic. This plastic is designed to be as durable as possible, while also flexing slightly when it’s under pressure. The cover serves two primary functions. It holds the reel in place and also acts as a mounting point for the central button. While it’s quite durable, it may eventually wear out due to regular use. A few scratches aren’t going to put a cover out of commission, but look for areas where the plastic has been worn through all the way. Replacing the cover is easy. Simply squeeze the old cover and pop it off the assembly. Position the new cover over the reel, then snap it into place. This cover is used primarily on Husqvarna string trimmers but is also used on some Poulan and Craftsman models. This is an OEM part sourced directly from Husqvarna, and it is sold individually.

This is the outer cover for a string trimmer housing. It clips into the bottom of the reel and secures it in place behind the central button. It’s constructed from a rubberized black plastic. This plastic is designed to be as durable as possible, while also flexing slightly when it’s under pressure. The cover serves two primary functions. It holds the reel in place and also acts as a mounting point for the central button. While it’s quite durable, it may eventually wear out due to regular use. A few scratches aren’t going to put a cover out of commission, but look for areas where the plastic has been worn through all the way. Replacing the cover is easy. Simply squeeze the old cover and pop it off the assembly. Position the new cover over the reel, then snap it into place. This cover is used primarily on Husqvarna string trimmers but is also used on some Poulan and Craftsman models. This is an OEM part sourced directly from Husqvarna, and it is sold individually.

This is a replacement knob for a trimmer. The plastic bump knob, which is connected to a spring, is used to secure the spool. A bump knob on a trimmer may get stuck or seized and will need a replacement. Before replacing the bump knob, remove the wire from the spark plug to avoid the accidental starting of the engine. Pull off the trimmer head housing and then use a flat head screwdriver to detach the old knob. Rotate it and then remove the component. Make sure the spring is in place then align the knob before rotating and snapping it in place. Take note that pulling the knob off may take extreme force when pulling. Some knobs are screw-mounted and a counterclockwise turn is necessary to unscrew it. This genuine OEM replacement part is sold individually and is compatible with specific trimmer models from Poulan and Weed Eater.

This part is a replacement washer. This is a genuine OEM part made by Husqvarna and has been sourced directly from the manufacturer. This part can be used to replace a broken or misplaced washer in a variety of outdoor power equipment, although it is primarily intended for use with line trimmers. Washers provide a better bearing surface for a screw or bolt. Over time, washers can easily become corroded, broken, or misplaced, requiring replacement. It's important when working on or near any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this washer, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this washer is suitable for use on several models of line trimmers and other outdoor power equipment manufactured by Husqvarna, Poulan, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.
