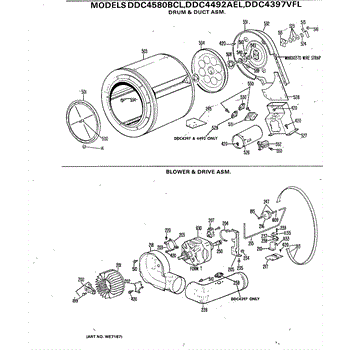

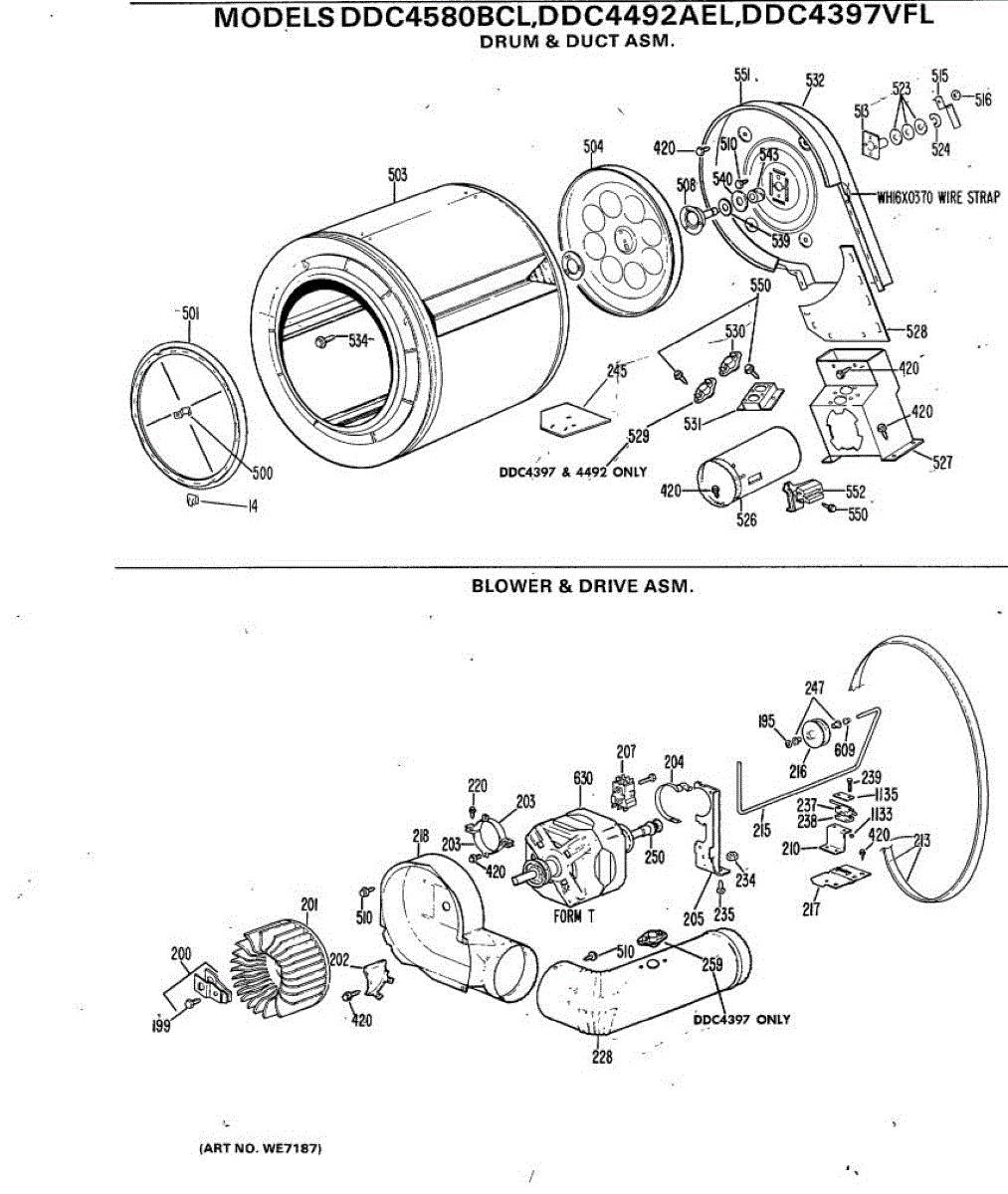

Parts for Ge DDC4580BCL: 03 - Drum & Duct Asm. Parts

Size: 14-10 a.

The GE clamp and screw kit is an OEM replacement part responsible for securing the dryer blower wheel in place. This kit consists of two clamps and a screw, designed to ensure the blower wheel remains firmly attached to the motor shaft. The clamp maintains the blower wheel's stability and prevents it from coming loose during the drying process. The blower wheel creates the airflow necessary to circulate hot air and efficiently dry clothes.

Over time, clamps and screws can become loose or corroded due to regular use, vibrations, or exposure to moisture. Improper handling during maintenance or repairs can also lead to damage or loss of these small but essential parts.

Symptoms of a bad Clamp and Screw Kit include:

• Loose or rattling components within the dryer
• Parts becoming misaligned or detached
• Unusual noises during dryer operation
• Difficulty in securing dryer parts during repairs

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Blower Wheel is an OEM replacement part for GE dryers. It has a role in the air circulation within the dryer, aiding in the even and efficient drying of clothes. The blower wheel, connected to the motor, helps in expelling the moist air out of the dryer through the exhaust vent during the drying cycle.

Causes of a malfunctioning blower wheel are typically wear and tear from regular use, the accumulation of lint or debris, or damage to the wheel’s fins or central hub, which can impact its rotation and air circulation capability.

Symptoms of a bad Blower Wheel include:

• Unusual noises during operation
• Extended drying times
• The dryer overheating
• Reduced air circulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

The Dryer Drive Belt is an OEM part for GE dryers that connects the motor to the drum, allowing the drum to rotate during the drying cycle. The belt measures approximately 87 inches long and 0.25 inches wide, with 4 ribs.

Over time, the Dryer Drive Belt can wear out or break, leading to the drum not turning.

Symptoms of a bad Dryer Drive Belt include:

• The drum not spinning or rotating
• A squealing or thumping noise coming from the dryer
• The dryer stopping unexpectedly during a cycle

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This idler pulley keeps tension on the dryer drum belt so the motor can spin the drum smoothly. Replacing a worn pulley can quiet squealing and restore consistent tumbling.

• Maintains proper belt tension so the drum turns under load
• Free-spinning pulley reduces friction and belt wear
• Common symptoms of failure: squealing/chirping noises, drum won't turn, belt slipping or fraying, burning rubber smell
• Helps prevent the belt from jumping off the motor or drum

• Disconnect power; for gas dryers, shut off the gas supply
• Access typically requires removing the top/front panel and releasing belt tension to remove the drum
• Transfer any spacers/retainer from the old pulley to the new one; the pulley spins freely before reassembly
• Route the belt per the model's diagram and check belt alignment/tension before test run

This idler pulley keeps tension on the dryer drum belt so the motor can spin the drum smoothly. Replacing a worn pulley can quiet squealing and restore consistent tumbling.

• Maintains proper belt tension so the drum turns under load
• Free-spinning pulley reduces friction and belt wear
• Common symptoms of failure: squealing/chirping noises, drum won't turn, belt slipping or fraying, burning rubber smell
• Helps prevent the belt from jumping off the motor or drum

• Disconnect power; for gas dryers, shut off the gas supply
• Access typically requires removing the top/front panel and releasing belt tension to remove the drum
• Transfer any spacers/retainer from the old pulley to the new one; the pulley spins freely before reassembly
• Route the belt per the model's diagram and check belt alignment/tension before test run

This motor drive pulley guides the dryer drive belt and helps transfer motor power to the drum for proper rotation. Replacing a worn or damaged pulley restores smooth drum movement and reduces noise. What it does:

• Guides and supports the drive belt so the drum turns evenly
• Maintains belt alignment to prevent slipping or excessive wear
• Reduces squealing or grinding caused by a damaged pulley bearing
• Helps restore normal tumbling when the drum drags or hesitates

• One motor drive pulley

• Disconnect power to the appliance before any service; follow lockout/tagout best practices
• Inspect the drive belt and bearings while replacing the pulley; replace worn belt or bearings as needed
• Typical service requires basic hand tools and access to the dryer cabinet or motor housing

The Rear Drum Bearing Kit is an OEM replacement part for GE dryers. It is a comprehensive kit that includes both rear drum bearings and necessary mounting hardware. These bearings play a vital role in smoothly rotating the dryer drum during cycles, reducing vibrations and noise.

Symptoms of bad bearings include:

• Excessive shaking or vibrating during cycles
• Loud grinding or scraping noises emanating from the rear drum area
• Difficulty turning or rotating the dryer drum by hand
• Increased wear and early failure of other components

Causes of bad bearings can include normal wear and tear over time, exposure to excessive loads or unbalanced loads that strained the bearings, or damage from extended use without proper lubrication.

This OEM replacement is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

The Rear Drum Bearing Kit is an OEM replacement part for GE dryers. It is a comprehensive kit that includes both rear drum bearings and necessary mounting hardware. These bearings play a vital role in smoothly rotating the dryer drum during cycles, reducing vibrations and noise.

Symptoms of bad bearings include:

• Excessive shaking or vibrating during cycles
• Loud grinding or scraping noises emanating from the rear drum area
• Difficulty turning or rotating the dryer drum by hand
• Increased wear and early failure of other components

Causes of bad bearings can include normal wear and tear over time, exposure to excessive loads or unbalanced loads that strained the bearings, or damage from extended use without proper lubrication.

This OEM replacement is also compatible with Hotpoint, RCA, and some Kenmore models.

Bearing only, to get complete assembly order WE25M40

Size: 8-15 HX 3/8 S. Includes 12 screws.

The Flame Sensor is an OEM part for GE dryers. This part detects the presence of a flame in gas dryers, ensuring that the gas ignites properly for safe and efficient drying.

Causes of a bad flame sensor can include regular wear and tear, carbon buildup from the gas flame, or electrical malfunctions.

Symptoms of a bad flame sensor include:

• The dryer not heating or taking longer to dry clothes
• The dryer shutting off unexpectedly during a cycle
• The igniter glowing but not igniting the gas
• Error codes related to heating or ignition issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly
