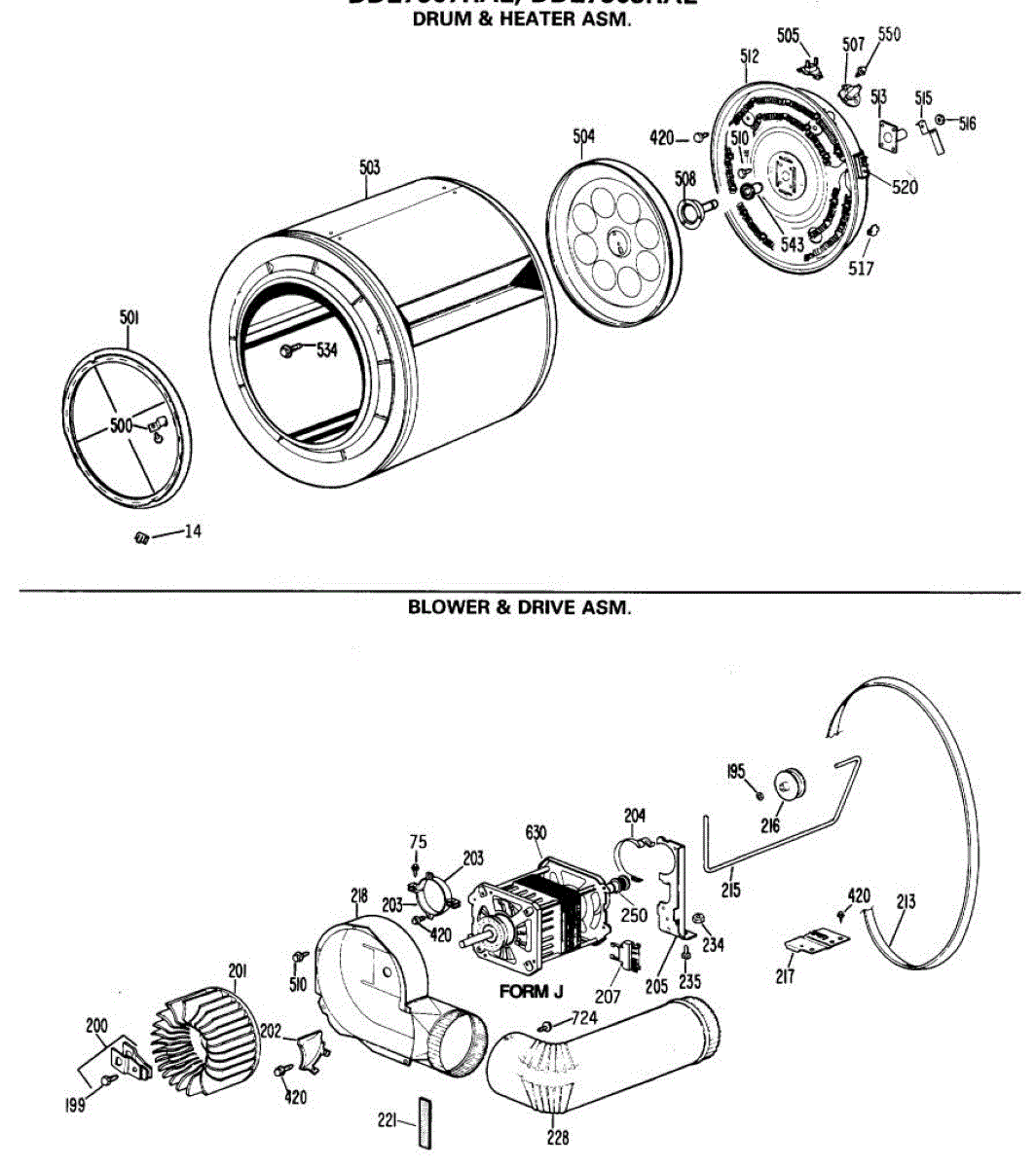

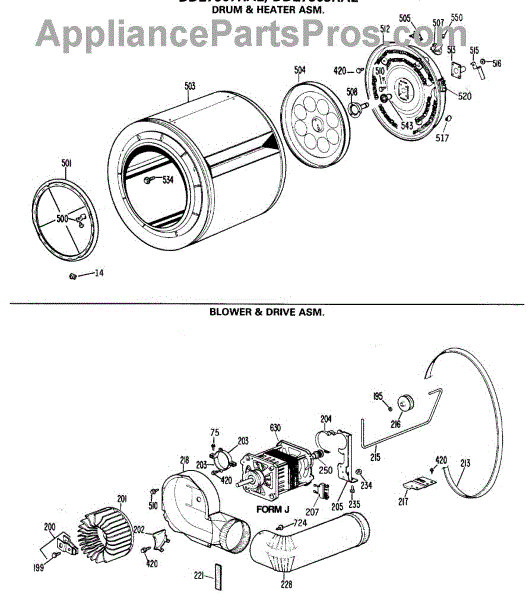

Parts for Ge DDE7906RAL: 04 - Drum & Heater Asm. Parts

Black. 8-18 AB HXW 3/8

Size: 14-10 a.

The GE clamp and screw kit is an OEM replacement part responsible for securing the dryer blower wheel in place. This kit consists of two clamps and a screw, designed to ensure the blower wheel remains firmly attached to the motor shaft. The clamp maintains the blower wheel's stability and prevents it from coming loose during the drying process. The blower wheel creates the airflow necessary to circulate hot air and efficiently dry clothes.

Over time, clamps and screws can become loose or corroded due to regular use, vibrations, or exposure to moisture. Improper handling during maintenance or repairs can also lead to damage or loss of these small but essential parts.

Symptoms of a bad Clamp and Screw Kit include:

• Loose or rattling components within the dryer
• Parts becoming misaligned or detached
• Unusual noises during dryer operation
• Difficulty in securing dryer parts during repairs

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

7" diameter

This replacement motor strap secures the dryer's drive motor to its mounting bracket so the motor and blower stay aligned and stable, helping reduce vibration and noise for smoother operation. What it does:

• Holds the drive motor firmly to the base/bracket
• Maintains proper alignment of the motor and blower wheel to prevent rubbing
• Helps reduce vibration, rattling, and related noise
• Typical signs of failure: increased vibration, rattling, scraping from the blower area, or a motor that feels loose inside the cabinet

• Includes 1 motor strap

• Disconnect power; for gas dryers, also shut off gas supply
• Access the motor assembly; note the strap's routing/orientation before removal
• Support the motor while releasing the strap to avoid stressing wiring and mounts
• After securing the strap, rotate the drum/blower by hand to verify free movement before reassembly

This motor strap secures the appliance motor to the cabinet, keeping the motor stable during operation to reduce vibration and noise. Use this replacement to restore proper motor positioning and support in compatible models. What it does:

• Holds the motor firmly in place to prevent movement or shifting during use
• Helps reduce vibration and associated noise caused by a loose motor
• Maintains correct motor alignment so belts and linkages run smoothly
• Commonly used when a worn or broken strap allows motor sag or misalignment

• One motor mounting/retaining strap

• Disconnect power to the appliance before beginning any work
• Inspect mounting points and fasteners; replace any damaged hardware as needed
• Secure strap to the motor and cabinet using the original mounting holes and recommended hardware

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly

The Dryer Drive Belt is an OEM part for GE dryers that connects the motor to the drum, allowing the drum to rotate during the drying cycle. The belt measures approximately 87 inches long and 0.25 inches wide, with 4 ribs.

Over time, the Dryer Drive Belt can wear out or break, leading to the drum not turning.

Symptoms of a bad Dryer Drive Belt include:

• The drum not spinning or rotating
• A squealing or thumping noise coming from the dryer
• The dryer stopping unexpectedly during a cycle

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Idler Pulley is an OEM part for GE dryers. This critical component helps to maintain the correct tension on the dryer's drive belt, ensuring smooth operation and preventing it from slipping.

Symptoms of a bad Idler Pulley include:

• Squeaking or screeching noises during dryer operation, often a sign of bearing wear or failure.
• The dryer drum not turning smoothly, or at all, indicating that the belt may be slipping or has come off entirely due to a failed pulley.
• Excessive heat or a burning smell, which can occur if the pulley is seizing up and causing friction.
• Visible wear or damage to the pulley itself.

Causes of a bad idler pulley can include worn bearings, accumulation of lint and debris that impedes rotation, or material fatigue after prolonged use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This motor drive pulley guides the dryer drive belt and helps transfer motor power to the drum for proper rotation. Replacing a worn or damaged pulley restores smooth drum movement and reduces noise. What it does:

• Guides and supports the drive belt so the drum turns evenly
• Maintains belt alignment to prevent slipping or excessive wear
• Reduces squealing or grinding caused by a damaged pulley bearing
• Helps restore normal tumbling when the drum drags or hesitates

• One motor drive pulley

• Disconnect power to the appliance before any service; follow lockout/tagout best practices
• Inspect the drive belt and bearings while replacing the pulley; replace worn belt or bearings as needed
• Typical service requires basic hand tools and access to the dryer cabinet or motor housing

This safety thermostat is a temperature-sensitive switch for dryers. It monitors internal heat and opens the circuit if temperatures climb too high, helping prevent overheating. Replacing a failed thermostat restores proper heat control and safe operation.

• Monitors dryer temperature and cuts power to the heater if the limit is exceeded
• Helps protect against overheating and heat-related shutdowns
• Common symptoms of a failed or tripped thermostat: no heat or intermittent heat, dryer running too hot, or cycles ending early due to overheating
• Overheating or repeated trips often indicate restricted airflow—inspect venting and lint paths

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the thermostat location per your model's service information
• Note wire positions and transfer them one at a time; mount the thermostat flush to its mating surface
• After installation, clear lint and verify proper airflow through the exhaust and vent

The High Limit Thermostat is an OEM part for GE dryers. It is a safety device that prevents the dryer from overheating by cutting off power to the heating element if the temperature exceeds a safe limit. This helps protect the dryer and the user from potential fire hazards.

Causes of a bad high limit thermostat can include electrical faults, repeated exposure to high temperatures, or wear and tear over time. When the thermostat fails, it may either keep the dryer from heating or cause it to overheat.

Symptoms of a bad high limit thermostat include:

• The dryer not heating at all
• The dryer overheating and shutting down mid-cycle
• Clothes taking longer than usual to dry
• The dryer running but not producing any heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Drum Bearing Kit is an OEM replacement part for GE dryers. It is a comprehensive kit that includes both rear drum bearings and necessary mounting hardware. These bearings play a vital role in smoothly rotating the dryer drum during cycles, reducing vibrations and noise.

Symptoms of bad bearings include:

• Excessive shaking or vibrating during cycles
• Loud grinding or scraping noises emanating from the rear drum area
• Difficulty turning or rotating the dryer drum by hand
• Increased wear and early failure of other components

Causes of bad bearings can include normal wear and tear over time, exposure to excessive loads or unbalanced loads that strained the bearings, or damage from extended use without proper lubrication.

This OEM replacement is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This 240V heater assembly replaces the electric heating element module in your dryer, restoring proper heat to the airflow. Replacing a failed element helps address no-heat complaints and improves overall drying performance. What it does:

• Generates heat by energizing the element at 240 volts to warm air moving through the drum
• Restores heat when the original element is open or shorted to the housing
• Helps with: drum runs but no heat, long dry times, cool exhaust air
• Element should show continuity across its terminals and no continuity to chassis when tested

• 1 heater assembly

• Disconnect power before servicing; allow the unit to cool
• Access the heater housing from the rear or front, depending on model; photograph wiring for reference
• Move wires one at a time; reuse mounting screws; transfer any thermostats mounted on the old housing if present
• After reassembly, ensure the exhaust vent is clear to prevent overheating and repeat failures

Bearing only, to get complete assembly order WE25M40

Size: 8-15 HX 3/8 S. Includes 12 screws.

This dryer motor kit powers the drum and blower. Replacing a weak or failed motor restores proper tumbling and airflow so the dryer starts reliably and dries loads more evenly.

• Drives the drum via the belt and turns the blower wheel for airflow
• Helps resolve: dryer hums but won't start, drum won't turn, or stops mid-cycle
• Can reduce loud buzzing/grinding noises from the motor area
• Restores consistent operation when the motor overheats and trips its protector

• Disconnect power; turn off gas supply to gas dryers before servicing
• Remove panels to access the drive system; release belt tension and remove the drum as needed
• The blower wheel threads onto the motor shaft—support it carefully; many GE dryers use a reverse (left-hand) thread
• Transfer wiring and any reusable hardware to the new motor; test before reassembly
