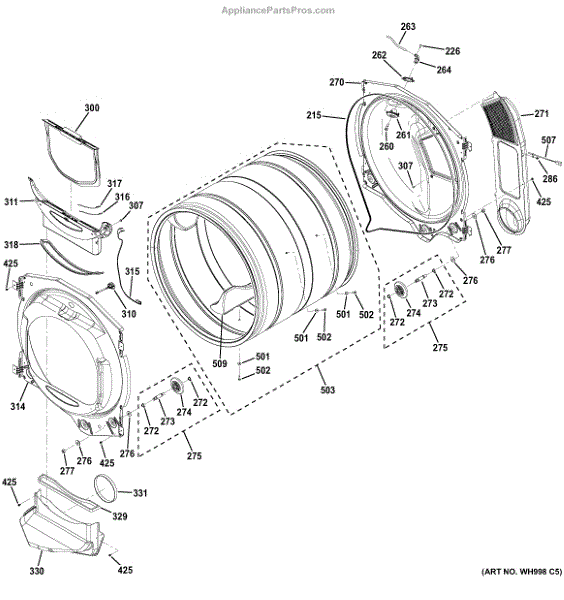

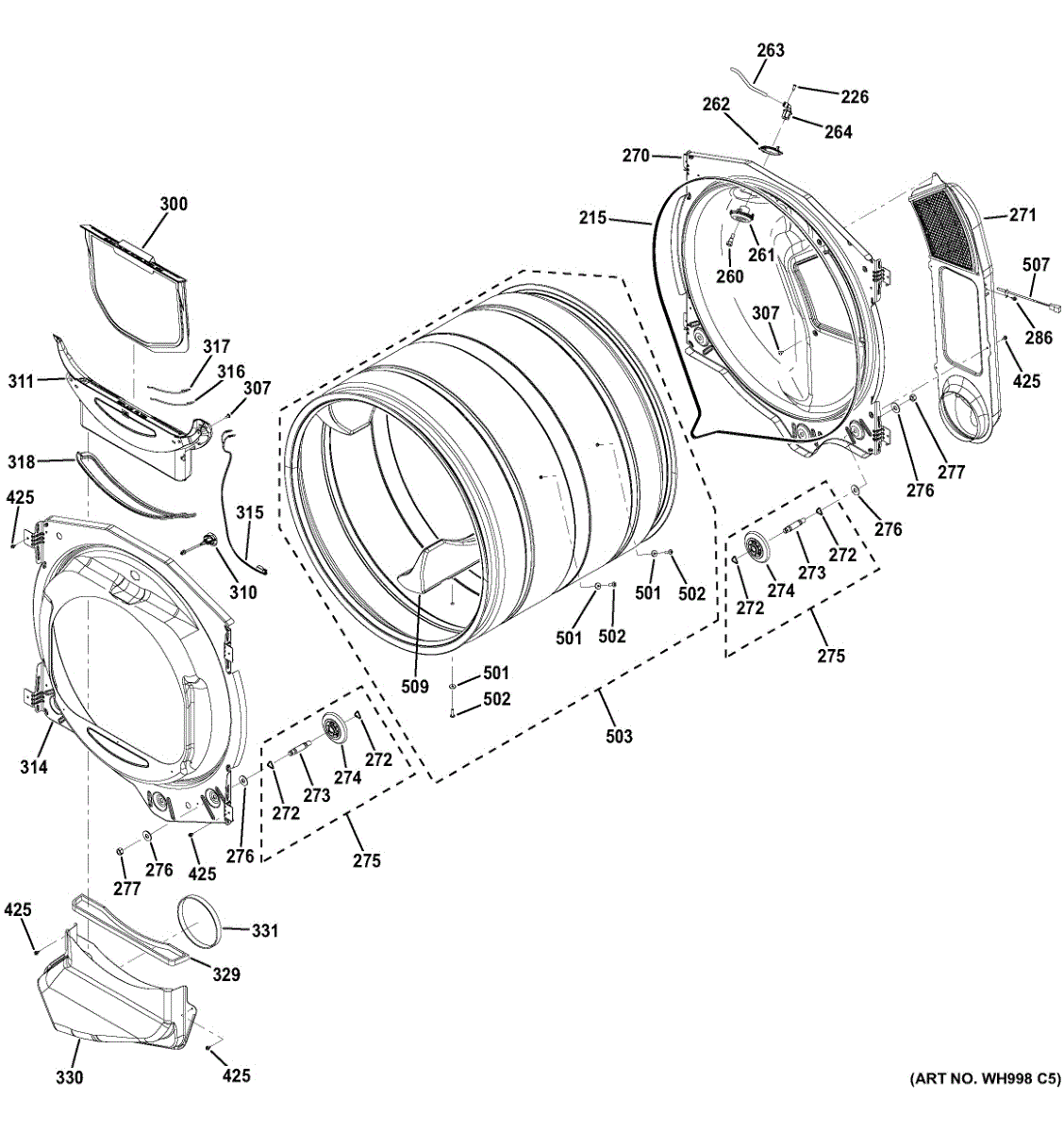

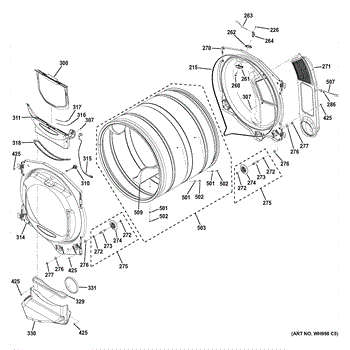

Parts for Ge GHDS365GF1RR: Drum Parts

This dryer drive belt wraps around the drum and motor pulley to rotate the drum during cycles. Replacing a stretched or broken belt restores consistent tumbling for even drying and prevents unnecessary strain on the motor.

• Transfers motor rotation to the drum for proper tumbling
• Worn or broken belts can cause the drum not to turn
• Present squealing, thumping, or a burning rubber smell
• Visible cracks, fraying, or a snapped belt are common failure signs

• Disconnect power; for gas dryers, also shut off the gas supply
• Access belt by removing the top/front panels per your model's service instructions
• Route the belt around the drum, motor pulley, and idler per the cabinet diagram; the drum spins freely by hand
• Inspect idler pulley and drum rollers while open; replace worn components as needed

Size: 8-18 b.

The Steam Nozzle Dryer is an OEM replacement part for GE dryers. This nozzle plays an important role in properly distributing steam throughout the dryer drum during the steam cycle. It allows steam to be evenly dispersed to reduce wrinkles and odors in garments.

Causes of a bad steam nozzle can include mineral buildup or blockages due to hard water, cracks or damage from extended use, or malfunctions in the electronic components that control steam output.

Symptoms of a bad steam nozzle include:

• Inadequate or uneven steaming during cycles
• No steam output
• Drips or leaks from the nozzle area
• Garments not being effectively wrinkle-reduced or odor-removed after steaming.

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models.

This retainer cover nozzle secures and protects the dispenser nozzle assembly so detergent or rinse aid flows correctly during cycles. It restores proper alignment and helps prevent leaks or reduced dispense performance. What it does:

• Holds the dispenser nozzle in place so fluid dispenses through the correct opening
• Protects the nozzle from damage and misalignment during normal use
• Helps prevent leaking around the dispenser area and ensures consistent dispensing
• Commonly replaced when nozzle is cracked, worn, or no longer seats securely

• One retainer cover nozzle

• Designed to snap or screw into the dispenser assembly; inspect surrounding parts for wear before installing
• Turn off power and water and follow manufacturer instructions for safe access to the dispenser area
• Use basic hand tools; avoid forcing the part—if it does not seat easily, recheck orientation and adjacent components
• If other dispenser components are damaged, replace as a set for reliable operation

The Roller Assembly Wheel is an OEM part for GE dryers. It supports the drum and allows it to rotate smoothly during drying cycles, ensuring efficient and quiet operation. The assembly includes the roller, roller axle shaft, and two retaining clips. The roller is threaded on one side and hexagon-shaped on the other, with a tri-ring included for secure installation.

You should replace this roller assembly wheel if it becomes worn or damaged. Common causes of a bad roller assembly wheel include wear and tear from regular use, accumulation of lint and debris, or damage due to overloading the dryer.

Symptoms of a bad roller assembly wheel include:

• Thumping or squeaking noises during operation
• The drum not rotating properly or getting stuck
• Uneven drying of clothes
• Excessive vibration or movement of the dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Roller Assembly Wheel is an OEM part for GE dryers. It supports the drum and allows it to rotate smoothly during drying cycles, ensuring efficient and quiet operation. The assembly includes the roller, roller axle shaft, and two retaining clips. The roller is threaded on one side and hexagon-shaped on the other, with a tri-ring included for secure installation.

You should replace this roller assembly wheel if it becomes worn or damaged. Common causes of a bad roller assembly wheel include wear and tear from regular use, accumulation of lint and debris, or damage due to overloading the dryer.

Symptoms of a bad roller assembly wheel include:

• Thumping or squeaking noises during operation
• The drum not rotating properly or getting stuck
• Uneven drying of clothes
• Excessive vibration or movement of the dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Roller Assembly Wheel is an OEM part for GE dryers. It supports the drum and allows it to rotate smoothly during drying cycles, ensuring efficient and quiet operation. The assembly includes the roller, roller axle shaft, and two retaining clips. The roller is threaded on one side and hexagon-shaped on the other, with a tri-ring included for secure installation.

You should replace this roller assembly wheel if it becomes worn or damaged. Common causes of a bad roller assembly wheel include wear and tear from regular use, accumulation of lint and debris, or damage due to overloading the dryer.

Symptoms of a bad roller assembly wheel include:

• Thumping or squeaking noises during operation
• The drum not rotating properly or getting stuck
• Uneven drying of clothes
• Excessive vibration or movement of the dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Roller Assembly Wheel is an OEM part for GE dryers. It supports the drum and allows it to rotate smoothly during drying cycles, ensuring efficient and quiet operation. The assembly includes the roller, roller axle shaft, and two retaining clips. The roller is threaded on one side and hexagon-shaped on the other, with a tri-ring included for secure installation.

You should replace this roller assembly wheel if it becomes worn or damaged. Common causes of a bad roller assembly wheel include wear and tear from regular use, accumulation of lint and debris, or damage due to overloading the dryer.

Symptoms of a bad roller assembly wheel include:

• Thumping or squeaking noises during operation
• The drum not rotating properly or getting stuck
• Uneven drying of clothes
• Excessive vibration or movement of the dryer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A flat steel washer that spaces and protects fasteners to keep components aligned and reduce wear. Fits where a thin, durable metal shim is needed to distribute load and prevent screw or bolt damage. What it does:

• Distributes clamping force from a fastener to protect softer surfaces
• Maintains proper spacing and alignment of components
• Reduces wear and abrasion between parts
• Can help reduce loosening from vibration when used with the correct fastener

• Disconnect power and unplug the appliance before servicing.
• Use the correct bolt or screw; do not overtighten—tighten to snug plus a short turn.

Black. 8-18 AB HXW 3/8

Replace a torn or warped lint screen with this lint screen assembly. It captures lint and debris from the dryer's airflow to help maintain ventilation, protect the blower, and support consistent drying performance.

• Traps lint and fibers as air exits the drum, preventing buildup in the blower and vent path
• Supports proper airflow for efficient, safe drying
• Replace if the mesh is torn, the frame is cracked/warped, or the handle is broken
• Common symptoms include longer dry times, lint on laundry or around the door, or the filter not sitting flush

• Disconnect power before servicing the appliance
• Open the door, slide out the old screen, and seat the new screen fully in the housing
• Clean the lint chute and vent opening while the screen is out to restore airflow
• Do not operate the dryer without a lint screen installed

This is a #8-18 x 1/2" screw used to secure panels and trim on compatible appliances. It replaces lost or damaged fasteners to restore proper fit and prevent rattling or loose components. What it does:

• Fastens panels, trim, or components to appliance chassis
• Restores secure attachment when original screws are stripped or missing
• Helps eliminate rattling or vibration caused by loose hardware
• Keeps internal parts properly aligned for normal operation

• Disconnect power before servicing the appliance to avoid electrical shock
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or plastic parts
• Keep small parts away from children and pets

This tub light assembly replaces a worn or damaged washer tub lamp to restore interior illumination so you can see clothing and check for small items. It installs behind the washer's access panel for reliable lighting every load. What it does:

• Provides interior tub illumination so you can spot small items and inspect load condition
• Replaces a burned-out or non-functioning tub light or a cracked/damaged lens
• Helps eliminate dim, flickering or no-light symptoms from the washer tub area
• Fits into the factory mounting location and uses the existing wiring harness

• Disconnect power before servicing to avoid shock hazard
• Access may require removing the washer top or rear access panel; use basic hand tools
• Handle the lamp and lens carefully to avoid breakage; wear gloves and eye protection
• If the light still doesn't operate after replacement, check wiring and door switch before replacing other components

The Grill Assembly is an OEM part compatible with GE electric dryers. As one of the main ventilation components, the grill assembly is responsible for properly channeling airflow throughout the dryer drum and exhaust system. It features an integrated fine mesh filter that traps lint and prevents blockages while maximizing air circulation.

Causes of a bad grill assembly can include excessive lint buildup or damage to the mesh filter over time, or impact or bending of the assembly due to accidental mishandling.

Symptoms of a bad grill assembly include:

• Reduced airflow causes longer dry times
• Excess heat buildup that can damage fabrics
• Lint escaping the dryer and clogging the vent
• Musty odors from inefficient air circulation

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This harness rod sensor is a factory-style replacement harness with a rod-style sensor that restores the appliance's sensing circuit so controls get accurate input for proper operation. Designed to replace a worn or damaged sensor harness quickly. What it does

• Provides the sensor connection and signal path used by the appliance control to monitor conditions
• Restores reliable sensing when the original harness is frayed, corroded, or broken
• Helps prevent intermittent faults or control errors caused by an open or shorted sensor circuit
• Works in applications that use a rod-style sensor probe

• One harness rod sensor assembly

• Turn power off at the appliance and unplug or switch off breaker before starting any repair
• Handle the sensor probe and terminals carefully to avoid damage; route harness as original
• Verify connector orientation and secure all fasteners; test operation after reassembly

Rod sensor that detects liquid level and signals the appliance control so fill cycles and pumps operate correctly. Replacing a faulty rod sensor helps restore reliable fill control and prevents overfill or underfill issues. What it does:

• Senses liquid level and provides a signal to the control board or valve to start/stop filling.
• Common failure modes include corrosion or mineral buildup that prevents accurate sensing.
• A failed sensor can cause no-fill, continuous-fill, or erratic fill behavior and related dispenser or ice/wash problems.
• Restoring the sensor can return normal fill cycles and reduce leaks or overflow risk.

• Disconnect power (and water supply if applicable) before servicing.
• Handle the sensing rod carefully; avoid bending, scratching, or contaminating the sensing surface.
• Reconnect wiring and mounting hardware exactly as removed; ensure secure, strain-free connections.
• After installation, test a fill/dispense cycle to confirm proper operation.

This fan seal fits around a refrigerator/freezer fan motor shaft to help keep airflow focused and protect the motor housing from air and moisture intrusion. It helps maintain proper cooling performance and reduces excess vibration and noise. What it does:

• Seals the fan motor shaft to limit air leakage between compartments and improve directed airflow
• Cushions the fan motor to reduce vibration and rattling during operation
• Helps prevent moisture and debris from contacting the motor bearing area
• Commonly replaced when you notice noisy fan operation, air flow problems, or frozen evaporator issues

• One fan seal

• Always disconnect power to the appliance before starting any repair
• Access may require removing interior panels or fan housing; keep track of fasteners
• Inspect the fan blade and motor shaft for damage before installing the seal
• Use gentle, even pressure to seat the seal—avoid sharp tools that can nick the part

A replacement baffle screw and flat washer used to secure the baffle or trim piece in ovens and ranges. Restores proper attachment to reduce vibration and keep the baffle aligned for normal operation. What it does

• Secures the baffle or trim to the oven/range body and prevents movement or rattling.
• Replaces missing, stripped, or corroded mounting hardware that can cause loose or misaligned baffles.
• Helps maintain a tight fit so trim and baffle sit flush with surrounding panels.
• Small, direct-replacement fastener for original baffle mounting points.

• Disconnect power and allow the appliance to cool before accessing internal panels.
• Use the matching size screwdriver; start threads by hand to avoid cross-threading.
• Tighten until snug — avoid over-tightening, which can strip threads or deform the washer.
• Repair or replace the mounting bracket before installing this hardware.

The Thermistor Inlet is an OEM part for GE dryers. As a temperature monitoring device, it senses air inlet temperatures entering the dryer drum each cycle. This thermistor provides feedback to regulating components like the control board and heating elements.

Symptoms of a faulty thermistor inlet include:

• Unexpected fluctuation of inlet air temperatures
• Issues activating or deactivating heating elements as needed
• Potential safety trips from inaccurate temperature readings
• Improper or inconsistent drying times

Causes of a bad thermistor can be normal wear over repeated uses and heat cycles. Mineral scale buildup may also impact sensor accuracy over time. Electrical faults could potentially disrupt functioning.

This OEM GE replacement ensures proper inlet temperature sensing once installed. Compatible with some Hotpoint, RCA, and Kenmore dryers as well, it maintains safe, consistent performance through accurate temperature feedback to dryer electronics.
