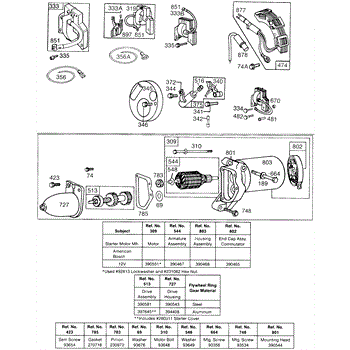

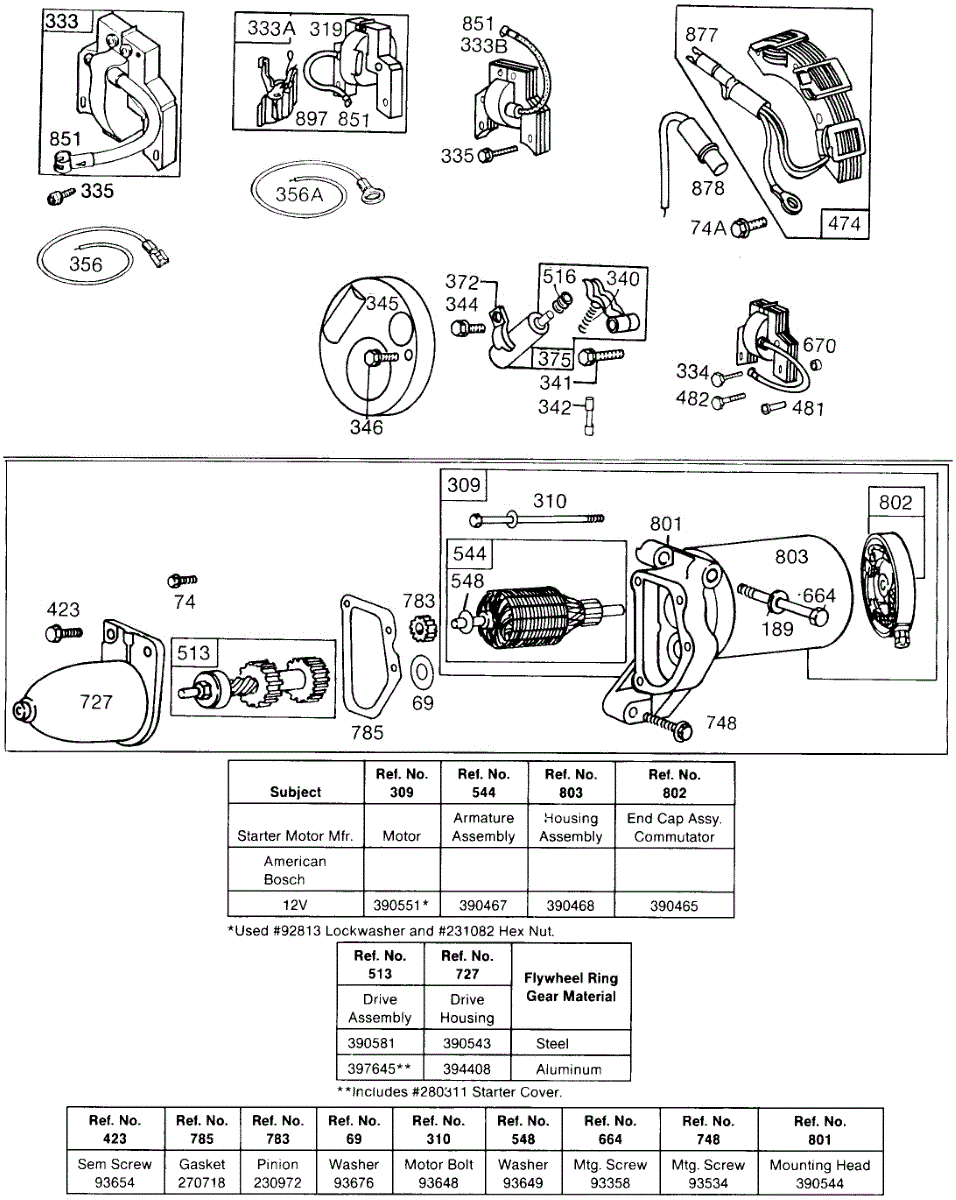

Parts for Briggs & Stratton 131432-0141-01: Electric Starter,Misc Elect. Parts

This is a replacement part for the ignition coil on the small engine of outdoor power equipment. The magneto will generate electricity using magnets in the flywheel, which then produces high voltage to power the spark plugs. The parts of a magneto include the armature and the ignition. Primary and secondary coils are wrapped around the armature. Over time, many things could go wrong with the ignition coil. The capacitor or the rotating magnets could have issues or the wire between the magneto and the spark plug may have corroded. If there are problems starting the engine, it could be due to the magneto. This OEM ignition coil, also called a magneto armature, will work with many different types of outdoor power equipment. This includes generators, engines, pressure washers, tillers, and blowers. The part is compatible with many brands, including Cub Cadet, Toro, Simplicity, MTD, and Briggs & Stratton.

The stop wire is a safety cable device offered on many types of lawn and garden equipment. It is pressed near the upper handle of a device to start it, which lets the blades spin and creates forward motion on equipment that is self-propelled. A stop wire can stretch out over time and will need to be replaced to ensure total safety. If the blade brake control is released and the blades continue to spin for more than a couple of seconds, the wire needs to be replaced.Take the equipment and put it on a flat surface before taking the metal on the stop cable and moving it out of the mower handle. Squeeze the center tabs of the wire with needle-nose pliers and pull the cable end through the bracket. Pull the other end out and then replace it with a new component.This is an authentic OEM replacement part for use with garden equipment engines. It is an individual part that is sourced directly from the manufacturer. This part is compatible with lawnmowers, wood chippers, snowblowers, generators, log splitters, tillers leaf blowers, and pressure washers by Briggs & Stratton, MasterCut, Craftsman, Simplicity, Toro, MTD, Cub Cadet, Lawn-Boy, Murray, and Wheel Horse.

This ignition set consists of an ignition breaker and condenser. It is made of durable materials and uses a mechanical switch to close the electrical system and make a spark. If these parts are not working correctly or are broken, the engine on the lawn equipment will not start so the machine cannot be used. If the ignition set might not be working, use a spark tester with a plug lead to test. Place the control on stop or shut it off and attempt to turn on the engine using a key or cord. There should be no spark. When in the on position, a spark should be present. If the spark doesn't occur, there may be broken wires, grounds, shorts, or defects, so the parts will need to be replaced.This ignition set is a genuine OEM replacement part that was sourced directly from the manufacturer. It is sold as a single kit. The part is designed to be used in lawnmowers, tillers, leaf blowers, and snowblowers created by Cub Cadet, Briggs & Stratton, Broan, Lawn-Boy, and Toro.
