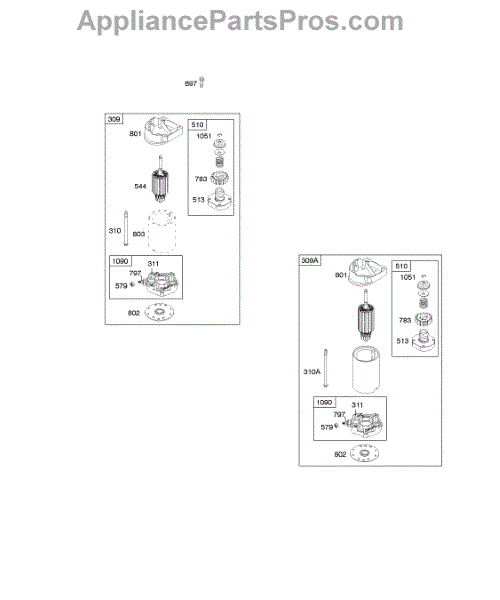

Parts for Briggs & Stratton 42E707-2631-E3: Electric Starters Parts

This is a high-quality starter motor that is used for small engines installed on a variety of lawnmower models. The starter motor is responsible for providing initial motion, which causes the flywheel to engage and start the engine. The starter motor is located on the engine crankcase and makes the flywheel teeth connect with the starter motor plunger teeth to power up the engine. A bad starter motor can have many symptoms, including a clicking noise when the ignition is pressed, cranking noises without engine turnover, or a lawnmower that does not start.If the starter motor needs to be replaced, the lawnmower will need to be disassembled to access the part. Remove the shroud, disconnect the battery, and remove the fan. The flywheel can be removed using a gear puller, after which the wire and bolts should be removed. Next, remove the starter motor and replace it with a new part.This starter motor is an authentic OEM replacement component that is directly sourced from the manufacturer. It is sold as an individual part. The motor is designed for use with lawnmowers manufactured by Briggs & Stratton, Craftsman, Cub Cadet, Toro, and Simplicity.

This starter drive is a part of the starter system that helps to engage the engine. When it is energized, the gears are activated and turned, which engages the flywheel and starts the engine. This is a critical step in the firing process and lawn equipment will not run if the starter goes bad. Over time, gears can wear out and other damage can occur, resulting in a need for a replacement of the entire assembly or certain parts. It is generally easier to replace the entire assembly. This OEM replacement electric starter drive kit is designed for use with select Briggs & Stratton engines that can be found on various equipment, including lawn tractors and lawn mowers. The kit features a new style starter along with a retainer, composite drive gear, starter gear, return spring, retention plate, clutch drive, and the washer and clip to ensure a secure attachment of all parts. It is important to disconnect the spark plug before working on engine components. This starter drive kit is sold as a single unit and comes with a total of nine pieces.

This replacement part is a nut. This part is small but important in various types of equipment. Nuts are able to work with other small parts such as washers and screws to secure equipment components in place.If a nut has become stripped or worn down over time, it is possible that it can no longer perform the function needed. Be sure to wear work gloves when working with small parts such as nuts to prevent injury during the repair. This is a genuine OEM replacement part manufactured by Midwest Engine. This part is sold individually.

A pinion gear is a small cylindrical component that is integral with a rack and pinion mechanism. Together with the rack, its primary function is to transform rotational movement into linear motion. Machines like lawnmowers and lawn tractors have a rack and pinion system. When the steering wheel of a tractor is moved, the gear will rotate, which engages the rack. Although this component is exceptionally durable, it is still subject to wear and tear. Some symptoms of a bad rack and gear mechanism include a loose or tight steering wheel and a grinding noise. Performing a do-it-yourself rack and gear replacement is possible and takes only 30 to 45 minutes. If the rack is in good condition, but the gear is not, omly a pinion gear replacement may be needed. This brand-new, genuine Midwest Engine 695708 pinion ensures quality and compatibility with lawn tractors, generators, mowers, and engines from Midwest Engine, Briggs & Stratton, and Craftsman. The gear is sold individually. An original Midwest Engine Gear Ring is not included.

This brush retainer is part of the starter motor on many types of lawn and garden machinery. It comes with both the retainer and a set of four brushes. The main job of the brush retainer is to hold a set of carbon brushes against the commutator bars located on the armature. If the brush retainer is worn, damaged, or improperly seated, it can cause problems with the equipment. The starter motor will not be able to get the proper amount of current from the battery.If the brush retainer might be causing problems, a visual inspection can be performed. A damaged brush retainer can wear down to the wire lead and become burned, pitted, or cracked. When the brush retainer is worn out, it can decrease engine performance, reduce braking, and cause the motor to lose power. This brush retainer is an authentic OEM replacement part sourced directly from the manufacturer. It is sold as an individual part. The retainer is made to be used with lawnmowers, snowblowers, tillers, and wood chippers created by Briggs & Stratton, Craftsman, Toro, Cub Cadet, Lawn-Boy, Snapper, MTD, and Simplicity.
