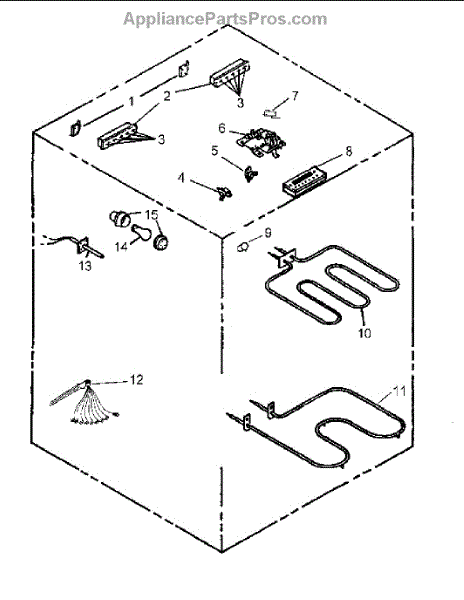

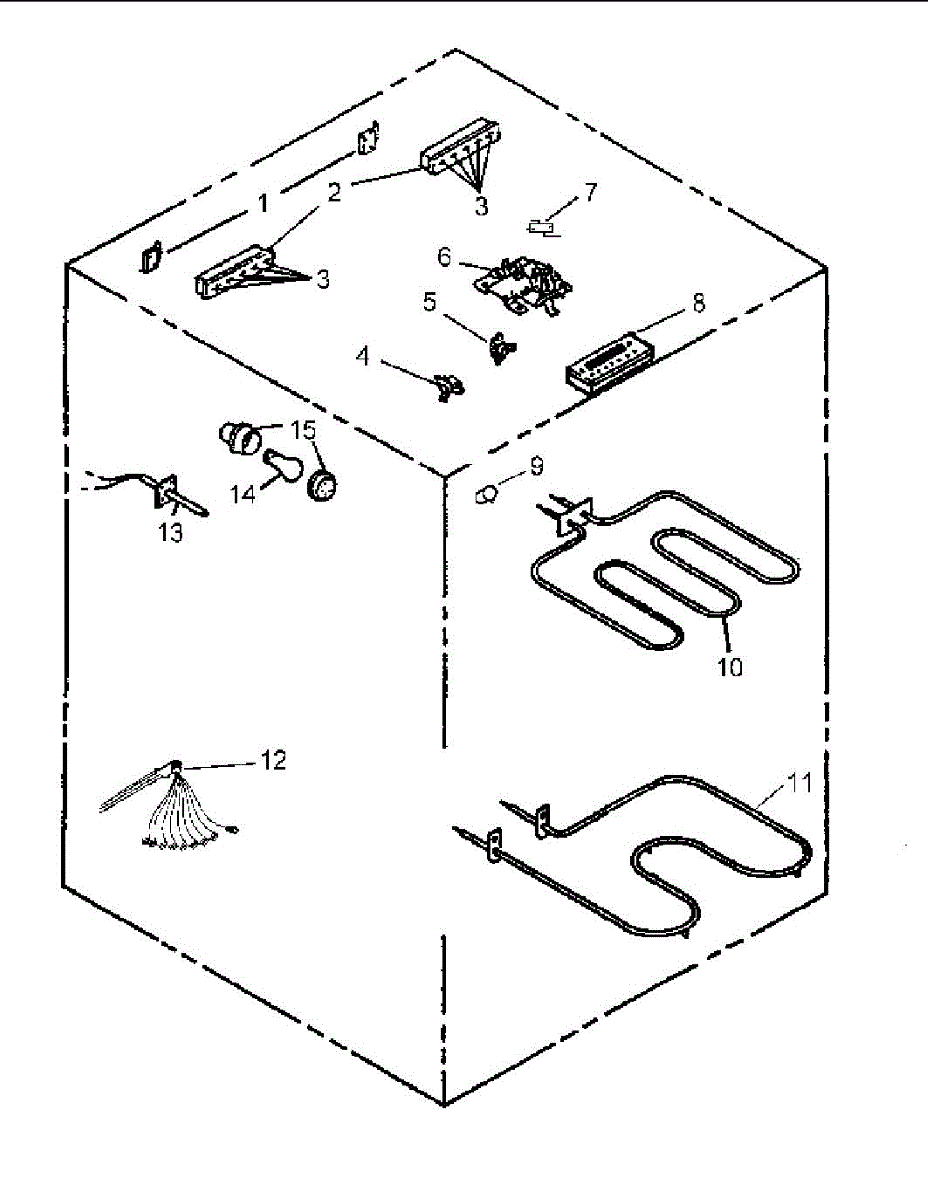

Parts for Amana CARDS801E-P1131925NE: Electrical Components Parts

This lower bake element supplies the primary heat for Bake cycles, restoring consistent oven temperatures and even results. Replace a burned-out or damaged element to resolve no-heat on Bake, extended preheat times, and undercooked food.

• Heats the oven cavity from the bottom during Bake cycles for proper cooking
• Restores heat when the original element is burned out or broken
• Common symptoms: no heat on Bake, very long preheat, uneven or undercooked results
• Visible damage such as blistering, cracks, or breaks indicates replacement

• Disconnect power at the breaker before servicing
• Remove oven racks, take out the element's mounting screws, and gently pull the element forward
• Transfer the two wires one at a time; do not allow wires to slip behind the oven liner
• Reinstall the element and screws, restore power, and test Bake

This temperature sensor monitors internal temperature and relays it to the control so heating or cooling can be regulated. Replacing a faulty sensor helps restore accurate temperature control, consistent cycling, and dependable performance. What it does

• Measures compartment or cavity temperature and sends a signal to the control
• Helps the unit reach and maintain the set temperature
• Common failure symptoms: temperature too hot/cold vs. setting, long/short cycling, failure to reach setpoint, or related error codes
• Tests out-of-range for resistance/ohms when defective

• 1 temperature sensor

• Disconnect power before servicing; shut off gas
• Access the sensor; note wire routing and connector orientation
• Do not pull on wires; transfer any clips, grommets, or brackets from the old sensor
• Restore power and run any model-specific diagnostics or calibration if required
