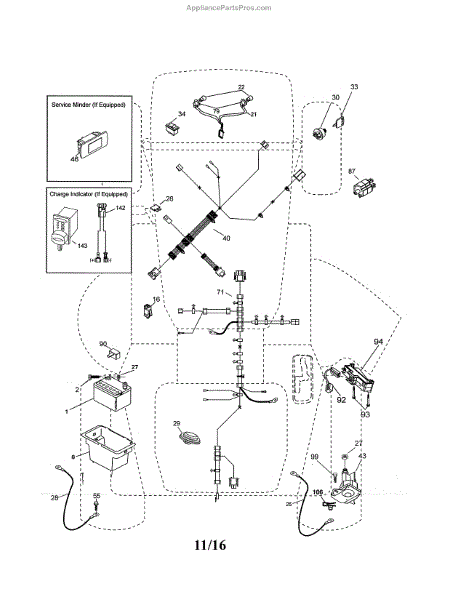

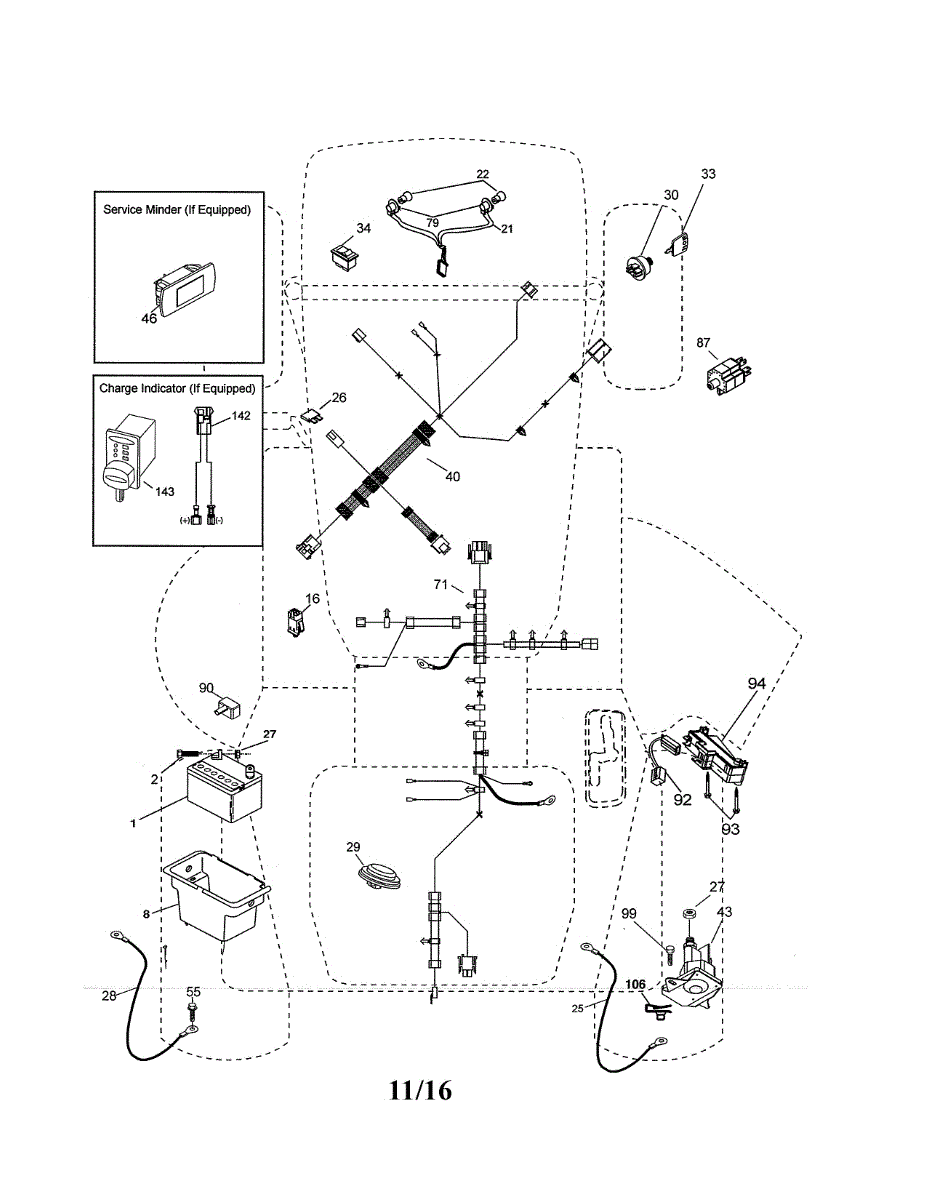

Parts for Craftsman 917990030: Electrical Parts

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This pilot light lens covers and diffuses the control-panel indicator lamp. Replace a cracked, missing, or discolored lens to restore clear visibility of the light, protect the lamp opening, and keep the panel looking finished.

• Covers and diffuses the indicator lamp on the control panel
• Helps protect the lamp opening from debris and accidental contact
• Restores a clean, finished appearance to the panel
• Replace if the lens is cracked, missing, loose, or discolored
• Can help when the indicator is hard to see even when lit

• Disconnect power to the appliance before servicing and allow surfaces to cool
• Access the indicator opening from the front or rear (varies by design) and remove any retainer or clips holding the old lens
• Note orientation and transfer any existing retainer or gasket if present
• Seat the new lens fully, reassemble, and test the indicator light

This wire harness is a genuine Husqvarna part, sold individually. This wire harness can be used as a replacement part in a lawn mower. The purpose of the wire harness in a lawn mower is to transmit and pass electrical currents and power throughout the entire appliance through a series of wires, cables, and terminals.The wire harness in a lawn mower might have to be completely replaced by this genuine OEM replacement part in the event that the original suffers damage that cannot be repaired. If the engine is shutting off, hard starting, or if there is corrosion on the terminals, or glitching lights, a wire harness in the mower may be damaged. This replacement is a standard process that will not take too much time and will only require basic tools to conduct.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This wire harness is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, and Poulan.
