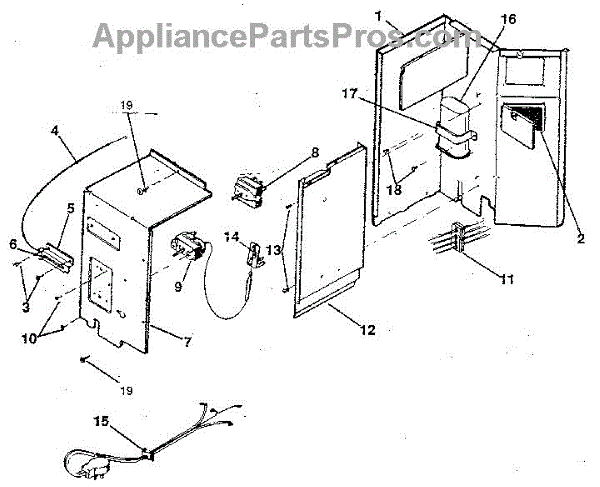

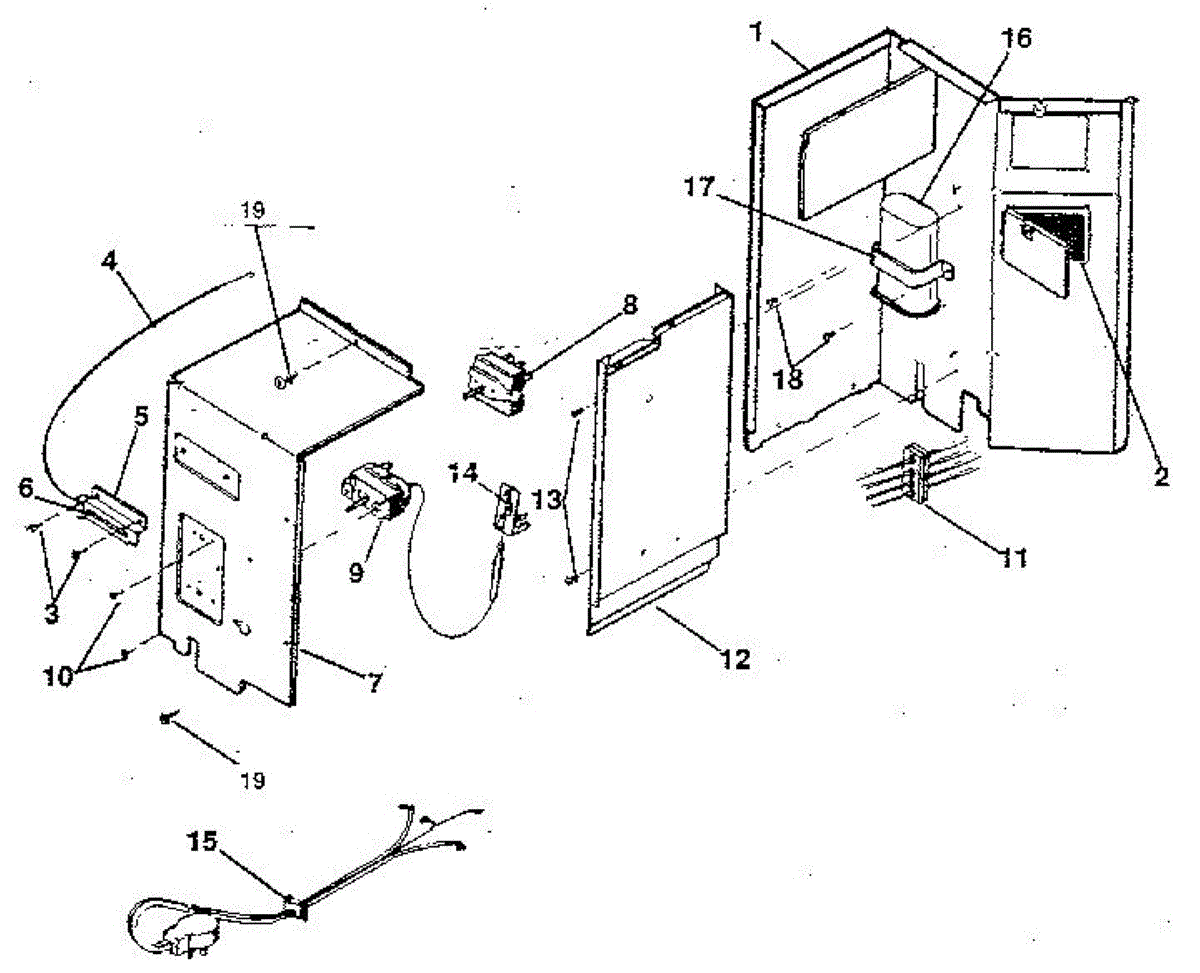

Parts for Kenmore 253.8781461 (2538781461, 253 8781461): Electrical System And Unit Parts

This part has been discontinued by the manufacturer and is no longer available.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

This temperature control thermostat regulates refrigerator temperature by cycling the cooling system to keep food at safe temperatures. It replaces a faulty mechanical thermostat to restore reliable temperature control and consistent cooling. What it does:

• Senses interior temperature and opens/closes the control circuit to start/stop the compressor
• Commonly used when the refrigerator won't reach or hold the set temperature
• Works with the refrigerator's control housing and dial or lever interface to adjust desired temperature

• Disconnect power before starting work to avoid shock or damage
• Access may require removing the control housing or inner cabinet panels — use basic hand tools
• Verify electrical connections match the replacement part; transfer any mounting brackets or clips from the old part if needed

This wire harness connects the refrigerator's main electrical components to restore reliable power and signal routing. It replaces a damaged or worn harness to help re-establish circuits for controls, lights, and compressor connections. What it does

• Routes power and signals between control boards, compressors, lights, and door components
• Replaces frayed, melted, or broken wiring that can cause intermittent power or component failure
• Helps eliminate symptoms like no lights, no compressor run, or non-responsive controls when caused by a faulty harness
• Provides factory-style connectors to maintain proper electrical connections

• One replacement wire harness (quantity: 1)

• Disconnect power to the appliance before starting any repair
• Compare the new harness to the original for routing and connector matches before installation
• Route harness away from sharp edges and heat sources; secure with existing clips or ties

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

This part has been discontinued by the manufacturer and is no longer available.

This atomizer is a direct replacement spray nozzle that restores proper misting or water distribution in compatible appliances, helping maintain even operation and appliance performance. What it does:

• Produces a fine spray or mist for even water distribution where required
• Restores proper spray pattern when original nozzle is clogged, worn, or damaged
• Helps prevent pooling or uneven moisture that can affect operation
• Common symptom fix: weak or uneven spray, reduced misting performance

• One atomizer spray nozzle

• Disconnect power and shut off water supply before beginning service
• Remove access panels as needed and handle the atomizer gently to avoid damage
• Clean surrounding connections before installing the new atomizer to prevent re-clogging

This genuine panel screw secures appliance panels and trim, restoring a flush fit and stopping rattles or loose edges. Small but essential fastener for maintaining cabinet alignment and safe operation. What it does:

• Fastens panels, trim pieces, or control housings to the appliance frame
• Restores secure panel fit when a screw is missing or stripped
• Helps eliminate rattling, vibration noise, and shifted panels
• Keeps interior components covered to reduce dust and user contact risk

• Disconnect power (unplug or shut off breaker) before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the screw head
• Hand-start the screw to align threads, then tighten snugly — avoid over-torquing
• If threads are damaged, replace the mating clip or insert to ensure a secure fit
