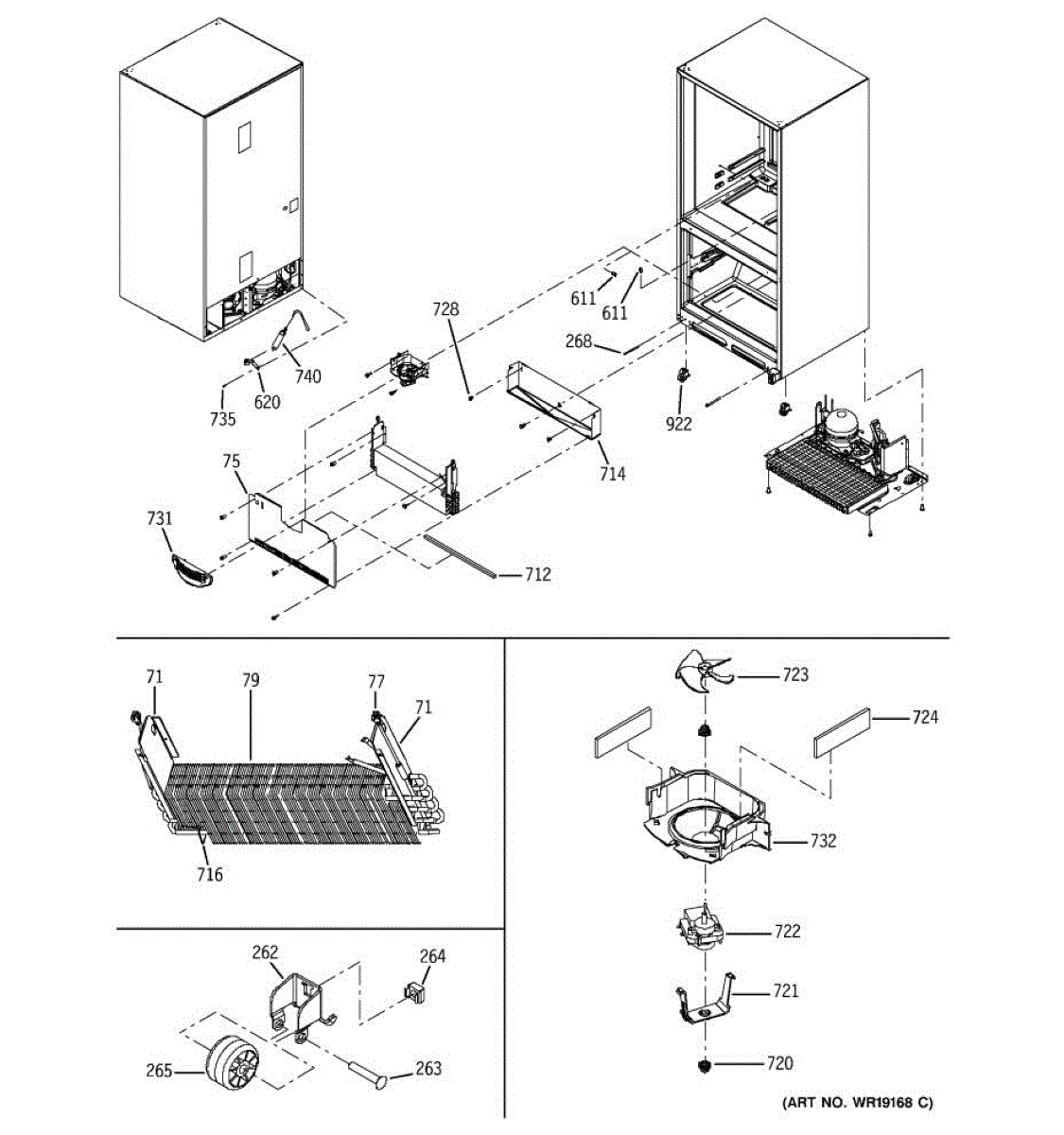

Parts for Ge PDS22LBNABB: 04 - Evaporator & Freezer Control Assemblies Parts

This rivet is a small replacement fastener used to secure panels and trim on compatible appliances. It restores secure attachment where a factory rivet is missing or damaged, helping stop rattles and loose parts. What it does:

• Replaces a damaged or missing rivet that holds trim, brackets, or small panels in place
• Restores secure attachment to reduce rattling or movement
• Helps maintain proper alignment of the part it secures
• Simple, single-purpose fastener for reliable long-term holding

• One rivet

• High-level replacement: remove the damaged rivet and install the new rivet in the same location
• Use proper rivet-setting or fastening tools for a secure installation
• Wear eye protection and gloves; take care around sharp edges

Refrigerator door gasket seals the door to maintain temperature and efficiency. Replace if torn, cracked, or not sealing properly. Verify fit with model.

This evaporator drip tray catches and channels defrost and condensation water away from the refrigerator's evaporator area, helping prevent leaks and water damage. It's a direct-fit replacement designed to restore proper drainage. What it does

• Collects melted frost and condensation from the evaporator during defrost cycles
• Channels water to the drain system or reservoir to prevent pooling under components
• Helps reduce ice buildup and water leaks that can cause floor damage or electrical issues
• Restores normal drainage when cracked, warped, or clogged trays allow water to escape

• One evaporator drip tray

• Disconnect power to the appliance before starting any repair
• Access may require removing interior panels or the freezer/refrigerator evaporator cover
• Inspect and clear the drain tube before installing the new tray to ensure proper flow
• Handle carefully to avoid bending mounting tabs or nicking surrounding insulation

This replacement rubber grommet cushions and secures the appliance fan motor, helping reduce vibration and noise while keeping the motor properly aligned. It restores stable motor mounting and prevents rubbing or premature wear on the motor housing. What it does:

• Dampens motor vibration to reduce noise and rattling
• Holds the fan motor in correct alignment to prevent wobble
• Prevents the motor from contacting the cabinet or mounts and causing wear
• Helps extend motor and blade life by reducing movement-related stress

• Disconnect power to the appliance before starting any repair
• Remove the appropriate access panel to reach the fan motor assembly
• Note the grommet orientation and replace like-for-like; press the grommet into the motor mount until fully seated
• Inspect other mounts and hardware; replace additional worn grommets as needed

Secures the evaporator fan motor in place. Replace if broken or loose, causing motor vibration or noise. Verify fit with your model number.

This evaporator blade helps move cold air across the evaporator coil so your refrigerator cools evenly and resists frost buildup. It's the replacement blade used with the evaporator fan assembly. What it does:

• Circulates air across the evaporator coil for consistent cooling
• Helps reduce frost accumulation on the coil by improving airflow
• Restores airflow if the original blade is cracked, broken, or missing
• Resolves reduced cooling, uneven temperatures, or frost buildup in the freezer

• Disconnect power to the appliance before starting any repair.
• Remove interior freezer panels and access the evaporator/fan housing per OEM service instructions.
• Handle the blade and evaporator fins carefully to avoid damage; ensure the blade is properly seated on the fan shaft.

This foam gasket seals the refrigerator door/mullion area to help maintain an even internal temperature and reduce condensation. Replacing a worn gasket restores a tighter seal for more efficient cooling. What it does:

• Fits along the door/mullion to close gaps where cold air can escape
• Helps reduce frost buildup and warm spots inside the compartment
• Can improve cooling consistency and reduce energy loss from air leaks
• Common symptom: visible gaps, torn or compressed foam, or excess frost near the door

• One foam gasket

• Disconnect power before starting work and remove food from the affected compartment
• Peel off old gasket and any adhesive residue; clean surface with a mild cleaner and let dry
• Align new gasket, press firmly into place; some installations may require adhesive or fasteners

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
