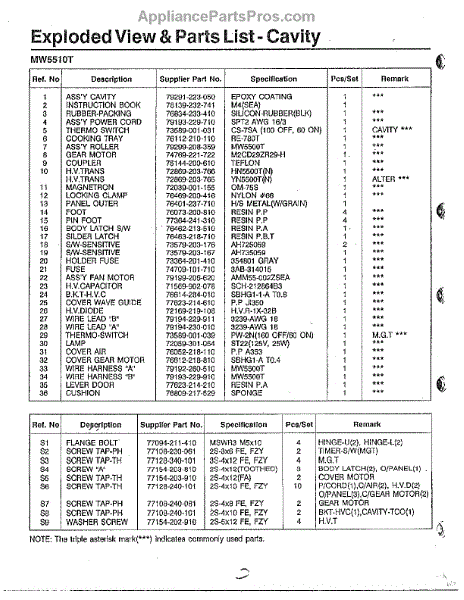

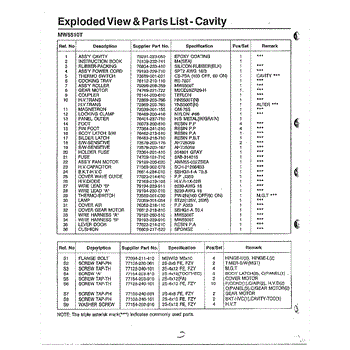

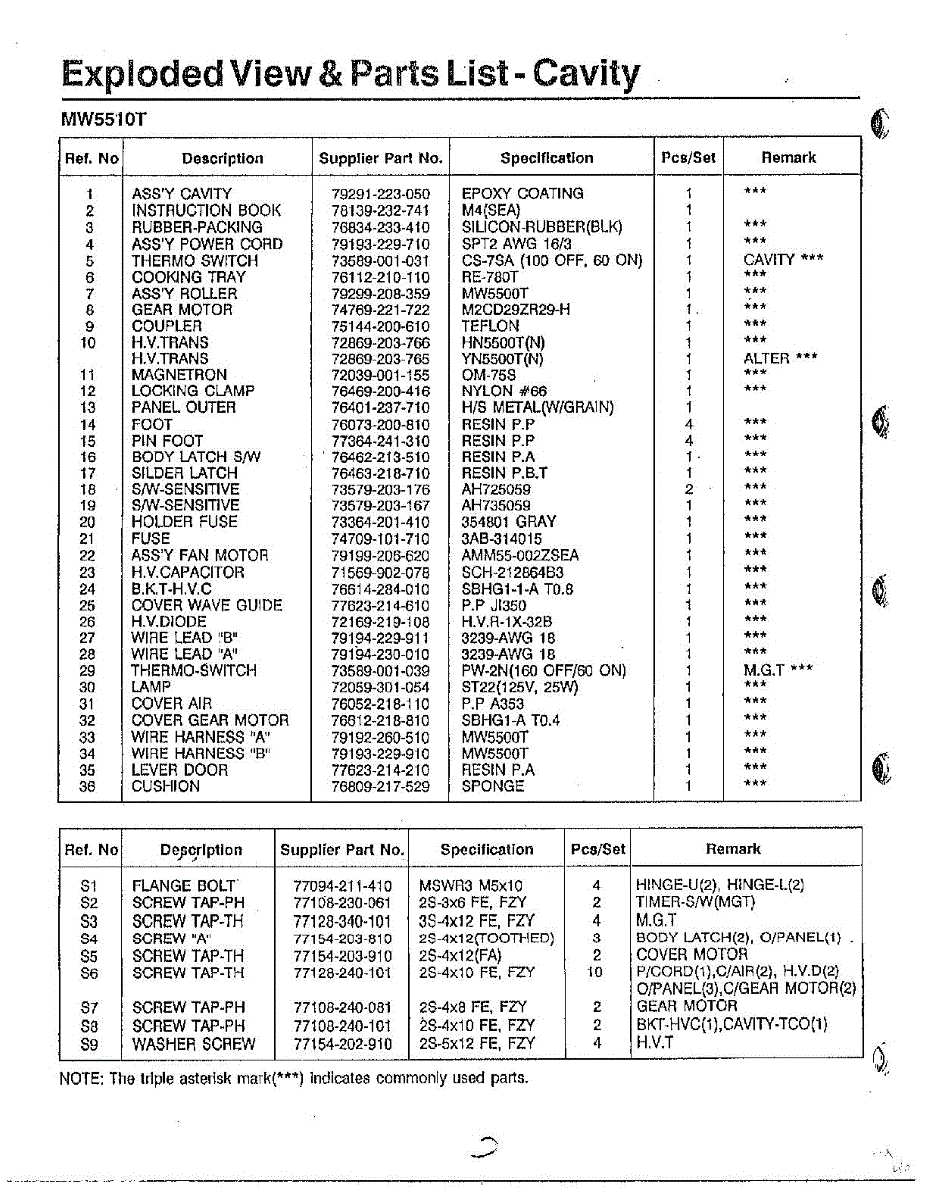

Parts for Samsung MW5510T/XAA: Exploded View - Cavity Parts

This is a replacement screw used to secure appliance panels and components, restoring proper fit and reducing rattles. It matches the OEM fastener for affected Samsung units. What it does

• Secures panels, brackets, or trim to prevent movement and vibration
• Helps maintain proper alignment of components and access panels
• Common symptom: loose or missing screw causing rattling or gaps
• Works wherever the OEM-design screw is specified in the parts diagram

• Screw part only

• Always disconnect power before accessing internal panels or components
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-torquing to prevent thread damage
• If multiple screws are missing or damaged, replace all matching fasteners for consistent fit

This replacement screw secures appliance panels and small component assemblies to restore proper fit and reduce vibration or rattling. It matches the OEM fastener used on compatible Samsung appliances for reliable fastening. What it does:

• Secures panels, brackets, and small component assemblies to maintain alignment and prevent movement
• Stops rattling or vibration caused by loose or missing fasteners
• Replaces stripped, missing, or damaged screws used in interior and exterior appliance assemblies
• Provides the correct fit and thread engagement to avoid part movement under normal use

• Use the correct screwdriver or bit to avoid stripping the head; hand-start threads before tightening
• Do not overtighten — snug until fully seated to prevent damage to threads or surrounding parts
• Keep small parts away from children and pets during installation
• If threading feels cross-threaded or damaged, stop and inspect the mating hole before continuing

This replacement door magnet helps the appliance door stay securely closed for a proper seal and reliable operation. It restores the magnetic catch that keeps the door latched and reduces drafts or poor sealing. What it does:

• Provides a magnetic catch to help the door stay shut
• Restores proper door sealing to help maintain temperature and efficiency
• Helps prevent the door from popping open during normal use
• Common symptom: door doesn't stay closed or seal feels weak

• One replacement magnet

• Disconnect power to the appliance before starting any repair
• Inspect mounting area and gasket for damage; replace gasket if worn
• Typically installs with basic hand tools; avoid over-tightening fasteners
