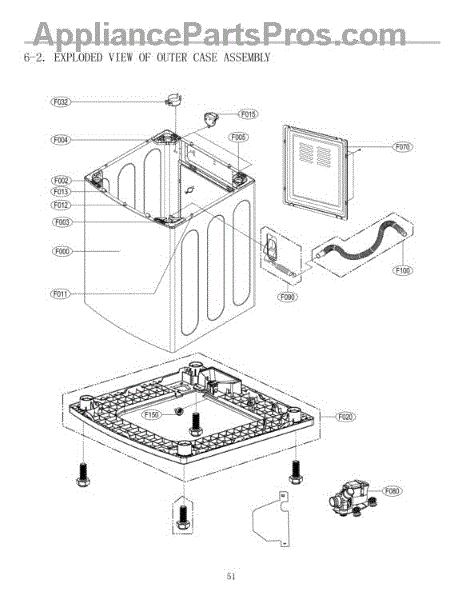

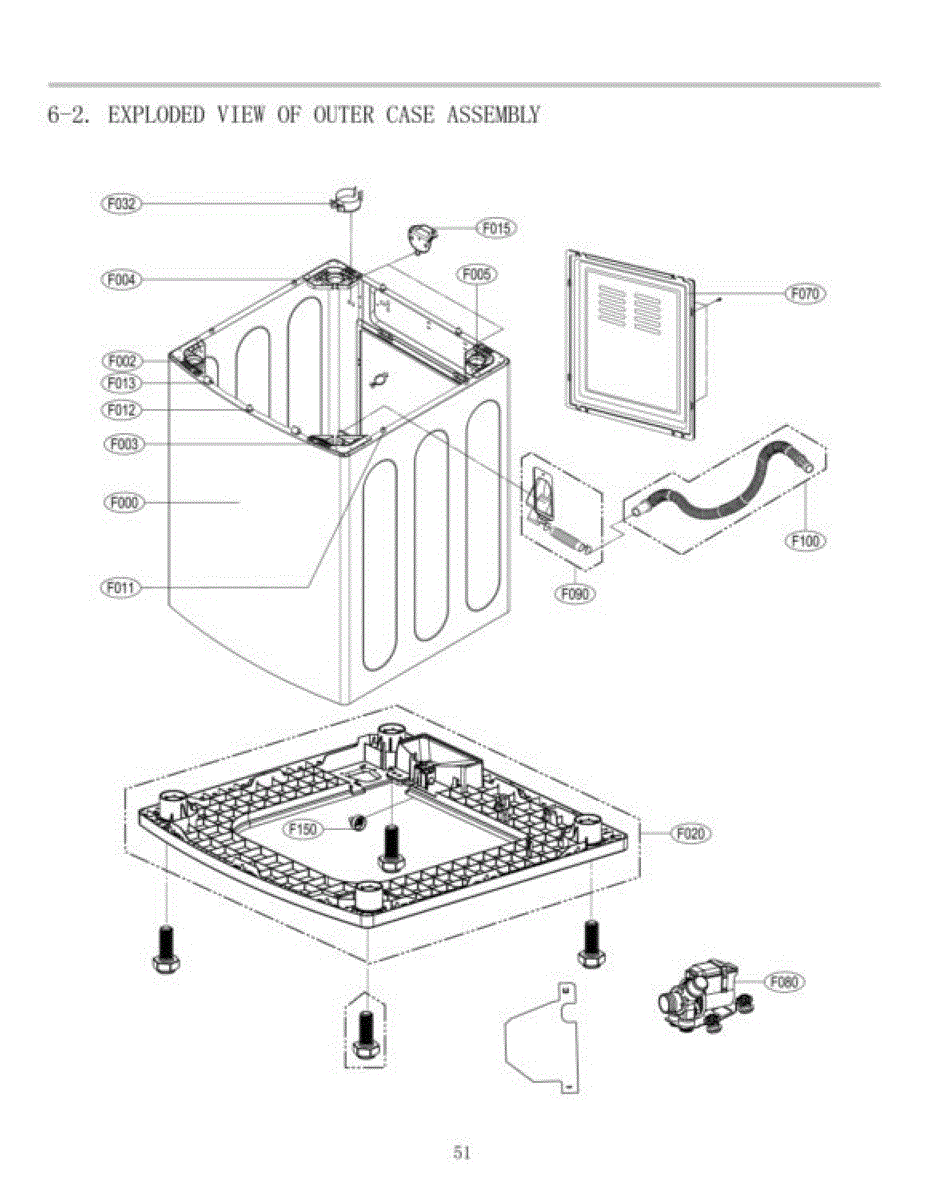

Parts for Lg WT5170WH: Exploded View Of Outer Case Assembly Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Rear cover panel for your washer cabinet. Replaces cracked, broken, or missing rear covers that expose internal components or create gaps in the exterior.

This socket connects and secures the suspension rod that helps support your washer tub during operation. It allows the tub to move properly while containing vibrations and maintaining balance. Replace it if your washer shakes excessively, makes loud noises during spin cycles, or the tub seems loose.

Complete outer cabinet housing for your washer. Replace if your existing cabinet is cracked, rusted, dented, or structurally damaged beyond repair.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This replacement holder secures a small appliance component in place to restore proper alignment and reduce vibration. It's a direct-fit bracket designed to hold components steady and prevent movement that can cause noise or malfunction. What it does:

• Keeps the associated component firmly mounted to its chassis or support
• Prevents rattling, misalignment, or intermittent contact caused by a damaged or missing holder
• Helps maintain proper operation of the component it supports
• Common symptoms: visible crack or break in the holder, loose or shifting component, or new noise from the area

• One replacement holder as shown

• Disconnect power and/or water supply before beginning any repair
• Inspect surrounding parts for damage before installing the new holder
• Basic hand tools are typically required; avoid overtightening fasteners

A hanger pivot is a small rotating bracket or support piece that allows a hanging component—such as a door shelf, panel, or interior part—to swing or adjust freely within your appliance. It provides the pivot point needed for smooth, controlled movement. Replace this part if a hanging component feels loose, won't pivot correctly, or if the pivot itself is cracked or broken.

Replacement mounting bracket holder that secures internal washer components. Needed when your original bracket is cracked, broken, or missing.

Fix a washer that won't drain or shows an OE error code with a new drain pump. This 10-minute DIY repair removes standing water and restores proper drainage.

This drain hose directs used water from your washer to the household drain. Replace if cracked, split, leaking, or chewed through by rodents.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
