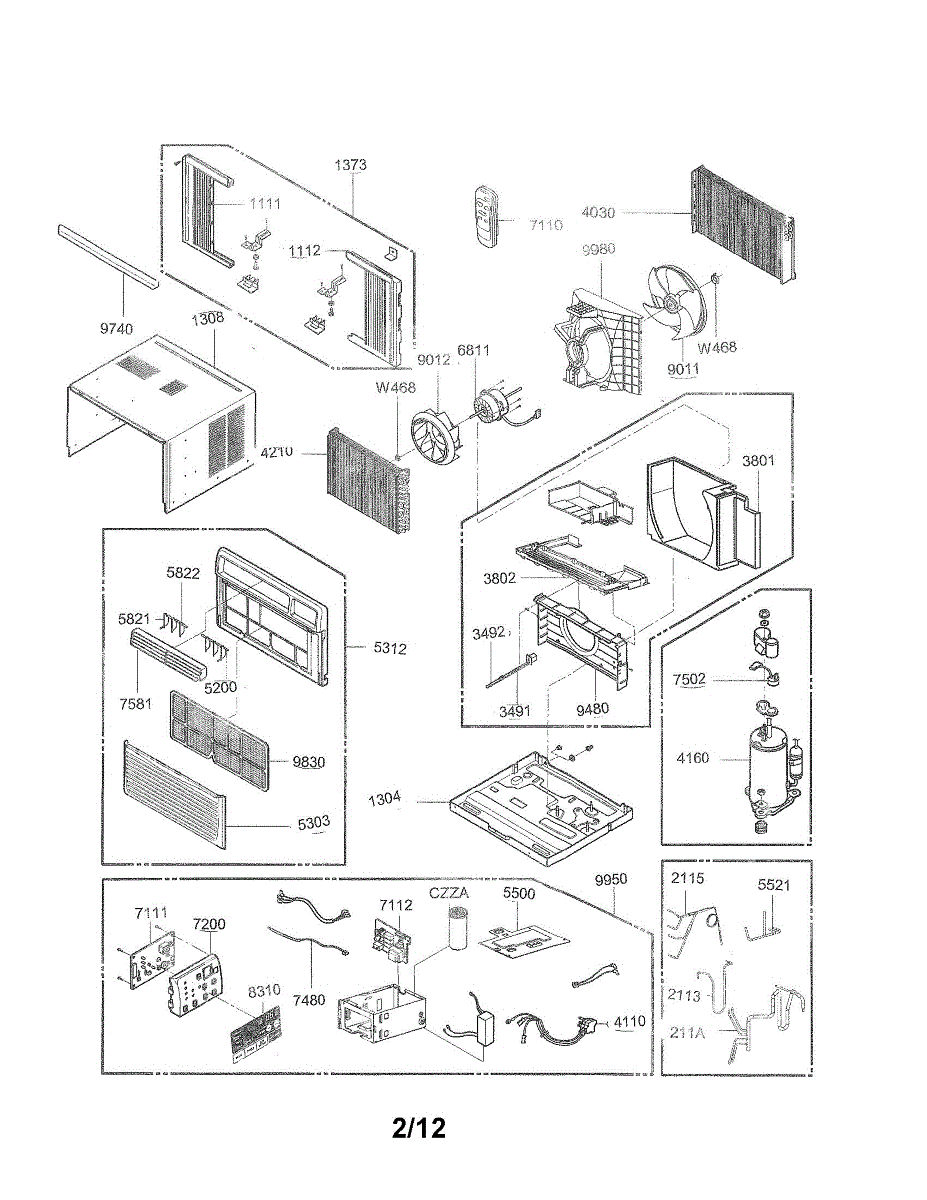

Parts for Lg LW8011ER: Exploded View Part Parts

This vent damper assembly keeps outside air and pests from entering the appliance while allowing exhaust to exit freely. It restores proper airflow and helps prevent cold drafts or backflow when the appliance is off. What it does

• Serves as the one-way flap for the external vent, opening during exhaust and closing afterward.
• Stops outside air and pests from entering the ducting when the appliance is idle.
• Helps reduce backdrafts that can affect drying or venting performance.
• Can reduce stray airflow and cold drafts into the laundry area.

• One vent damper assembly.

• Always disconnect power (and gas supply for gas appliances) before servicing.
• Access typically from the rear vent outlet or through the exterior vent hood; basic hand tools required.
• Ensure correct orientation so the flap opens outward with exhaust airflow.
• Inspect surrounding seal and ductwork; replace any damaged screws or gaskets during reassembly.

This Power Cord Assembly restores the main electrical connection so your appliance can receive consistent power. It replaces a damaged or worn cord to help stop power loss and reduce electrical arcing risks. What it does:

• Provides the primary power feed from the wall outlet to the appliance
• Replaces frayed, cut, or melted cords that cause intermittent power or no-power symptoms
• Restores a secure plug and wiring connection to prevent sparking or loose contact
• Works as the factory-style cord assembly used by the manufacturer

• One power cord assembly

• Disconnect the appliance from the power source before starting any work
• Route the cord and secure any strain relief or mounting clips exactly as the original
• Inspect connectors for proper seating and tighten terminal screws as needed

This single-phase AC motor is a direct-replacement motor used to drive the appliance's rotating components. It restores normal operation and helps eliminate issues caused by a failed drive motor. What it does:

• Turns the drum/agitator or other driven parts so the appliance can tumble, spin, or operate normally.
• Common symptom: appliance won't start or won't rotate when expected.
• Common symptom: loud grinding, humming, or unusual motor noise during operation.
• Common symptom: intermittent operation or motor stalls under load.

• Disconnect power before beginning any repair to avoid shock or injury.
• Remove appropriate panels and components to access the motor; keep fasteners organized for reassembly.
• Match wiring harness and mounting points exactly; reconnect wires by color/position and secure all fasteners.
• Test the appliance after installation and observe one full cycle to confirm correct operation.

This remote controller assembly is the complete handheld control used to operate compatible appliances, restoring lost or damaged remote control functions for convenient, wireless operation. What it does:

• Sends the appliance's infrared/remote commands to control settings and cycles
• Replaces a broken, unresponsive, or missing remote to regain full remote functionality
• Helps resolve symptoms like no response from remote, intermittent command reception, or damaged buttons
• Works as the user-facing control interface for selecting modes, temperatures, or timed functions

• One remote controller assembly (as shown)

• Replace with the power source removed and follow the appliance manual for pairing or setup
• Handle electronic components carefully; avoid moisture and static discharge
• If the original remote used batteries, install fresh batteries and test operation after replacement
• If commands still fail, verify line-of-sight to the appliance and that the appliance receiver is powered

The Axial Fan is an OEM part for LG air conditioners. It is designed to circulate air across the evaporator and condenser coils, ensuring efficient heat exchange and cooling performance. This fan is crucial for maintaining the airflow needed to keep your air conditioner functioning optimally.

Causes of a bad axial fan can include wear and tear over time, debris buildup on the fan blades, or motor failure. Such issues can impede the fan's ability to rotate properly, reducing the efficiency of your air conditioning unit.

Symptoms of a bad axial fan include:

• Reduced cooling performance
• Unusual noises during operation
• The air conditioner cycling on and off frequently
• Increased energy consumption due to inefficient cooling

This OEM LG part is also compatible with Sears/Kenmore.

This air filter assembly helps keep interior air fresh by capturing odors and airborne particles in compatible LG appliances. It replaces a worn or dirty filter assembly so the appliance can maintain cleaner-smelling air. What it does:

• Houses the replaceable filter media that helps reduce odors and common airborne particles
• Restores proper airflow through the appliance's air-cleaning path when worn or clogged
• Helps maintain a fresher-smelling interior environment between service intervals
• Serves as the factory replacement component designed to match original fit and function

• Disconnect power to the appliance before accessing internal components.
• Handle the assembly carefully to avoid damaging the filter media or housing.
• Follow the appliance manufacturer's instructions for removing and installing the assembly.
• Replace periodically or when performance declines; dispose of used filter media per local regulations.
