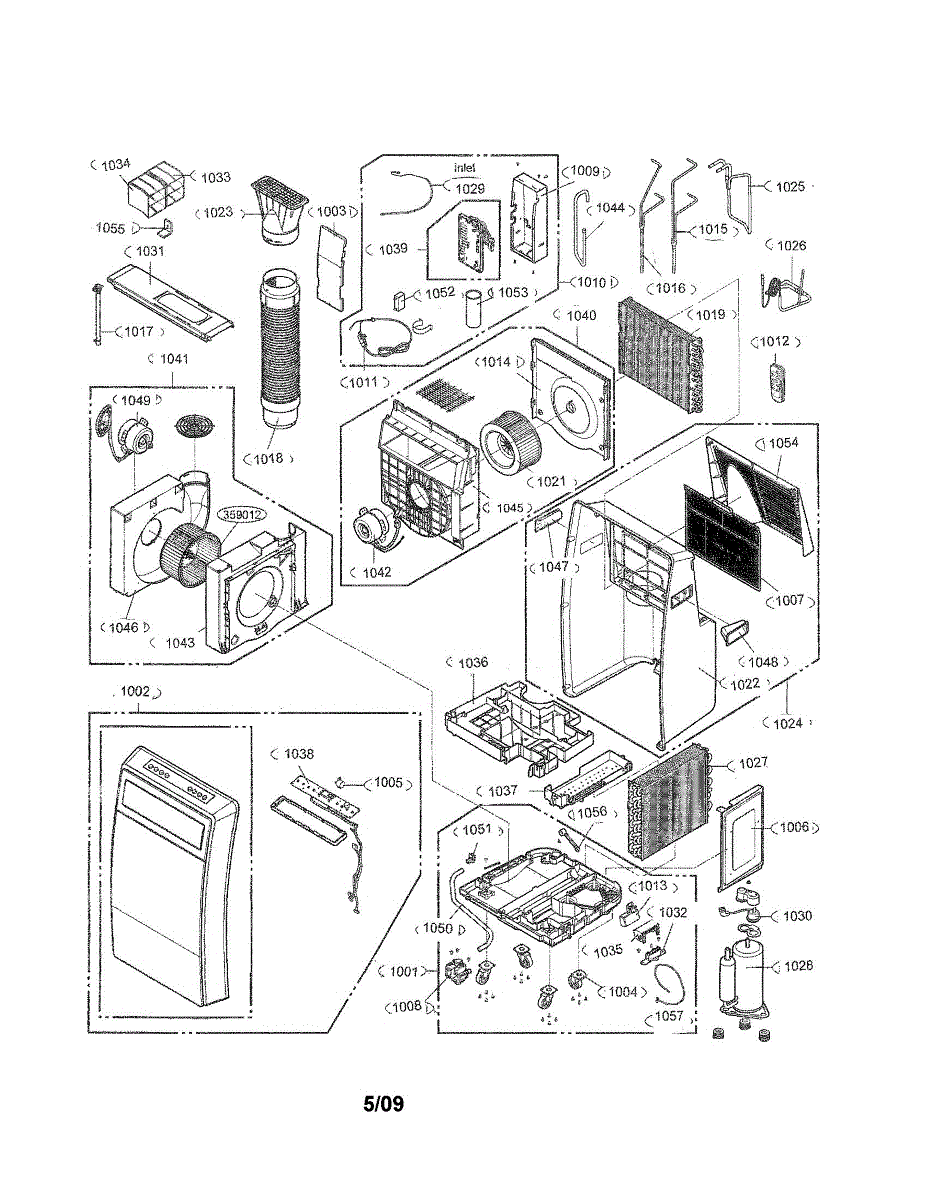

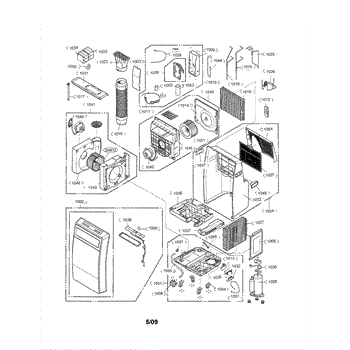

Parts for Lg LP1200DXR: Exploded View Parts

Exploded View
Package Unit

Parts for Lg LP1200DXR: Exploded View Parts

Location on Diagram
Part Description
Price & Availability
1001

Base Assembly, Single

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1002

Front Grill Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1003

Cover Assembly,Control

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1004

Roller

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1005

Motor Assembly,Dc,Stepping

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1006

Supporter

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1007

Air Filter

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1008

Pump,Water

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1009

Case,Control

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1010

Control Case Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1011

Power Cord Assembly

By: Lg

More
$82.74
Compare At:
$99.29
You Save:
$16.55

IN STOCK
Ships Today Guaranteed
Add to Cart
1012
Product photo

Remote Controller Assembly

5.0 (2)
By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1013

Damper Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1014

Orifice

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1015

Evaporator Tube Assembly, Inner

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1016

Tube Assembly,Evaporator(Out)

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1017

Hose Assembly,Drain

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1018
Product photo

Duct Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1019

Evaporator Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1021

Fan,Blower

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1022

Grille,Rear

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1023
Product photo

Grille Assembly,Discharge(Outdoor)

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1024

Grille Assembly,Rear

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1025

Tube Assembly,Condenser(In)

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1026

Outer Condenser Tube Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1027

Condenser Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1028

Compressor Set

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1029
Product photo

Thermistor,Ntc

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1030
Product photo

O.L.P Mra12053-12004

By: Lg

More
$14.72
Compare At:
$17.66
You Save:
$2.94

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1031
Product photo

Install Part Assembly,Set

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1032

Guide

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1033

Cover

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1034

Cover

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1035

Cover

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1036

Pan,Drain

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1037

Pan,Drain

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1038

Display Power Control Board Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1039

Main Pcb Power Control Board Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1040

Housing Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1041

Housing Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1042

Motor Assembly,Ac,Single

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1043

Orifice

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1044

Suction Tube Assembly

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1045

Air Guide

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1046

Air Guide

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1047

Handle

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1048

Handle

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1049

Motor Assembly,Ac,Single

By: Lg

More
$151.40
Compare At:
$181.68
You Save:
$30.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1050

Connector,Hose

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1051

Connector,Hose

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1052

Capacitor,Film,Box

By: Lg

More
$21.52
Compare At:
$25.61
You Save:
$4.09

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1053

Capacitor (Electric Appliance)

By: Lg

This electric appliance capacitor helps the motor start and run smoothly by storing and releasing energy when needed. Replacing a failing capacitor restores reliable motor operation and can stop intermittent starts or motor humming. What it does:

  • Provides the electrical boost motors need to start and maintain normal operation
  • Commonly used on compressor or drive motors in household appliances
  • Symptoms of a failing capacitor: humming motors, slow or no start, intermittent operation, or frequent tripping
  • Matches OEM function and mounting for direct replacement when the part number aligns
What's included:
  • One electric appliance capacitor
Install notes:
  • Always disconnect power at the breaker or unplug the appliance before servicing
  • Capacitors can hold charge—discharge safely and use insulated tools
  • Verify replacement part number and terminal orientation before installation

More
$120.95
Compare At:
$145.14
You Save:
$24.19

IN STOCK
Ships Today Guaranteed
Add to Cart
1054

Case

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1055

Bracket

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1056

Cap

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

1057

Harness, Single

By: Lg

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
