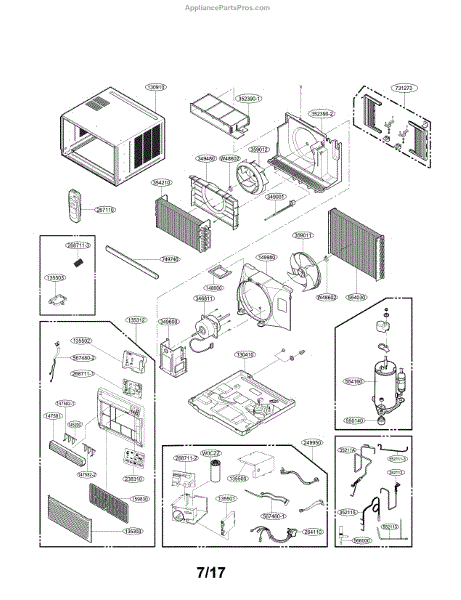

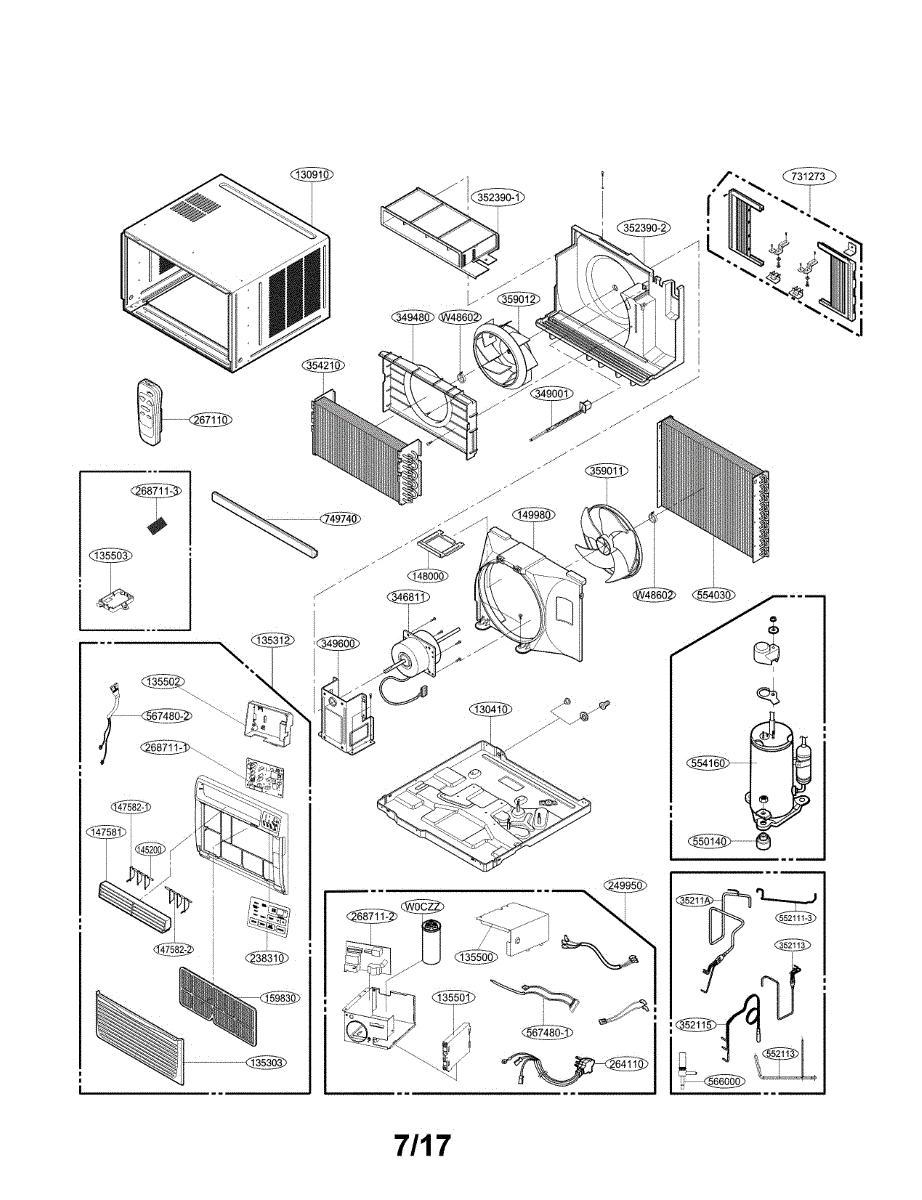

Parts for Kenmore 580.77247710 (58077247710, 580 77247710): Exploded View Parts

This suction tube assembly routes the appliance's suction line to restore proper fluid/air transfer and help stop leaks or performance loss. It replaces a worn, cracked, or blocked suction tube to return normal operation. What it does:

• Channels suction flow between components so systems can move fluid/air as designed
• Replaces cracked, split, or clogged tubing that can cause leaks or loss of performance
• Helps stop visible leaking or reduce unusual suction/flow noise related to damaged tubing
• Restores sealed connections when original tube fittings are worn or brittle

• One suction tube assembly

• Disconnect power and water before starting any repair
• Inspect mating fittings and seals; replace O-rings or clamps if worn
• Handle gently to avoid kinking the tube; ensure correct routing and secure clamps
• Run appliance through a test cycle and check carefully for leaks after installation

This clamp secures a line or connection inside your appliance, maintaining a tight fit under vibration. Replacing a fatigued clamp helps prevent leaks or disconnections and keeps components anchored so the system operates reliably.

• Holds a line/fitting firmly to keep the joint sealed and secure
• Helps prevent leaks or disconnections at hose/tube connections
• Resists vibration that can loosen fittings during operation
• Replace if bent, weakened, or corroded, or if the connection repeatedly loosens

• Disconnect power and, if applicable, shut off water supply before service
• Note clamp orientation and routing; seat the clamp just behind the fitting bead/stop
• Use the correct tool for your clamp style to compress or tighten evenly
• After reassembly, restore utilities and test for leaks or movement

Replace the base assembly on your room air conditioner if the original is cracked, damaged, or missing. Installs at the bottom for structural support.

Cabinet assembly for room air conditioners. Replaces damaged, cracked, or worn outer housing. Essential structural component for unit protection.

Captures odors and airborne particles to maintain fresh, clean air. Replace when dirty or clogged for optimal performance. Verify fit with your model.

Power cord assembly for room air conditioners. Replaces damaged, frayed, or missing cords. Connects unit to wall outlet for electrical power.

Replace a lost or non-responsive air conditioner remote control. This complete assembly restores full operation of temperature, fan speed, and mode settings.

Fix an air conditioner with no display, unresponsive controls, or power issues with this display power control board assembly. Moderate DIY repair.

Fix AC not cooling, fan not running, or display issues. This main power control board regulates temperature, fan speeds, and system operations.

Fix excessive vibration or loud rattling noise in your air conditioner with a new motor mount. Common repair when the unit shakes or hums loudly.

This is the plastic or metal fan blade that mounts onto the condenser fan motor in your air conditioner, drawing air across the condenser coil to release heat and keep the unit running efficiently. Without proper airflow across the condenser, the unit can overheat and lose cooling capacity. Replace it when the blade is cracked, chipped, or damaged, causing unusual noise, vibration, or reduced cooling performance.

Air conditioner not powering on or controls unresponsive? This wiring harness restores electrical connections between components. Moderate DIY repair.

Fix intermittent failures or completely dead components in your air conditioner with this wire harness. Restores power and signal connections.
