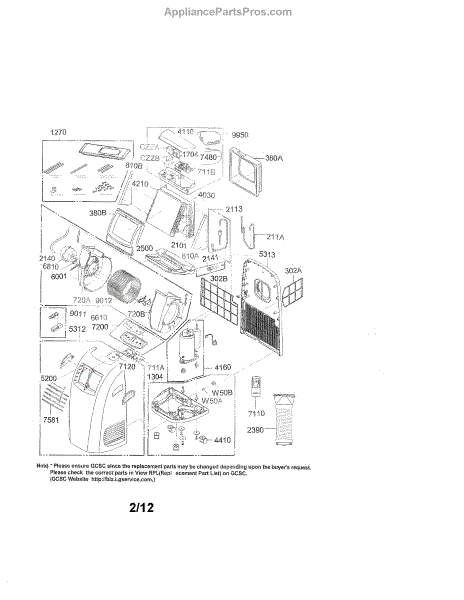

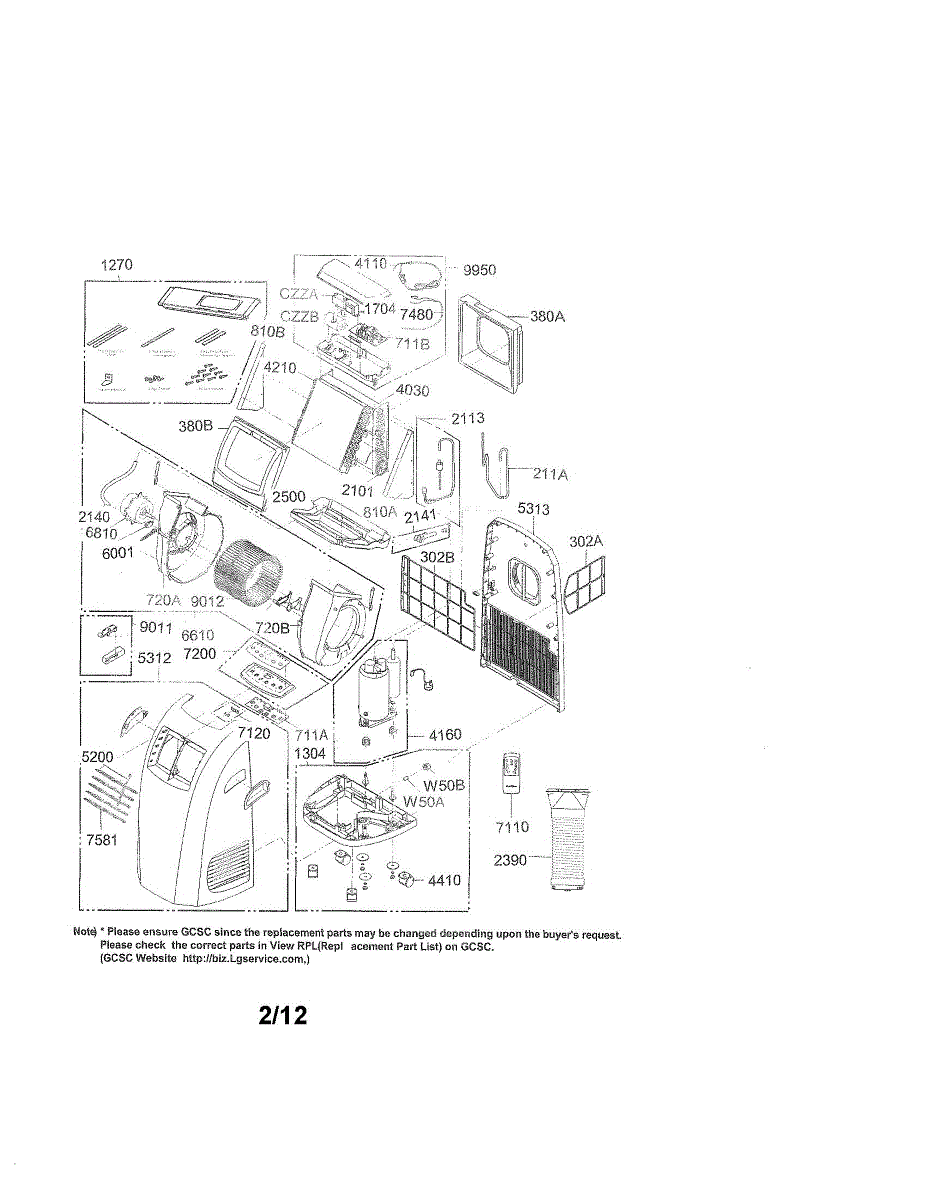

Parts for Lg LP0910WNR: Exploded View Parts

This install part assembly is the exterior cover used to secure and protect internal components during installation and operation, keeping wiring and connectors tucked away for a clean, finished appearance. What it does:

• Covers and secures wiring, connectors or mounting points to prevent snagging and damage
• Helps reduce vibration noise and prevents rubbing against internal components
• Provides a finished look after installation and protects components from dust
• Resolves symptoms like loose panels, rattling, or exposed wiring

• Disconnect power before servicing and follow all safety precautions.
• Basic hand tools are usually required; handle panels gently to avoid breaking clips.
• Confirm orientation and alignment before tightening fasteners to prevent stress on clips.

A replacement rear grille that restores the appliance's rear vent appearance and protects internal components from debris. Helps maintain proper airflow and keeps the back of the unit looking finished. What it does:

• Covers and protects the appliance's rear vent opening from dust and accidental contact
• Helps direct airflow through the appliance's exhaust/vent area
• Reduces risk of debris entering internal components that can affect performance
• Addresses visible damage, cracks, or broken mounting tabs on the rear vent cover

• Disconnect power to the appliance before starting any work.
• Removal and installation typically require basic hand tools (screwdriver); keep fasteners for reuse.
• Handle edges carefully to avoid cuts; replace if mounting tabs or screw bosses are damaged.

This replacement louver is a molded vent grille that restores proper airflow direction and the finished appearance of the vent opening. It replaces a cracked, broken, or missing louver to help vents operate and look as intended. What it does

• Directs and distributes airflow from the vent opening to improve circulation.
• Covers the vent opening to protect internal components from large debris and accidental contact.
• Restores a clean, finished appearance when the original louver is damaged or missing.
• Helps prevent pets and objects from entering the vent area.

• One replacement louver.

• Disconnect power to the appliance before beginning any repair to avoid shock or injury.
• Access may require removing an outer panel or grille; retain screws and fasteners for reassembly.
• Align mounting tabs and snap or fasten the louver into place; verify it sits flush and securely.
• Test airflow and inspect for gaps after installation; if movement or gaps persist, recheck alignment and fasteners.

This blower fan assembly replaces the outer blower used to circulate air in the appliance, restoring proper airflow for drying or ventilation. Designed to fit the OEM mounting and restore normal air movement. What it does:

• Spins to move air through the appliance's airflow path for efficient operation
• Helps remove moisture and heat to improve drying/cooling performance
• Reduces symptoms like weak airflow, longer cycle times, or poor ventilation when worn or damaged
• Works with the existing motor/housing when the assembly is intact

• One complete outer blower fan assembly as shown

• Disconnect power before starting any repair to avoid shock or injury
• Handle the impeller carefully to avoid bending blades; ensure proper alignment on reassembly
• If noise, vibration, or motor issues persist after installation, inspect motor and mounts per OEM guidance
