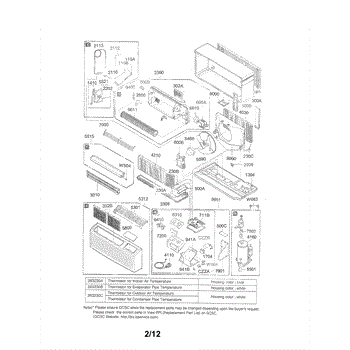

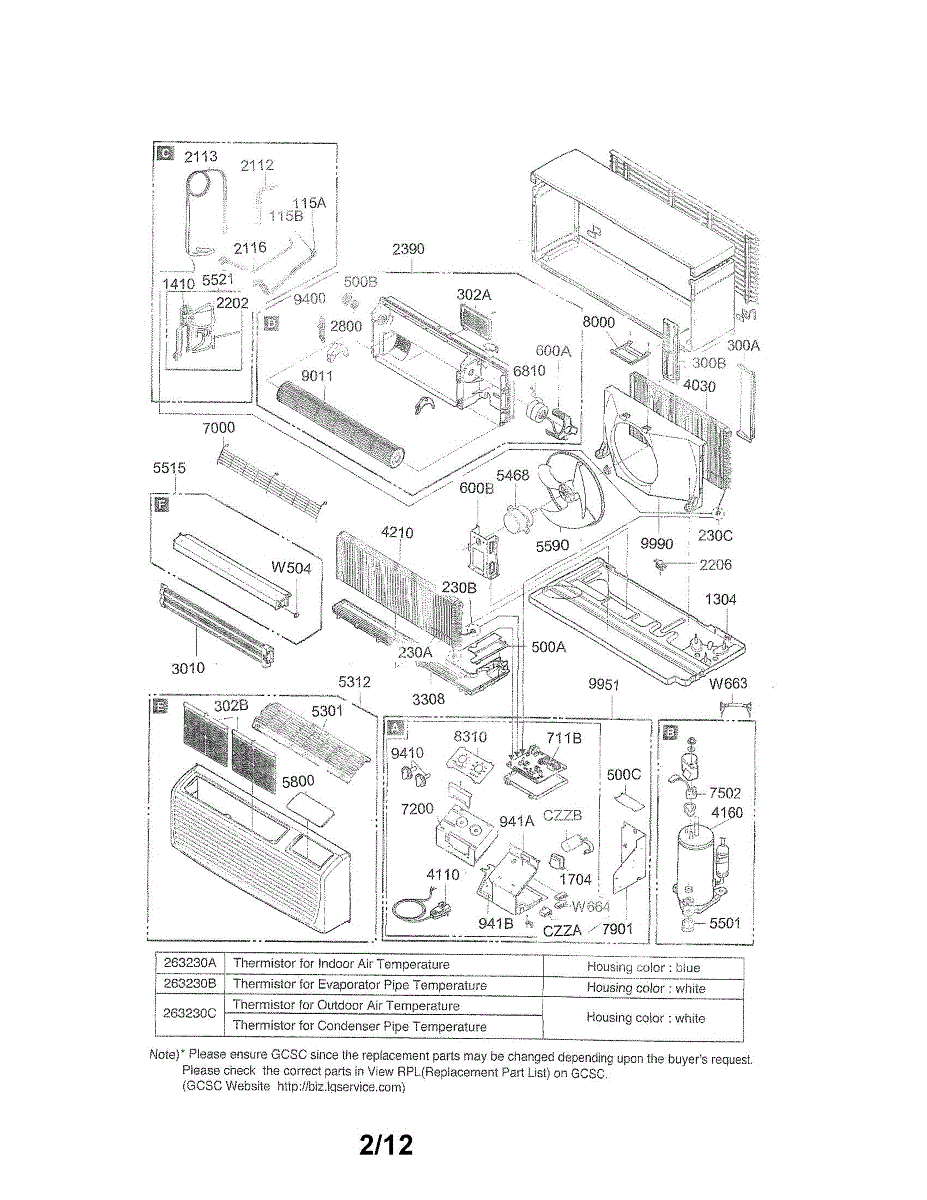

Parts for Lg LP121HEM-Y8: Exploded View Parts

This linear transformer supplies low-voltage control power to the appliance, enabling timers, relays and control circuits to operate reliably. It restores proper control voltage when the original transformer has failed. What it does:

• Converts incoming mains to the appliance's required low-voltage control supply for timers and relays.
• Restores correct control-circuit operation when symptoms include no display, non-responsive controls, or intermittent cycle starts.
• Prevents erratic control behavior caused by a weak or failed transformer.
• Used wherever the control board requires a dedicated low-voltage feed.

• One linear control transformer.

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock.
• Verify wiring color/terminal locations and note connections before removing the old transformer.
• Handle with care; secure transformer and wiring to prevent strain or contact with hot surfaces.

The Discharge Grille is an OEM part for LG air conditioners. It is strategically placed at the air discharge point of the unit, facilitating the directional flow of cooled air into the room. This grille not only helps to evenly distribute air throughout the space but also protects the internal components of the air conditioner by preventing the ingress of large particles that could cause damage or impede performance.

Symptoms of a bad Discharge Grille include:

• Restricted air flow, leading to inefficient cooling,
• Excessive noise as air passes through cracks or breaks in the grille,
• Visual deformities or detachment from the air conditioner unit, affecting overall functionality.

Causes of discharge grille damage often involve physical impacts, prolonged exposure to environmental conditions that can degrade materials, or improper handling during maintenance or cleaning.

This OEM LG part is also compatible with Sears/Kenmore.
