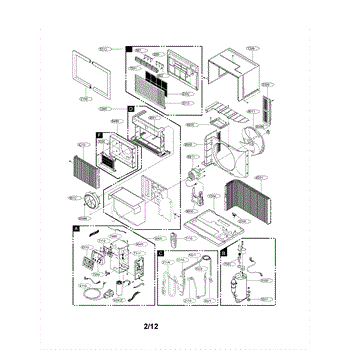

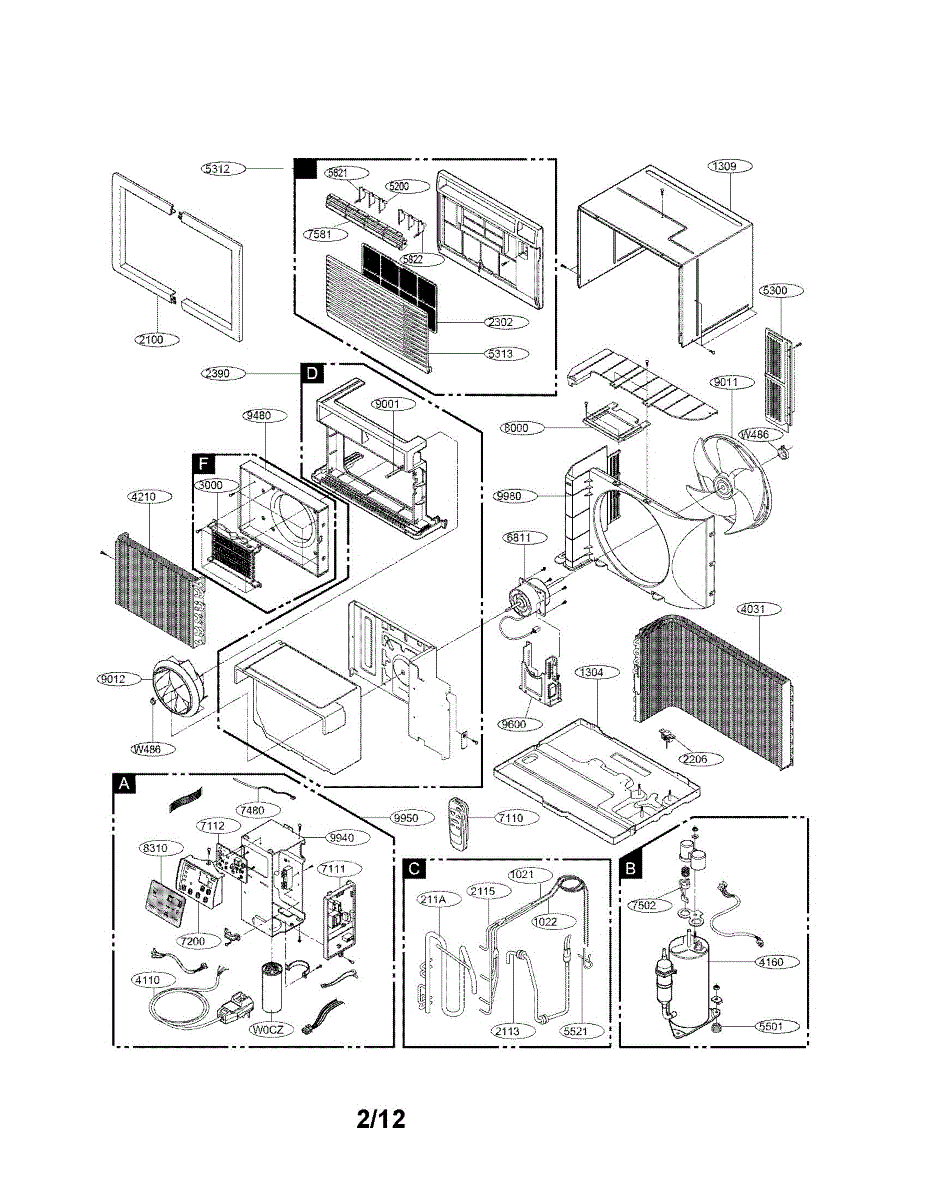

Parts for Lg LT1230HR-Y7: Exploded View Parts

This boxed film capacitor provides stable noise suppression and transient protection for appliance control circuits, helping motors and electronic boards run more reliably. It replaces a damaged or failing capacitor to restore normal electrical filtering. What it does:

• Smooths voltage spikes and reduces electrical noise that can interfere with control boards.
• Helps prevent nuisance tripping and erratic control behavior caused by transients.
• Common symptom indicators: intermittent control errors, humming or motor performance issues, or failure to start.
• Works as part of the appliance's power/filtering network to protect sensitive electronics.

• Always disconnect power at the breaker and verify power is off before servicing.
• Capacitors can hold charge—discharge safely and use insulated tools when handling.
• Replace with the exact OEM part number to ensure proper fit and electrical characteristics.

This clamp secures a line or connection inside your appliance, maintaining a tight fit under vibration. Replacing a fatigued clamp helps prevent leaks or disconnections and keeps components anchored so the system operates reliably.

• Holds a line/fitting firmly to keep the joint sealed and secure
• Helps prevent leaks or disconnections at hose/tube connections
• Resists vibration that can loosen fittings during operation
• Replace if bent, weakened, or corroded, or if the connection repeatedly loosens

• Disconnect power and, if applicable, shut off water supply before service
• Note clamp orientation and routing; seat the clamp just behind the fitting bead/stop
• Use the correct tool for your clamp style to compress or tighten evenly
• After reassembly, restore utilities and test for leaks or movement

This trim piece restores the cabinet or control area's finished appearance and covers the appliance edge where panels meet. It replaces cracked, chipped or loose trim to make the exterior look complete again. What it does:

• Provides a finished, decorative edge around a door, control panel or panel seam
• Hides gaps and covers mounting hardware for a cleaner look
• Replaces damaged or cracked trim that affects appearance
• Helps keep panel edges aligned and reduces snagging on clothing

• One replacement trim piece as shown

• Disconnect power before starting work if trim removal affects electrical components
• Trim is usually held by clips or screws; carefully pry or remove fasteners to avoid damage
• Handle gently to prevent cracking; lost or broken clips may need separate replacement

This power cord assembly supplies mains power to your appliance and replaces a worn, damaged, or broken cord to restore reliable electrical connection. Designed to match the original cord form and plugged connection for a direct replacement. What it does

• Delivers AC power from the wall outlet to the appliance's inlet.
• Replaces frayed, cut, or heat-damaged cord that can cause intermittent power or no power.
• Restores a secure plug connection when the plug or wiring is loose or exposed.
• Helps prevent arcing and unsafe connections when the original cord is compromised.

• One power cord assembly.

• Always unplug the appliance or shut off power at the breaker before installing.
• Installation is typically a direct swap; route the cord and secure strain relief as original.
• Verify the cord's connector seats fully and that wiring matches the appliance inlet polarity.

This isolator routes microwave energy between the magnetron and waveguide to help protect components and maintain consistent heating performance. Replacing a failed isolator can restore reliable cooking and help prevent further high-voltage damage. What it does:

• Directs RF energy from the magnetron into the waveguide/cavity
• Helps protect the magnetron by reducing reflected energy
• Aids in preventing arcing or burn damage in the waveguide area
• Common symptoms of failure: no heat or uneven heating, loud humming/buzzing, visible arcing/burn marks near the waveguide

• 1 isolator

• Disconnect power and discharge the high-voltage capacitor before servicing; risk of electric shock
• Handle waveguide components carefully; avoid contaminating RF surfaces and note exact orientation
• Take photos of the original setup to match positioning and fastener locations

Restore full remote control function with this replacement remote controller assembly. Replaces a damaged or unresponsive remote PCB and button cluster so the unit responds reliably to power, volume, input and menu commands. What it does:

• Replaces the internal circuit board and button interface that transmit IR/remote signals.
• Fixes symptoms like unresponsive or intermittent buttons, no power or no signal from the remote.
• Restores control of common functions such as power, volume, input selection and menu navigation.
• Useful when buttons are stuck, the remote was dropped, or the internal electronics are damaged.

• Remove batteries and disconnect power from the appliance before replacing the assembly.
• Handle the PCB by its edges to avoid damage from static or oils; keep small screws and clips organized.
• Reassemble the remote housing carefully to avoid pinching ribbons or misaligning buttons.

This control panel is the user-interface fascia you touch to select and view settings. Replacing a damaged panel restores a secure, readable surface and proper alignment for the buttons and display behind it.

• Provides the labeled surface for selecting functions and settings
• Supports and aligns the keypad/display or switch board mounted behind it
• Helps shield internal controls from light impacts, dust, and splashes
• Typical symptoms: cracked/broken panel, loose mounting tabs, worn/illegible markings, buttons difficult to press due to misalignment

• Disconnect power before servicing
• Remove screws/clips securing the existing panel; carefully lift it away
• Transfer any reusable components from the original panel as required
• Reinstall panel, secure fasteners, and test all buttons before full reassembly

The A/C Condenser Fan Blade is an OEM part for LG air conditioners. This fan blade is responsible for drawing air through the condenser coils to dissipate heat, ensuring the air conditioner operates efficiently and effectively.

Over time, the condenser fan blade can become damaged or worn out due to exposure to outdoor elements, debris, or physical impact. Additionally, regular use can lead to wear and tear, affecting the fan blade’s performance.

Symptoms of a bad A/C condenser fan blade include:

• Reduced cooling efficiency
• Unusual noises such as rattling or clanking from the fan area
• The fan not spinning or spinning unevenly
• The air conditioner frequently cycling on and off due to overheating

This OEM LG part is also compatible with Sears/Kenmore models.
