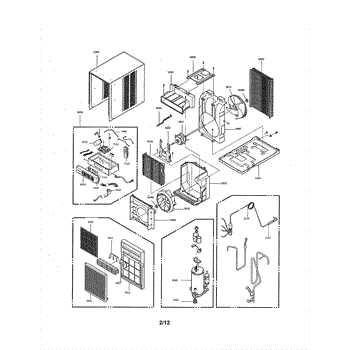

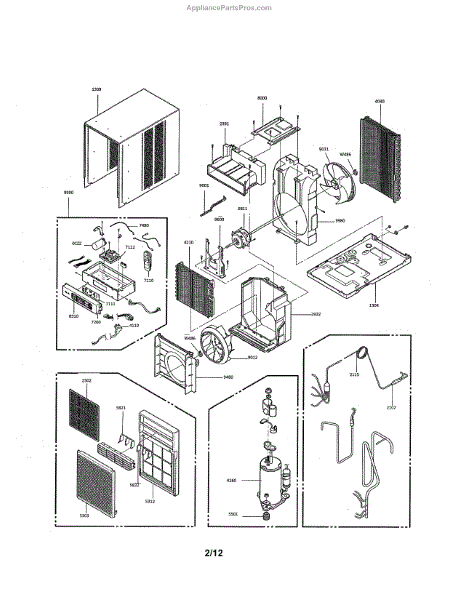

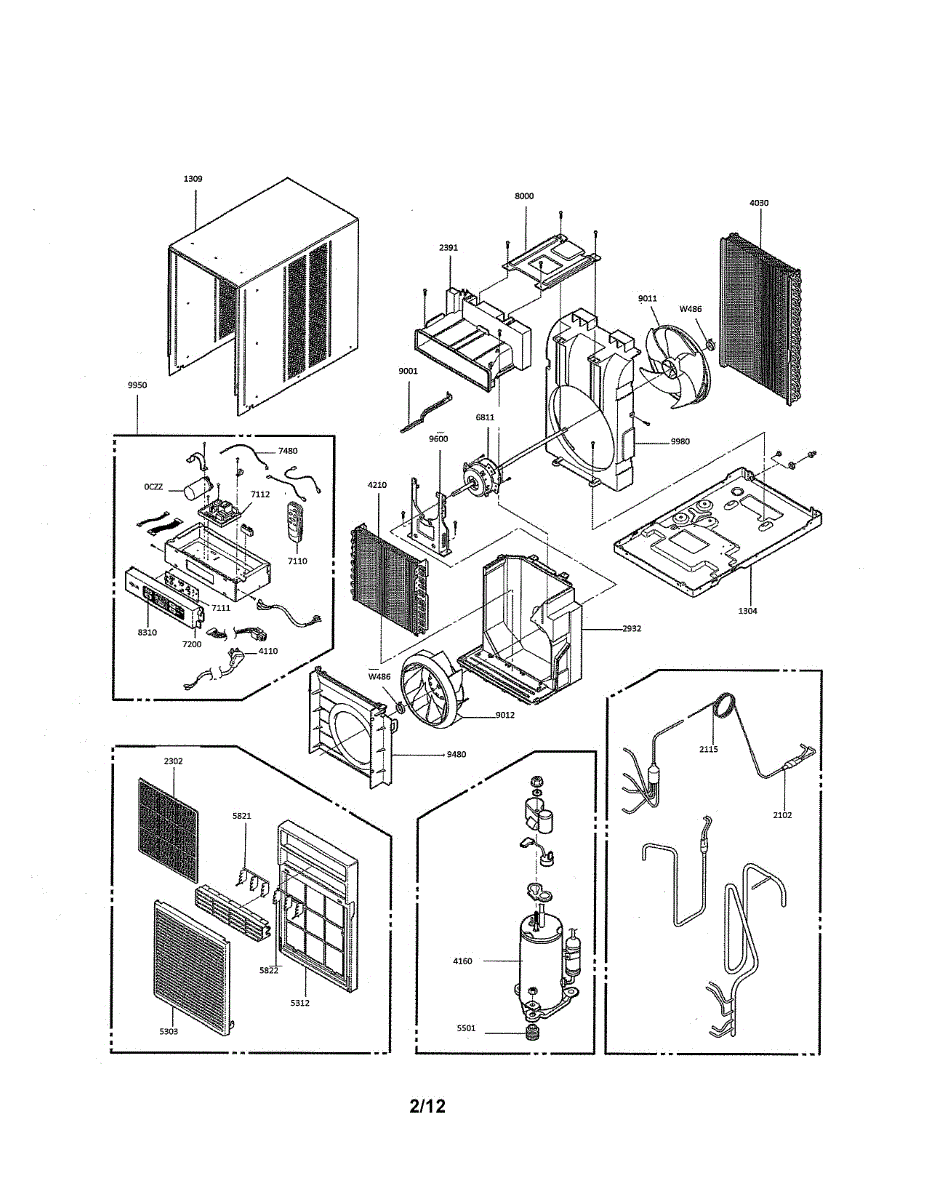

Parts for Lg LW1010CR: Exploded View Parts

This remote controller assembly replaces a malfunctioning TV remote control PCB and housing to restore infrared/IR command transmission and on-unit button control. Ideal when the remote stops responding or buttons become unresponsive. What it does:

• Replaces the internal PCB and button assembly that sends IR signals to the TV.
• Restores remote control functions like power, volume, channel, and input selection.
• Helps resolve symptoms such as no response from the remote, intermittent commands, or stuck/non-working buttons.
• Works with the existing remote cover and batteries if those components are reused.

• Disconnect power to the TV and remove batteries from the remote before replacing the assembly.
• Use appropriate small screwdrivers and keep track of screws and clips; handle the PCB by its edges to avoid damage.
• Reassemble carefully, insert fresh batteries, and test all functions after installation.

This NTC thermistor assembly is the temperature-sensing probe and harness the control uses to read actual temperatures and regulate operation. Replacing a failed sensor restores accurate temperature feedback for consistent performance and proper cycling. What it does:

• Senses temperature via a negative temperature coefficient element; resistance decreases as temperature rises
• Sends the signal to the control board to manage operation and cycle timing as designed
• Typical symptoms include inaccurate temperatures, not maintaining set temperature, extended run times or short cycling, and sensor-related error codes
• Often reads out of range when tested at known temperatures

• One NTC thermistor assembly

• Disconnect power to the appliance before servicing; turn off water supply if applicable
• Note original sensor placement, routing, clips, and insulation before removal
• Install the new assembly; route wiring away from sharp edges, heat, and moving parts; secure any clips/insulation as found
• Restore power and run a diagnostic or allow the unit to stabilize, then verify operation

This capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy as needed. Replacing a failing capacitor restores proper motor performance and can stop intermittent operation. What it does:

• Provides the electrical phase shift needed for the motor to start and maintain rotation
• Commonly linked to symptoms such as humming, motor not starting, intermittent spin, or reduced performance
• Supports stable motor operation under load to prevent stalling
• Works as a direct-fit electrical component when matching the correct part number

• One capacitor

• Disconnect power to the appliance before servicing to avoid shock
• Discharge the capacitor before handling; use insulated tools and follow safety procedures
• Inspect wiring and connectors for damage and replace any faulty harnesses
