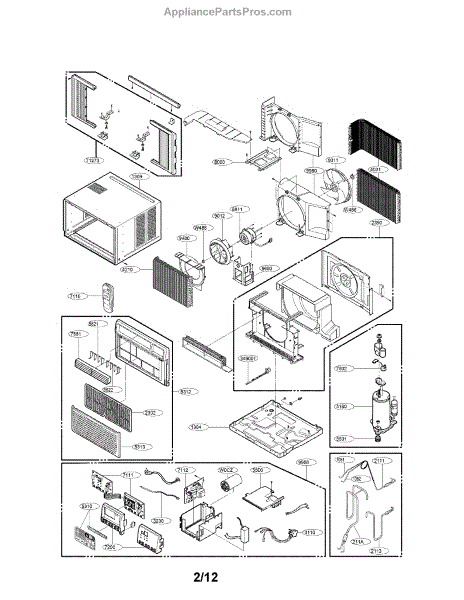

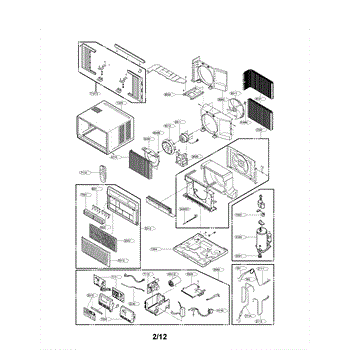

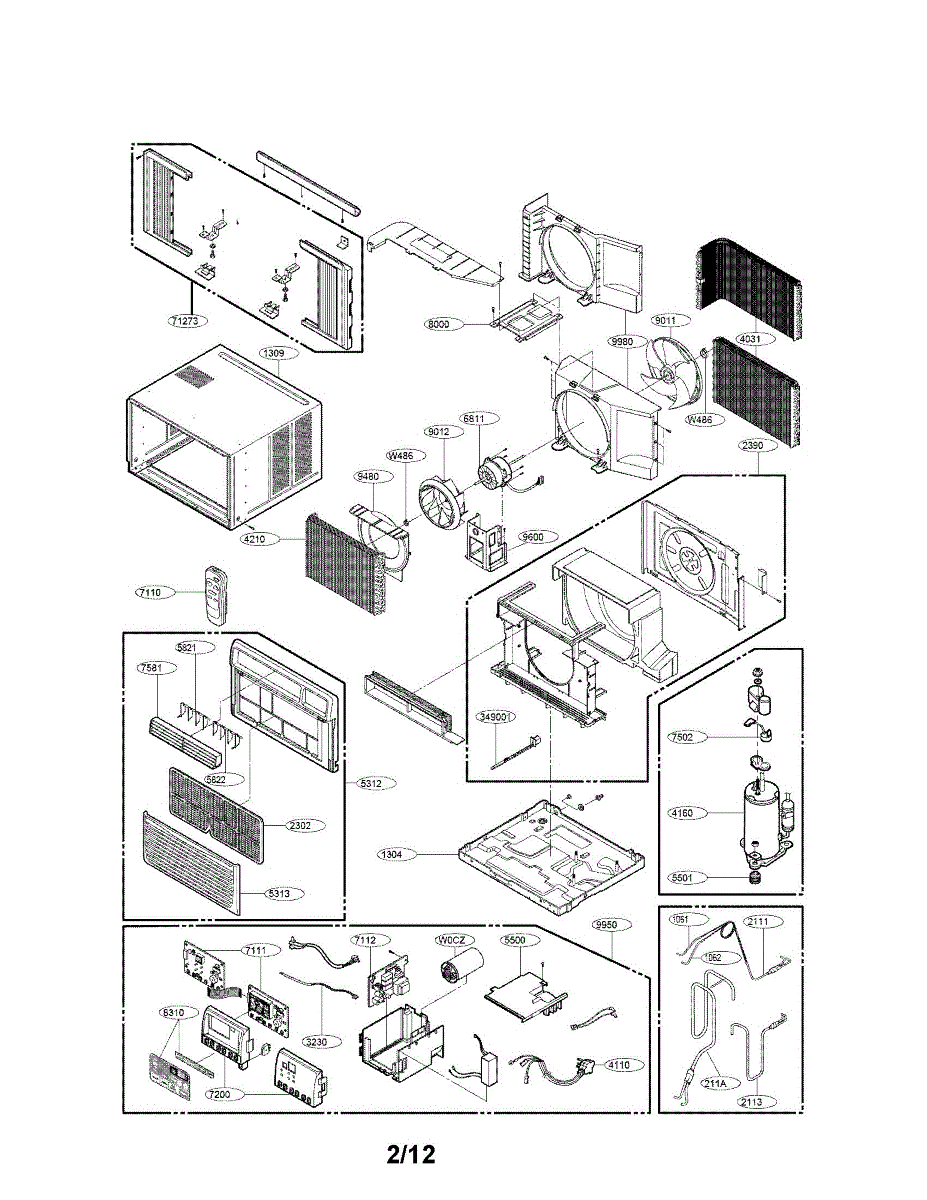

Parts for Lg LWHD1500ER: Exploded View Parts

This drawing capacitor helps provide the extra electrical boost motors need to start and run smoothly, restoring normal operation and reducing strain on the motor. It's a direct-fit replacement when the original capacitor fails. What it does:

• Supplies a timed voltage boost to assist motor startup and rotation
• Helps reduce motor humming, slow starts, or failure to start
• Promotes consistent motor speed during operation for reliable performance
• Can prevent added stress on the motor windings when functioning properly

• One drawing capacitor

• Disconnect power to the appliance before attempting any service
• Capacitors can hold charge—discharge safely and use insulated tools
• Verify correct orientation and secure connections; replace only with the exact part number

This clamp secures a line or connection inside your appliance, maintaining a tight fit under vibration. Replacing a fatigued clamp helps prevent leaks or disconnections and keeps components anchored so the system operates reliably.

• Holds a line/fitting firmly to keep the joint sealed and secure
• Helps prevent leaks or disconnections at hose/tube connections
• Resists vibration that can loosen fittings during operation
• Replace if bent, weakened, or corroded, or if the connection repeatedly loosens

• Disconnect power and, if applicable, shut off water supply before service
• Note clamp orientation and routing; seat the clamp just behind the fitting bead/stop
• Use the correct tool for your clamp style to compress or tighten evenly
• After reassembly, restore utilities and test for leaks or movement

This installation kit includes the manufacturer-specified hardware used to secure and align an appliance during setup. Use it to replace missing or damaged install hardware and restore a safe, stable, factory-correct fit in the opening. What it does:

• Provides required mounting hardware for proper installation
• Helps prevent shifting, rocking, or tipping when the appliance is used
• Aids in correct alignment and spacing within the cabinet/opening
• Replaces lost or damaged original install parts

• One installation kit

• Disconnect power (and gas/water, if applicable) before starting
• Follow your model's installation instructions for bracket locations and fasteners
• Use appropriate anchors for wall/floor material as specified by the manufacturer
• After installation, verify the unit is level and securely anchored

This evaporator assembly replaces the freezer evaporator coil and drain pan to restore proper cold-air circulation and manage defrost water. It's a direct-fit service part used in compatible LG refrigeration units. What it does:

• Circulates refrigerant and removes heat from the freezer compartment to maintain cold temperatures
• Collects and channels defrost water into the drain pan to prevent pooling or ice buildup
• Helps resolve symptoms such as poor cooling, frost accumulation on the evaporator, or water leaking/overflow in the freezer area
• Works with the appliance's defrost system; a failed evaporator can trigger frequent defrost cycles or temperature fluctuations

• One evaporator assembly

• Disconnect power before beginning any repair and work on a stable, dry surface
• Access usually requires removing freezer panels and possibly the evaporator cover; keep track of fasteners and seals
• Inspect and replace related gaskets, insulation, or drain components as needed to ensure a proper seal and drainage

This isolator routes microwave energy between the magnetron and waveguide to help protect components and maintain consistent heating performance. Replacing a failed isolator can restore reliable cooking and help prevent further high-voltage damage. What it does:

• Directs RF energy from the magnetron into the waveguide/cavity
• Helps protect the magnetron by reducing reflected energy
• Aids in preventing arcing or burn damage in the waveguide area
• Common symptoms of failure: no heat or uneven heating, loud humming/buzzing, visible arcing/burn marks near the waveguide

• 1 isolator

• Disconnect power and discharge the high-voltage capacitor before servicing; risk of electric shock
• Handle waveguide components carefully; avoid contaminating RF surfaces and note exact orientation
• Take photos of the original setup to match positioning and fastener locations

This remote controller assembly is the complete handheld control used to operate compatible appliances, restoring lost or damaged remote control functions for convenient, wireless operation. What it does:

• Sends the appliance's infrared/remote commands to control settings and cycles
• Replaces a broken, unresponsive, or missing remote to regain full remote functionality
• Helps resolve symptoms like no response from remote, intermittent command reception, or damaged buttons
• Works as the user-facing control interface for selecting modes, temperatures, or timed functions

• One remote controller assembly (as shown)

• Replace with the power source removed and follow the appliance manual for pairing or setup
• Handle electronic components carefully; avoid moisture and static discharge
• If the original remote used batteries, install fresh batteries and test operation after replacement
• If commands still fail, verify line-of-sight to the appliance and that the appliance receiver is powered
