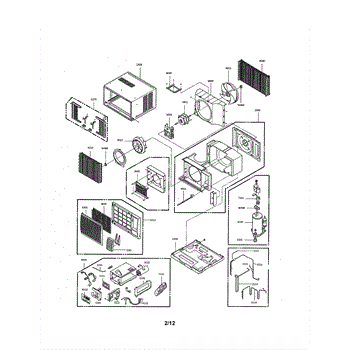

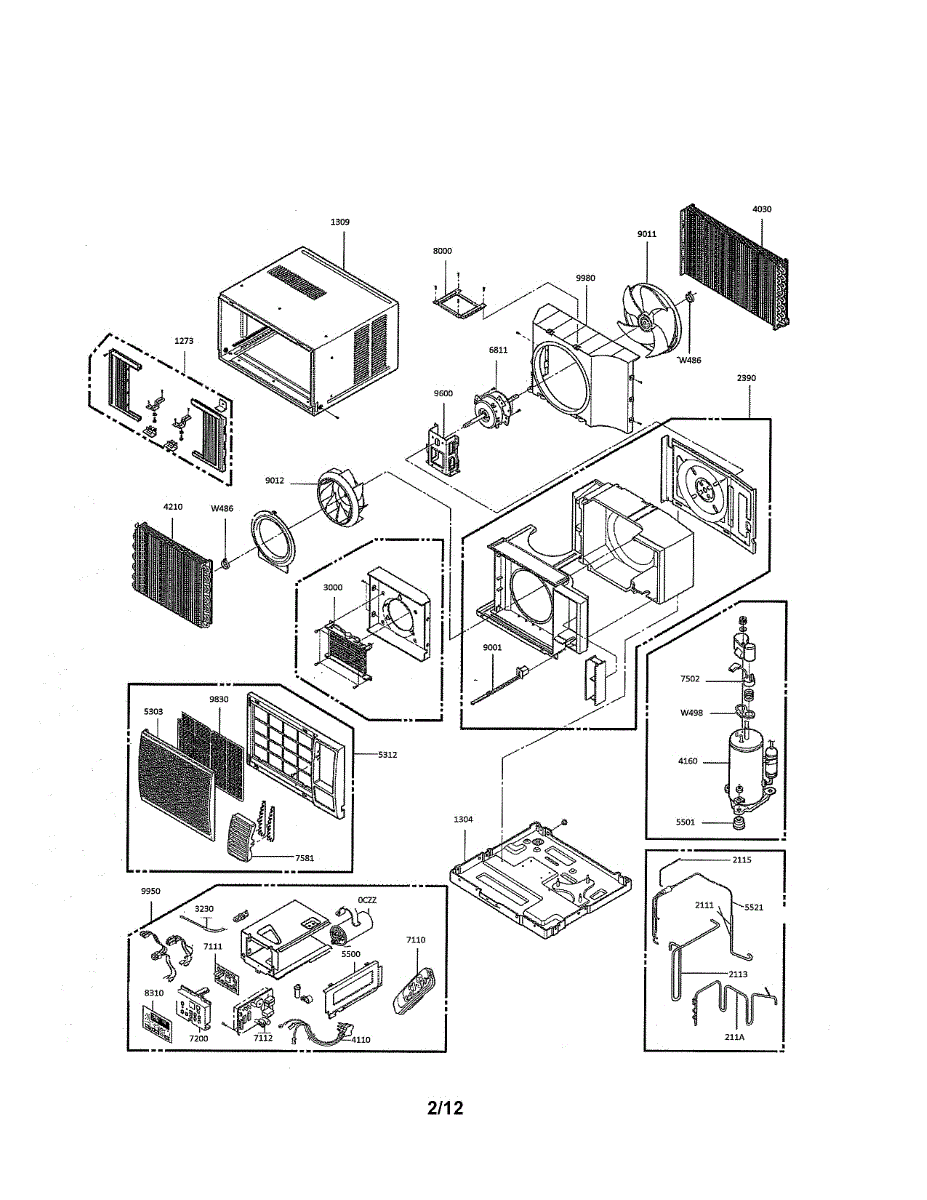

Parts for Lg LWHD7000HRY7: Exploded View Parts

The Thermistor Assembly is an OEM part for LG air conditioners. It is typically located near the evaporator coil or in the air intake area of the unit. It measures the ambient temperature and sends signals to the control board to adjust the cooling output accordingly.

Causes of a faulty or malfunctioning thermistor assembly can include normal wear and tear, exposure to extreme temperatures, or electrical issues. These factors can lead to inaccurate temperature readings, improper cooling performance, or erratic behavior of the air conditioner.

Symptoms of a bad thermistor assembly may include:

• Inconsistent cooling or insufficient cooling
• Inaccurate temperature display on the control panel
• Frequent cycling on and off of the compressor

This OEM LG part can also be used on Kenmore/Sears appliances.

This power cord assembly provides the main AC connection for your appliance so it can receive reliable power. Replacing a damaged cord restores safe, consistent power delivery and reduces risk of intermittent operation or electrical hazards. What it does:

• Supplies AC power from the outlet to the appliance's internal power input
• Replaces frayed, cracked, or damaged wiring that can cause intermittent power or failure to start
• Helps eliminate loose or corroded connector issues that produce sparks, arcing, or burning smells
• Restores a secure, factory-style connection when the original cord is worn or broken

• Disconnect the appliance from power at the outlet before servicing
• Route the cord and secure strain relief exactly as the manufacturer specifies to avoid pinching
• Inspect connectors and terminals for damage; replace the entire assembly if terminals are corroded or insulation is compromised

This compressor isolator is a rubber mount that cushions and reduces vibration and noise from the compressor, helping keep the appliance quieter and preventing metal-to-metal contact. What it does:

• Dampens compressor vibration to reduce noise and rattling
• Helps prevent compressor movement that can strain mounting hardware
• Reduces transfer of vibration to the cabinet and surrounding components
• Commonly replaced when vibration noise or scraping is heard from the base

• One compressor isolator (rubber mount)

• Disconnect power to the appliance before any service and work with the appliance unplugged
• Access may require tilting or moving the appliance; use safe lifting practices and get help if needed
• Inspect surrounding mounts and hardware; replace like-for-like and verify fit before final assembly

This air filter assembly replaces the air-cleaning module in compatible appliances to help reduce odors and improve internal air quality. It installs where the unit's air circulation passes through a replaceable filter media. What it does:

• Traps airborne particles and helps reduce light odors circulating inside the appliance
• Supports the appliance's air-cleaning or deodorizing function when properly installed
• Common symptoms of a failing unit: noticeable odors, reduced air freshness, or degraded odor control
• Should be replaced or serviced according to the appliance manufacturer's maintenance schedule

• Disconnect power or follow appliance shutdown procedures before accessing the filter area
• Replace only with the correct part number; align and seat the assembly fully per the owner's manual
• Handle the filter media gently to avoid damage; do not expose to open flame or harsh chemicals
• For detailed removal and installation instructions
