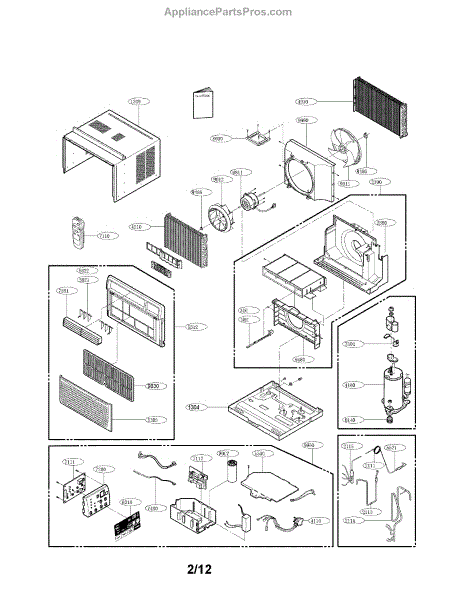

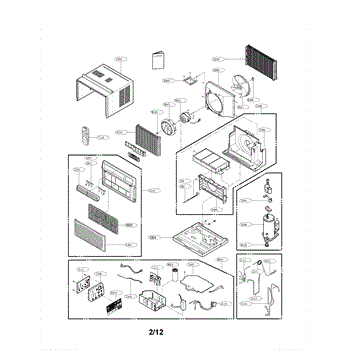

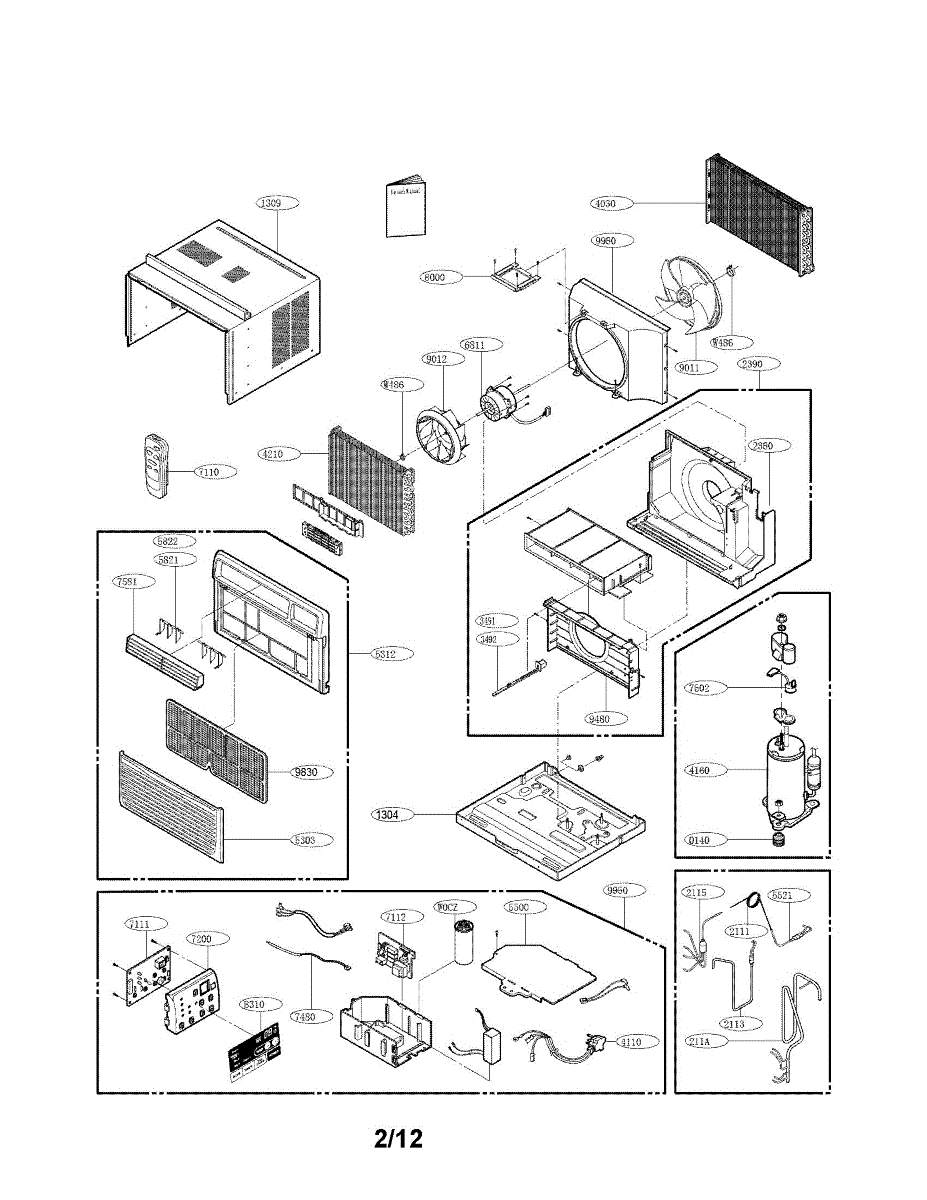

Parts for Lg LWHD8000RY5: Exploded View Parts

This Power Cord Assembly restores the main electrical connection so your appliance can receive consistent power. It replaces a damaged or worn cord to help stop power loss and reduce electrical arcing risks. What it does:

• Provides the primary power feed from the wall outlet to the appliance
• Replaces frayed, cut, or melted cords that cause intermittent power or no-power symptoms
• Restores a secure plug and wiring connection to prevent sparking or loose contact
• Works as the factory-style cord assembly used by the manufacturer

• One power cord assembly

• Disconnect the appliance from the power source before starting any work
• Route the cord and secure any strain relief or mounting clips exactly as the original
• Inspect connectors for proper seating and tighten terminal screws as needed

This compressor isolator is a rubber mount that cushions and reduces vibration and noise from the compressor, helping keep the appliance quieter and preventing metal-to-metal contact. What it does:

• Dampens compressor vibration to reduce noise and rattling
• Helps prevent compressor movement that can strain mounting hardware
• Reduces transfer of vibration to the cabinet and surrounding components
• Commonly replaced when vibration noise or scraping is heard from the base

• One compressor isolator (rubber mount)

• Disconnect power to the appliance before any service and work with the appliance unplugged
• Access may require tilting or moving the appliance; use safe lifting practices and get help if needed
• Inspect surrounding mounts and hardware; replace like-for-like and verify fit before final assembly

This remote controller assembly replaces a malfunctioning TV remote control PCB and housing to restore infrared/IR command transmission and on-unit button control. Ideal when the remote stops responding or buttons become unresponsive. What it does:

• Replaces the internal PCB and button assembly that sends IR signals to the TV.
• Restores remote control functions like power, volume, channel, and input selection.
• Helps resolve symptoms such as no response from the remote, intermittent commands, or stuck/non-working buttons.
• Works with the existing remote cover and batteries if those components are reused.

• Disconnect power to the TV and remove batteries from the remote before replacing the assembly.
• Use appropriate small screwdrivers and keep track of screws and clips; handle the PCB by its edges to avoid damage.
• Reassemble carefully, insert fresh batteries, and test all functions after installation.

The Axial Fan is an OEM part for LG air conditioners. It is designed to circulate air across the evaporator and condenser coils, ensuring efficient heat exchange and cooling performance. This fan is crucial for maintaining the airflow needed to keep your air conditioner functioning optimally.

Causes of a bad axial fan can include wear and tear over time, debris buildup on the fan blades, or motor failure. Such issues can impede the fan's ability to rotate properly, reducing the efficiency of your air conditioning unit.

Symptoms of a bad axial fan include:

• Reduced cooling performance
• Unusual noises during operation
• The air conditioner cycling on and off frequently
• Increased energy consumption due to inefficient cooling

This OEM LG part is also compatible with Sears/Kenmore.
