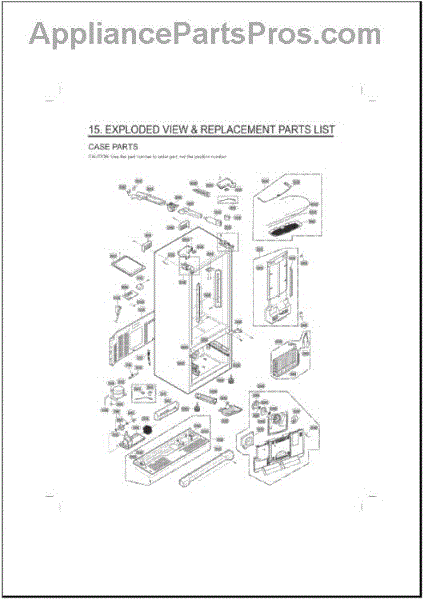

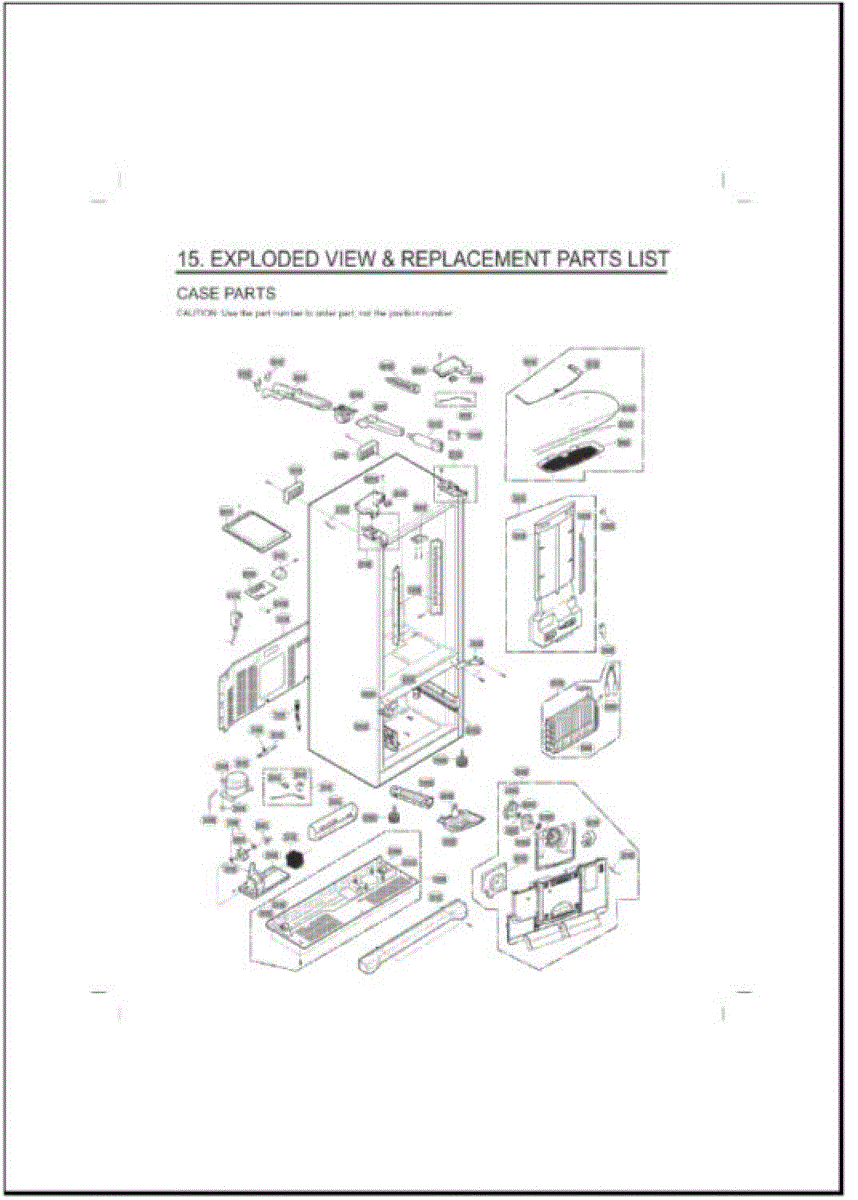

Parts for Lg 48231784412: Exploded View & Replacement Parts List Parts

Refrigerator drip tray that collects water and condensation beneath the appliance. Replace if your drip tray is cracked, warped, or missing.

Multi duct assembly for refrigerators. Directs airflow between compartments. Replace if cracked, broken, or missing to restore proper air distribution.

Multi-flow air duct assembly for bottom-mount refrigerators. Replaces cracked, broken, or missing duct that channels airflow between compartments.

Plastic rail holder that secures shelf rails inside your refrigerator. Replace this holder if it's cracked, broken, or missing to restore proper shelf support.

Secures and supports shelves inside your refrigerator. Replace if cracked, broken, or missing to properly hold shelves in place and restore stability.

Fix ice buildup or cooling issues with this refrigerator evaporator assembly. Absorbs heat from interior to maintain temperature. Certified tech required.

Fix temperature fluctuations or inaccurate readings with this refrigerator sensor control board. Manages temperature sensors for proper cooling control.

This is a rear end cap that attaches to the refrigerator door handle, providing a finished appearance at the handle's end. It snaps or fastens onto the handle assembly to secure it in place. Replace this cap if it is cracked, broken, or missing, which can cause the handle to feel loose or look incomplete.

This is a rear end cap designed to attach to the refrigerator door handle, giving it a finished look and helping hold the handle securely in place. It snaps onto the end of the handle assembly. Replace this part if it is cracked, broken, or missing, which can make the handle feel wobbly or unstable during use.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

What's included:

• One cover motor

Install notes:

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Refrigerator not cooling and compressor is warm? This overload protector prevents compressor damage during electrical overloads or overheating.

Secures and pivots the center refrigerator door for proper alignment and sealing. Replace if your door sags, won't close fully, or pivots roughly. Verify fit by model number before ordering.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

Leveling leg for refrigerators. Installs at bottom corner to elevate and stabilize the appliance. Replace if broken, compressed, or no longer secure.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

This customized pin is a precision fastener that serves as a pivot or locating point within your appliance. It helps keep mating parts aligned and moving smoothly. Replace a bent, worn, or missing pin to restore proper operation. What it does

• Acts as a pivot/axle or locating pin between connected parts
• Maintains alignment to reduce wobble and uneven movement
• Supports smooth opening/closing or rotation at the joint
• Common signs it's needed: looseness, sagging or misalignment, scraping/squeaking at the pivot, or a visibly worn/bent/missing pin

• One customized pin

• Disconnect power (and shut off water supply, if applicable) before servicing
• Support the door/panel/assembly to remove load from the pin during removal/installation
• Note the orientation and order of any spacers, bushings, or washers and transfer them to the new pin
• Apply a light lubricant and verify smooth movement before restoring power

Secures components in your refrigerator assembly, reducing vibration and keeping parts properly seated. Replace when damaged or missing to restore snug fit. Verify model compatibility before ordering.

Uneven cooling or noisy damper? This damper motor support bracket secures the air control assembly for proper airflow between compartments. DIY fix.

Fixes refrigerator power loss, sparking, or intermittent operation. This power cord assembly restores safe electrical connection from wall outlet to appliance.

Refrigerator not cooling, lights out, or completely dead? This main control board manages power and all functions. Fixes failed boards from age or surge.

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

Refrigerator not cooling properly? This damper motor support secures the air damper assembly that controls airflow between compartments. Simple DIY fix.

Upper door hinge assembly for bottom-mount refrigerators. Mounts at the top of the cabinet to support the door. Replace if cracked, broken, or lost.

Fix frost buildup and uneven cooling in your refrigerator with this evaporator defrost heater. Melts ice from coils during defrost cycles. Moderate repair.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

Fix loud jackhammer sounds or weak water flow from your refrigerator dispenser. This filter head assembly houses the water filter inside the fridge.

Fix a refrigerator not cooling properly with this compressor sealing pipe. Essential sealed system component for restoring proper refrigeration.

The MOTOR, DC is an OEM part for LG refrigerators. It is a direct current electric motor responsible for operating components related to cooling and airflow, such as the condenser fan and cooling fan. Efficient airflow circulation is critical for pulling heat away from refrigerated compartments and maintaining even temperatures throughout the fridge.

Causes of a bad motor can include excess dust buildup over time inhibiting proper fan rotation, worn motor brushes, or damaged motor windings affecting current flow.

Symptoms of a bad direct current motor include:

• Abnormally warm refrigerator temperatures
• Louder than usual operating sounds
• Lack of air coming from ventilation areas
• Visible buildup of frost or condensation inside the fridge

Replace yours today with this genuine OEM LG part to restore optimal cooling performance. This OEM LG part is also compatible with Sears/Kenmore.

Right side upper hinge.

This is the condenser fan motor assembly located near the compressor at the back or bottom of the refrigerator. It draws air across the condenser coils to dissipate heat and keep the refrigeration system running efficiently. Replace this motor if the refrigerator is running warm, the compressor is overheating, or you no longer hear the fan running when the compressor is on.

Fixes refrigerator lights that won't turn on, stay on, or flicker when door opens. This door switch activates interior lighting. DIY install in 20 minutes.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Secures water tubing to prevent leaks and disconnections in your refrigerator's water line system. Replace if clip is broken, missing, or tubing moves freely. Confirm fit with your model number.

Refrigerator won't cool or compressor won't start? This run capacitor provides the electrical boost needed for smooth compressor operation. DIY repair.

Supports and stabilizes your refrigerator door for proper alignment. Replace if bracket is cracked, broken, or causing door misalignment issues.

Allows water to flow directly to your dispenser and ice maker without filtration. Install when choosing not to use a water filter. Confirm fit by model.

Refrigerator not cooling or making clicking sounds? The compressor run capacitor provides electrical boost to start and run the compressor motor reliably.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

Fix error code ER DH or ice buildup in your freezer with a new defrost control assembly. Regulates defrost cycles to prevent frost. Moderate DIY repair.

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

Removes impurities and contaminants from water and ice. Replace every 6 months or 200 gallons for clean, fresh-tasting water. Verify fit by model.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.
