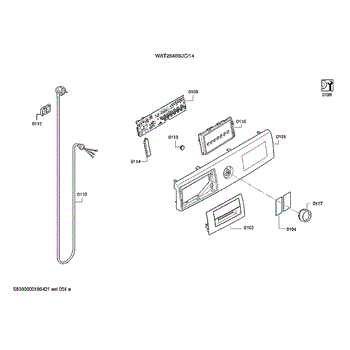

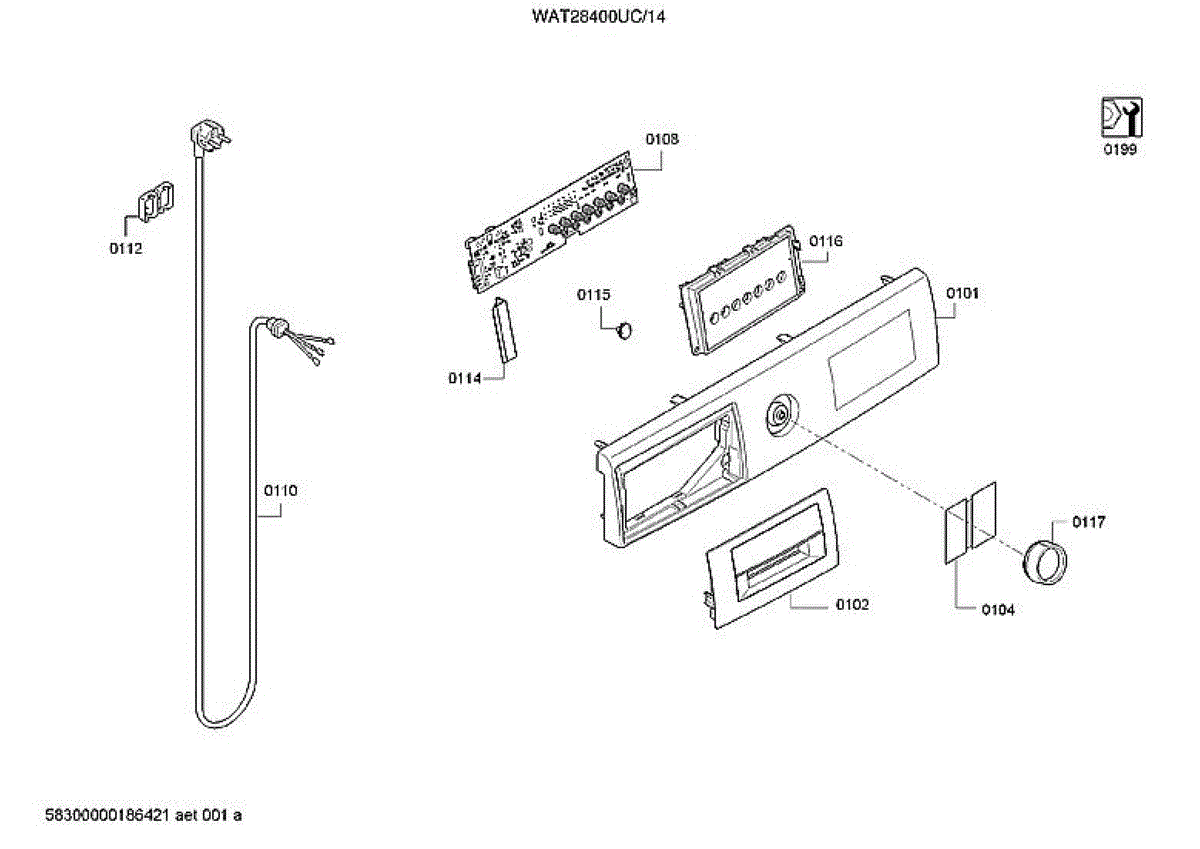

Parts for Bosch WAT28400UC/14: Facia Panel / Operating Module Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This front fascia panel replaces a worn, cracked, or scratched dishwasher front to restore the appliance's finished appearance and protect the control area. It provides the visible outer cover that mounts to the door and secures the control components. What it does:

• Covers and protects the control module and internal door components from damage and moisture
• Restores the appliance's exterior finish when the original panel is dented, chipped, or discolored
• Provides the mounting surface and alignment for control buttons and trim
• Helps maintain a flush fit and proper door appearance

• Disconnect power to the appliance before starting any repair.
• Remove the door inner panel or trim as needed to access fascia mounting screws and clips.
• Handle painted or glass-faced panels carefully to avoid scratching; use soft padding.
• Align clips/screws and verify the door opens/closes smoothly before restoring power.

The Operating Module is an OEM replacement part for Bosch washing machines. As the primary processor, it directs all wash cycle functions based on programmed instructions. The operating module receives user inputs to coordinate settings with other internal systems.

Symptoms of a bad operating module can include failures over extended usage from continuous water exposure and mineral buildup. Corrosion may disrupt circuit boards or wiring within the sealed casing.

Causes of a bad operating module include:

• Inability to turn on cycles or adjust settings
• Error codes displaying control malfunctions
• No response to temperature, spin speed, or other selections
• Appliance failing to fill, agitate, or drain properly

Replacing your operating module ensures customized cleaning for every load. This genuine Bosch part restoration has full cycle functionality. Compatible with Thermador, Gaggenau, and select Kenmore units.

This cable supply is the factory replacement power harness that connects the appliance's control and motor assemblies to the power source, restoring proper electrical connection and reliable operation. Fits as a direct OEM replacement. What it does

• Carries electrical power from the main supply to the appliance control and motor circuits.
• Replaces damaged, frayed, or intermittent wiring that can cause power loss or erratic operation.
• Helps resolve symptoms such as no power to controls, intermittent cycling, or components not running.
• Restores secure terminals and connector fit for consistent electrical contact.

• One replacement cable supply (power harness) as shown.

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Inspect connector ends and routing; install in the same orientation and secure any strain reliefs or clips.
• If routing through panels or grommets, ensure wires are not pinched and have appropriate clearance from heat sources.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

A small rubber seal ring used to maintain a watertight fit on hose, valve or connection points in compatible Bosch appliances. Replaces hardened or damaged seals to help stop leaks and restore proper sealing. What it does

• Provides a compressible seal between mating parts to prevent water leaks.
• Commonly replaced when seals are cracked, flattened, or leaking.
• Helps maintain proper pressure at hose or valve connections.
• Used where a small circular rubber gasket or O-ring is required.

• One rubber seal ring.

• Disconnect power and turn off water supply before servicing the appliance.
• Verify the correct orientation and seating of the ring; replace if stretched or nicked.
• Lubricate lightly with approved appliance-safe lubricant if specified by manufacturer.
• Handle small parts carefully; keep away from children and pets.

This display is the dishwasher user interface that shows cycle status, settings and error indicators so you can read and select wash options. It replaces a worn, cracked or non-responsive console display to restore clear feedback. What it does:

• Provides visible cycle time, status lights and option indicators for the dishwasher control panel
• Shows fault/error codes and service indicators used during troubleshooting
• Delivers the visual interface for selecting wash cycles and features
• Restores readable markings and illuminated feedback when the original display is faded or damaged

• One display/user interface control panel as shown

• Disconnect power to the appliance before starting any repair to avoid shock
• Installation typically requires removing the inner door panel to access the control assembly
• Handle the display carefully to avoid scratching the lens or damaging connectors

This is the program selector knob that mounts on the control panel's selector switch. It lets you grip and turn the program switch to choose cycles; replacing a cracked or loose knob restores smooth, accurate selection. What it does:

• Attaches to the selector switch shaft so you can set programs/cycles
• Provides a secure grip and proper indexing of cycle positions
• Keeps selections aligned with the control markings for accurate settings
• Common symptoms: cracked/broken knob, spins freely or falls off, cannot select cycles, or must turn the bare shaft with pliers

• 1 program selector knob

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the selector shaft; apply even, straight pressure to avoid stressing the control panel
• Align the keyed hub/orientation with the shaft and press firmly until fully seated
• Rotate through all positions to ensure smooth engagement and correct alignment
