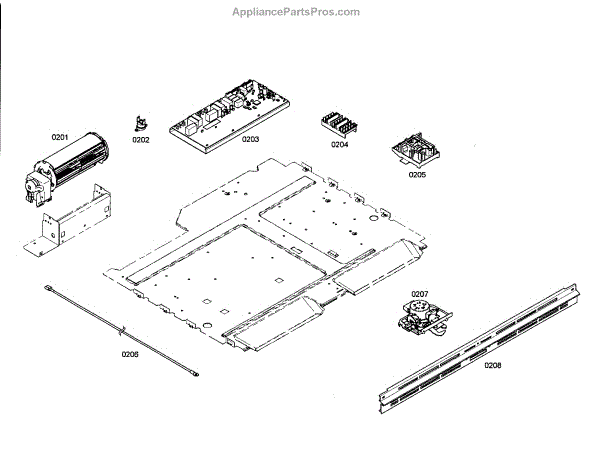

Parts for Bosch HBL3350UC/01: Fan / Control Unit / Door Latch Parts

Parts for Bosch HBL3350UC/01: Fan / Control Unit / Door Latch Parts

Location on Diagram
Part Description
Price & Availability
201
Product photo
By: Bosch
Part Number: 00643600

This is a cooling fan assembly used in wall ovens and ranges to circulate air and prevent overheating of internal components and surrounding cabinetry. It helps dissipate heat from the oven cavity and electronics during and after cooking cycles. Replace this fan if you notice excessive heat on the outer surfaces of the oven, the fan runs noisily or intermittently, or the oven displays overheating error codes.

More
$262.35

IN STOCK
Ships Today Guaranteed
Add to Cart
202
Product photo
By: Bosch
Part Number: 00617877

Factory fixing kit with mounting hardware to secure panels, brackets, or trim on your wall oven. Replaces worn, missing, or damaged fasteners for alignment.

More
$43.95

IN STOCK
Ships Today Guaranteed
Add to Cart
203
By: Bosch
Part Number: 00655358

This electronic control module manages dishwasher functions and cycle commands, restoring responsive controls and correct cycle operation when the original module fails. It replaces a damaged or unresponsive main control to get the appliance running normally. What it does:

  • Receives user inputs and sends signals to start cycles, pumps, and valves
  • Controls timing and sequencing for wash, drain, and dry operations
  • Fix symptoms like unresponsive buttons, no display, or cycles not starting
  • Does not include user interface panel components unless specified
What's included:
  • One electronic control module (main control board)
Install notes:
  • Disconnect power to the appliance before servicing to avoid shock
  • Handle the board by its edges and avoid static discharge; use anti-static precautions if available
  • Installation typically requires removing the console or access panel and unplugging connector harnesses
  • Inspect wiring and connectors for damage

More
$687.79

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
204
By: Bosch
Part Number: 00642842
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

205
Product photo
5.0 (2)
By: Bosch
Part Number: 00663802

The Relay is an OEM component specifically designed for select Bosch built-in ovens. As a basic electronic switch, it receives signals from the control unit to energize heating elements.

Durable plastic encapsulation protects delicate components from accidental spills. Precise switching facilitates customized baking and broiling temperatures within close tolerances.

Causes signaling relay failure related to prolonged thermal stresses from consistent oven use. Impacts of electric abnormalities could also cause malfunctions over time.

Symptoms requiring replacement include:

  • Inability to power top or bottom heating elements during cycles
  • Erratic temperature fluctuations beyond adjustment capabilities
  • Buzzing or loud clicking noises emitting from the relay housing

This OEM Bosch replacement part is also compatible with Thermador, Gaggenau, and select Kenmore built-in ovens employing identical temperature modulation methods. Reinstallation ensures continued customizable and safe cycle performance.


More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

206
By: Bosch
Part Number: 00663795

Oven not heating or controls unresponsive? This cable harness restores power connections between controls and components, fixing intermittent failures.

More
$10.91

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
207
Product photo
By: Bosch
Part Number: 00751505

Replace your wall oven door latch if the door won't stay closed, the oven won't start, or cycles are interrupted. Restores proper door closure and locking.

More
$141.95

IN STOCK
Ships Today Guaranteed
Add to Cart
208
By: Bosch
Part Number: 00144646
$88.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
