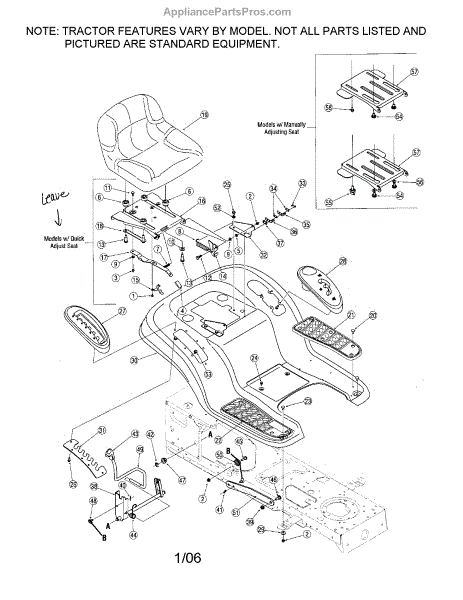

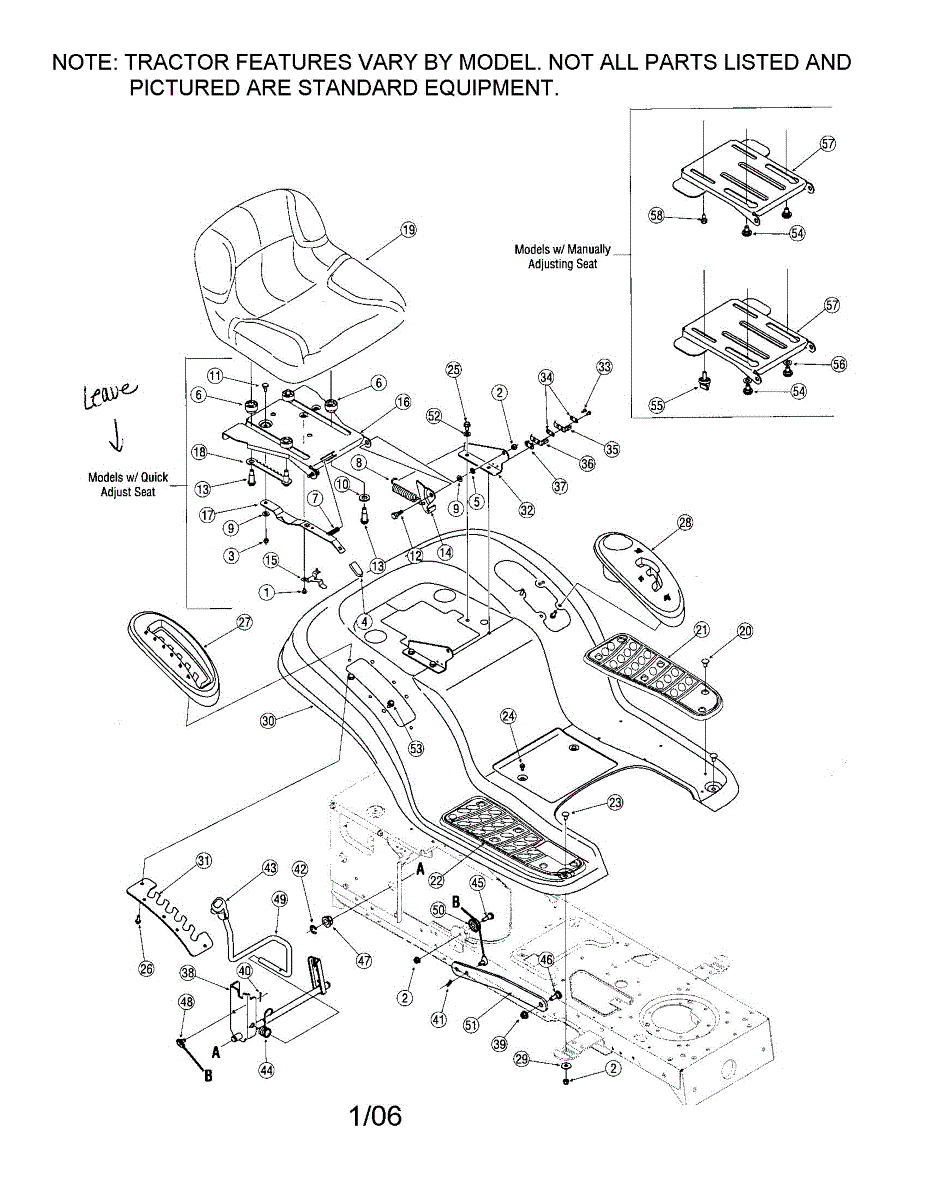

Parts for Troy-Bilt 60TP: Fender / Seat Parts

Fixes electrical issues like no power or intermittent starting on lawn tractors. This wire harness organizes and protects electrical connections.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Replacement spacer for lawn tractors and riding mowers. Prevents excess friction between moving parts. Order a new spacer if yours is worn or missing.

Extension spring for lawn tractors and riding mowers. Replace this spring if it's broken, stretched, worn, or missing to restore proper tension.

Replacement flat washer for lawn tractors and mowers. Installs on bolts and fasteners throughout the machine. Replace if lost, worn, or damaged.

This replacement part is a screw. This is a genuine replacement part made by MTD. Screws are small but very important in different types of appliances and machinery. Screws are able to hold parts together and keep things secure during use so that the engine is able to run smoothly and efficiently. A new screw might be needed if any are missing or damaged. This can be from normal wear and tear after years of use. It can also be due to the screw becoming stripped over time. This should be a simple repair and require common household tools such as a screwdriver and pliers. Work gloves are recommended depending on where the screw is located in the machine. This is a genuine OEM replacement part which ensures proper fit. This part is sold individually and is sourced directly from the manufacturer.

This genuine OEM replacement bracket stop seat is for riding lawn mowers or tractors. The part is located underneath the seat on riding mowers or tractors. Its purpose is to provide a safety shut off function when the rider leaves the seat while the blade is engaged. Over time, constant use of the mower can cause wear on the bracket, requiring it to be replaced. If a mower is left in the elements over an extended period of time, the bracket could rust. This would require the bracket to need replacing. Failure to replace a worn or rusted bracket stop seat could cause potential safety hazards as the engine may to fail to shut off if the rider should leave the seat while the blade is engaged. Replacing a bracket stop seat requires a screwdriver to replace. It is a fairly easy repair that should take under 30 minutes to complete. This part serves as a replacement if needed for the original bracket stop seat. This bracket is compatible with Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Husky, Montgomery Wards, Bolens, Yard-Man, and Ryobi brands. This bracket is sourced directly from the manufacturer and is sold individually.

Seat pivot bracket for lawn tractors and riding mowers. Secures the seat to the frame and allows adjustment. Replace if cracked, bent, or broken.

Replacement seat adjust lever for riding mowers and lawn tractors. Installs under the seat to control forward/backward positioning. Order if broken or missing.

Replacement seat for lawn tractors and riding mowers. Installs on the operator platform. Needed when original seat is cracked, torn, or broken.

Ratchet fastener for lawn mowers and tractors. Secures components in place. Replace if broken, stripped, or missing to properly fasten parts together.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Insulator plate for lawn tractors and riding mowers. Installs between components to reduce vibration and noise. Replace if cracked, worn, or missing.

Spring switch for lawn tractors and riding mowers. Mounts near the switch button. Replace if worn, broken, or damaged from regular use over time.

This actuator spring is a genuine MTD part, sold individually. This actuator spring can be used as a replacement part in a lawn mower. The purpose of the actuator spring, also known as a seat spring switch, in a lawn mower is to provide a plate upon which the seat switch can conduct its electrical current while being held stably in place.If the actuator spring slides out of place and cannot be reinstalled or if it is bent, broken, dented, or worn beyond repair, it should be removed and replaced by this genuine OEM replacement part.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This actuator spring is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Insulator plate for lawn tractors and riding mowers. Mounts between engine components to provide heat insulation and proper spacing. Replace if cracked or worn.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

E-ring retaining clip for lawn tractors and riding mowers. Secures components on shafts and axles. Replace when missing, bent, or worn for proper fit.

Replace your cracked, worn, or missing lawn mower grip handle. This control handle installs on the handlebar to help you safely operate your machine.

Torsion spring for lawn tractors and riding mowers. Replaces broken, worn, or missing springs in deck assemblies and mechanical linkages.

Hex flange bearing supports rotating shafts in riding mowers and tractors. Replace when you notice grinding noise or rough rotation. Verify fit with your model.

Deck lift cable for lawn tractors and riding mowers. Connects lift lever to mowing deck. Replace if cable is frayed, connectors are worn, or damaged.

Idler pulley roller guides and tensions mower deck belts. Replace if worn, cracked, or causing belt slippage. Verify fit with your model number.

This knob is an OEM replacement part for MTD power equipment. The seat knob is responsible for adjusting the height of the seat to ensure a comfortable and safe position for the operator while using the lawn tractor. It is usually located on the side or the front of the seat and is connected to a shaft or linkage that controls the seat height adjustment.

Causes of a bad knob can include regular wear and tear from frequent use, exposure to harsh weather conditions, or accidental damage. These factors can lead to the knob becoming loose, cracked, or broken, making it difficult to operate the equipment effectively.

Symptoms of a bad knob include:

• Difficulty in turning or adjusting the knob
• The knob slipping or not staying in place
• Visible cracks or breakage
• The knob falling off during use

This MTD replacement part is also compatible with other brands and models within the MTD family, ensuring broad applicability for your outdoor equipment needs.

Seat pivot bracket allows angle adjustment for operator comfort on riding mowers. Replace if cracked, broken, or worn. Installs between seat and frame.
