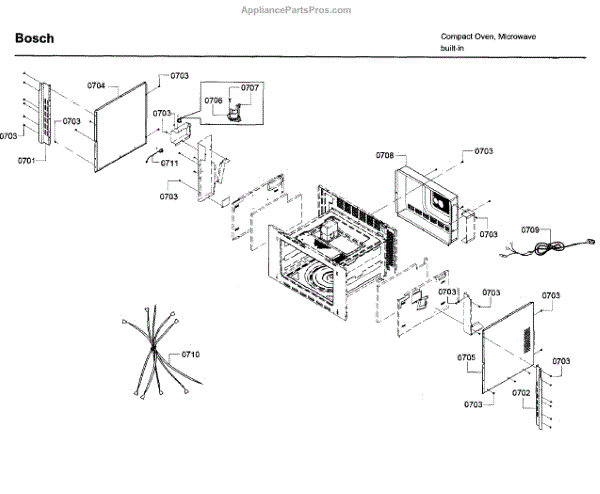

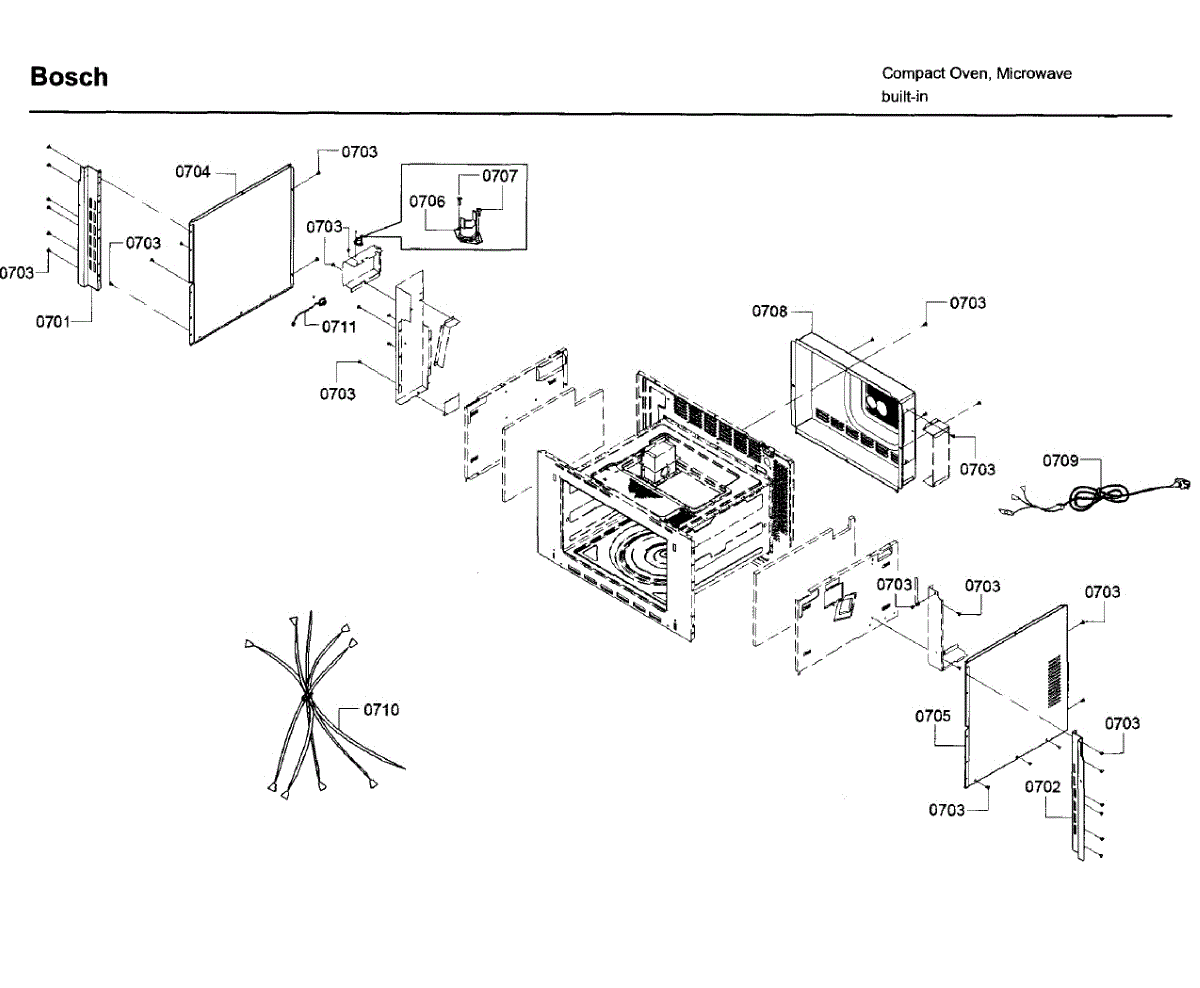

Parts for Bosch HMC54151UC/01: Frame Parts

Temperature regulator that monitors and controls an appliance's operating temperature to help maintain set points and stable performance. Replacing a faulty regulator can restore consistent temperature behavior and reliable operation. What it does:

• Senses and regulates temperature to maintain the appliance's set point.
• Signals the appliance's heating or cooling system to cycle on and off as needed.
• Common symptom: appliance temperature is too high or too low.
• Common symptom: temperature fluctuates or fails to stabilize.
• Common symptom: heating/cooling runs continuously or not at all.

• Disconnect power to the appliance before starting any service.
• Handle electrical connections and terminals with care; note wire locations before removal.
• Follow the appliance service manual or wiring diagram for proper placement and orientation.

This supply cable provides the electrical connection needed to power your appliance, restoring reliable power delivery when the original cable is damaged or worn. It's a direct-replacement style part designed for straightforward swap-out. What it does

• Carries mains electricity from the wall to the appliance's internal wiring
• Replaces frayed, cut, or heat-damaged cables that cause power loss or intermittent operation
• Helps stop sparks, arcing, or burning smells caused by compromised wiring
• Ensures proper grounding when installed with the appliance's original grounding connector

• One supply cable

• Always disconnect power at the breaker or unplug the appliance before starting work
• Inspect connectors and strain relief; use original mounting points and secure all fasteners
• If wires must be spliced, use approved connectors and restore proper insulation and strain relief

This cable harness routes power and signals between appliance components to restore electrical connectivity and reliable operation. It's a direct replacement harness designed to match the original wiring configuration and connectors. What it does:

• Replaces a damaged or frayed wiring harness to restore power and control signal paths
• Ensures proper connector fit for reliable component-to-component communication
• Prevents intermittent faults caused by loose, corroded or cut wires
• Helps eliminate failures, error codes, or non-responsive controls tied to wiring issues

• One cable harness as pictured

• Disconnect power to the appliance before starting any work
• Match wire colors and connector shapes to the original harness before disconnecting
• Route and secure the harness away from heat sources and moving parts
