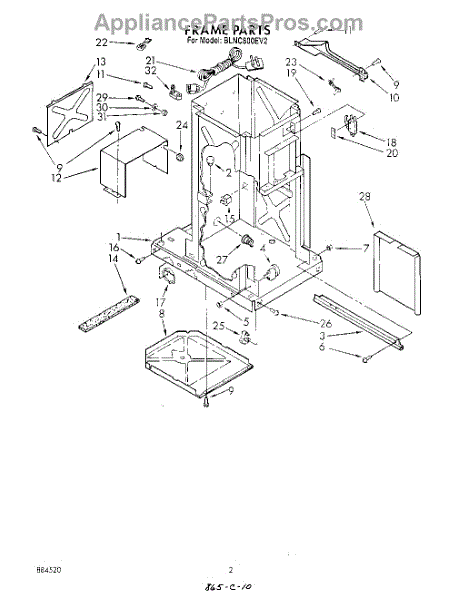

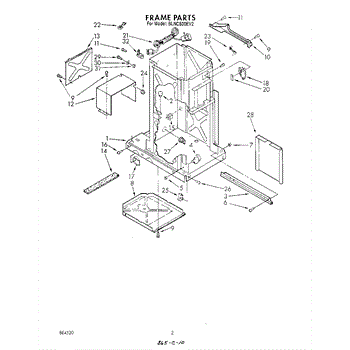

Parts for Whirlpool BLNC800EV2: 02 - Frame Parts

This is the left side frame slide. For right side use W11722978.

The Roller Assembly is an OEM replacement part for Whirlpool and KitchenAid trash compactors. It includes dual plastic roller drums that grasp and compact trash inside the waste cylinder. The assembly comes with 2 rollers.

Causes of faulty or worn rollers include years of continuous daily use compressing a wide variety of trash materials.

Symptoms include:

• Inability to fully compact bags into tight, uniform bricks
• Loose, inefficient compaction allowing excess empty space
• Excessive odors escaping around poorly compressed bags
• Visible cracking or flat spots on roller gripping surfaces

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 3\8-24 inch.

Size: 6-32 x 3/8 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 8-32 x 1/4 inch.

This part has been discontinued by the manufacturer and is no longer available.

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

Size: 10-24 x 3/8 inch.

This replacement leveling wheel restores a dryer/washer cabinet's ability to sit level and roll smoothly during adjustment. It helps stop wobble and ensures the appliance can be properly leveled for stable operation. What it does:

• Replaces a worn or broken leveling wheel on the appliance base or leveling assembly
• Allows the cabinet to be adjusted up or down when setting appliance height
• Helps reduce rocking, uneven vibration, and unstable operation caused by a damaged leveler
• Works with the appliance's leveling hardware to keep the cabinet properly supported

• One replacement leveling wheel

• Disconnect power and water before beginning any work
• Support the appliance securely to relieve weight from the leveling assembly before removal
• Remove the old wheel from the leveler shaft and press or snap the new wheel into place; use basic hand tools as needed

The Directional Switch is an OEM part for Whirlpool trash compactors. It controls the direction of the compactor ram, enabling it to move up and down to compress trash effectively.

You should replace this directional switch if it becomes defective. Common causes of a bad directional switch include electrical failures, wear and tear from frequent use, or damage due to power surges. These issues can impede the proper operation of the trash compactor, leading to inefficient trash compression.

Symptoms of a bad directional switch include:

• The compactor ram not moving up or down
• The compactor not starting or stopping correctly
• Unusual noises coming from the compactor
• The compactor getting stuck in one position

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models

Size: 6-20 x 1.0 inch.

This part has been discontinued and is no longer available.

This replacement container spring helps restore proper tension and support for the container assembly, so the container stays secure and operates smoothly. Ideal when the original spring is worn, stretched, or broken. What it does:

• Provides tension to hold the container or bin in its intended position
• Replaces worn or broken springs that cause slipping or poor engagement
• Stops rattling or shifting caused by a weakened spring
• Helps the container latch, release, or return smoothly during use

• Basic hand tools may be required; follow the appliance's service manual for access and removal
• Disconnect power (and water if applicable) before servicing to prevent injury
• Handle small parts carefully to avoid pinching; springs can store tension
