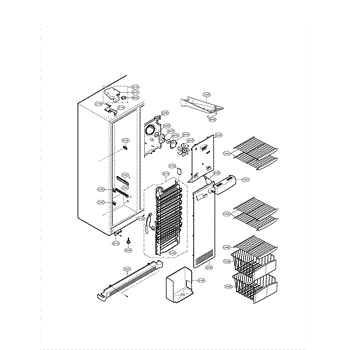

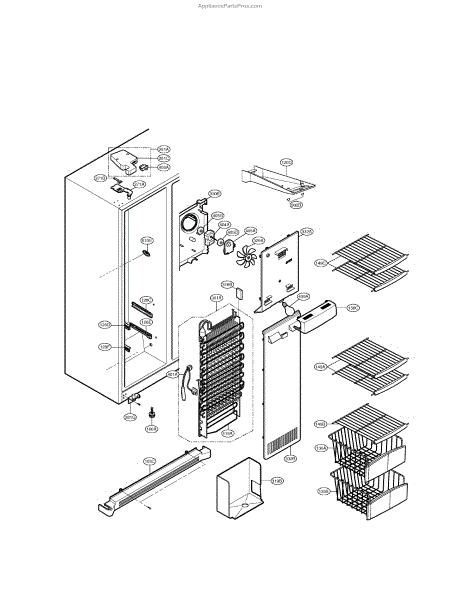

Parts for Lg LSC27931SB: Freezer Compartment Parts

This leveling leg assembly stabilizes and levels your refrigerator so it sits solidly on the floor and the doors align correctly. Replacing a worn or stripped leg helps reduce rocking and vibration and restores smooth leveling adjustment.

• Provides height adjustment to level the cabinet on uneven floors
• Supports the unit to prevent rocking or wobbling
• Helps doors close and seal properly when the cabinet is level
• Symptoms may include persistent wobble, vibration/rattling, or a stripped/bent foot or screw

• Unplug the refrigerator and use a helper to prevent tipping injuries.
• Protect flooring; remove the kickplate/grille for access if present.
• Thread out the worn leg; hand-thread the new assembly and adjust height—do not over-extend.
• Level side-to-side and front-to-back per your owner's manual, then reattach any panels.

This upper hinge assembly supports the refrigerator door at the top and acts as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and helps the door seal and close consistently.

• Supports and pivots the door at the top hinge point
• Maintains door alignment with the cabinet and gasket
• Helps ensure complete closure and proper sealing
• A worn hinge may cause door sagging, rubbing, popping/creaking noises
• Misalignment may lead to air leaks, frost, or temperature fluctuations

• Disconnect power and, if applicable, shut off the water supply.
• Remove the hinge cover, support the door, and note shim/bushing positions.
• Remove hinge screws, lift the door off, transfer any spacers/bushings, and install the new hinge.
• Align the door and verify gasket contact all around before restoring power.

This hinge lever mounts on the refrigerator door hinge to guide door movement and closure, helping the door seal properly. Replacing a worn or broken lever restores smooth operation and consistent sealing.

• Guides hinge motion so the door opens and closes smoothly
• Helps maintain door alignment for a reliable gasket seal
• Replace if the lever is visibly cracked, worn, or deformed

• Disconnect power and support the door to prevent injury or damage
• Remove the hinge cover and fasteners; note the lever's orientation before removal
• Install the new lever in the same position and reassemble the hinge components
• Adjust hinge per model procedures if needed

This replacement fan assembly restores airflow in your appliance's cooling system to help maintain proper temperature and circulation. It's a direct-fit replacement designed to stop airflow-related issues and reduce noise from a failing fan. What it does:

• Circulates air across evaporator/condenser coils to support proper cooling and defrost cycles
• Replaces a worn or failed fan that can cause warm compartments or poor cooling
• Helps eliminate unusual humming, grinding, or rattling caused by a damaged fan blade or motor
• Supports even temperature distribution and can reduce frost buildup when fan operation is restored

• Disconnect power before starting; work on powered appliances can cause shock or injury
• Handle the fan blade carefully to avoid bending blades or damaging the motor
• Secure mounting fasteners to prevent vibration

This controller assembly is the main electronic control board that manages your appliance's cycles and user interface, restoring normal control when the original board fails. It replaces a faulty control module to help the unit operate reliably. What it does:

• Controls timing, cycles, and functions per user commands and sensor inputs
• Replaces malfunctioning or unresponsive control electronics that cause erratic operation
• Can resolve symptoms such as no power to controls, unresponsive buttons, or incorrect cycle behavior
• Works with existing wiring harnesses and display components when compatible

• Disconnect power before beginning work to prevent shock or damage
• Verify connector locations and orientation before removing the old board
• Handle the board by edges and avoid contact with circuitry to prevent static damage

This evaporator fan motor assembly circulates cold air across the evaporator coils and throughout the cabinet to keep temperatures even. Replacing a worn motor restores airflow and helps reduce warm spots and grinding or squealing fan noise. What it does:

• Circulates air across the evaporator and through vents to cool the refrigerator and freezer compartments
• Helps maintain uniform temperatures and consistent airflow throughout the cabinet
• Common failure signs: weak or no airflow, refrigerator section warmer than the freezer, or whining/rattling fan noise
• Fan typically runs only with the door switch closed; lack of operation with the switch closed can indicate a failed motor

• Includes: 1 evaporator fan motor assembly

• Disconnect power before servicing; interior panels and liners can have sharp edges
• Access is typically behind the rear panel of the freezer or fresh food section (varies by model)
• Disconnect the wiring harness, remove the old assembly, and install the new one securely with wiring routed clear of the blade
• Restore power and depress the door switch to verify fan operation and airflow

This motor bracket assembly secures the appliance motor to the cabinet, keeping the motor properly positioned for reliable operation and reducing vibration or rubbing. Replaces a worn or damaged motor mounting bracket to restore stability. What it does:

• Holds the motor in place to maintain proper belt alignment and drivetrain geometry
• Prevents motor movement that can cause loud noise, grinding, or rubbing
• Reduces excessive vibration that can transfer to the cabinet or other components
• Helps maintain safe, consistent motor operation during spin or drive cycles

• Disconnect power (and gas if applicable) before starting any repair
• Support the motor before removing mounting hardware to avoid strain on wires or components
• Tighten all fasteners to OEM torque specs; replace any damaged brackets or fasteners
• Test operation after installation and re-check for proper alignment and noise

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is responsible for detecting whether the refrigerator door is open or closed, allowing the appliance to control the interior light and, in some models, the cooling functions accordingly.

Causes of a bad door switch can include wear and tear from frequent use, electrical issues, or physical damage to the switch mechanism. A faulty door switch can lead to improper operation of the refrigerator's light or cooling system, affecting overall performance.

Symptoms of a bad door switch include:

• Interior light not turning on or off properly
• Refrigerator not cooling properly or running continuously
• Door alarm not functioning correctly
• Intermittent or unresponsive switch operation

This OEM LG part is also compatible with Sears/Kenmore.
