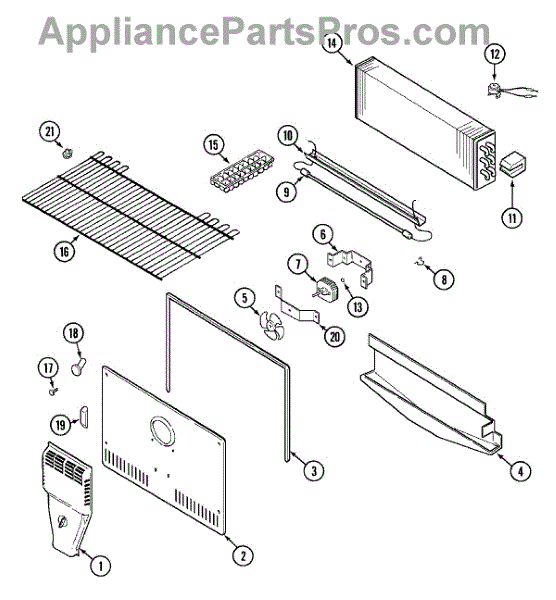

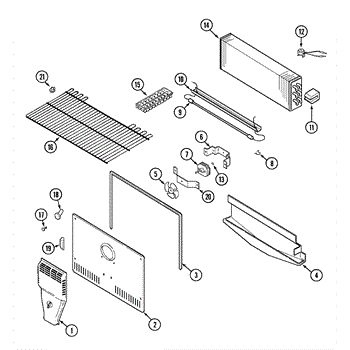

Parts for Magic Chef CTB1710DRW: 03 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

Size: 8-32 x .312 inch.

This evaporator fan motor circulates cold air across the evaporator coils and through the freezer and fresh-food sections to maintain even temperatures. Replacing a failed or noisy motor restores proper airflow and dependable cooling performance.

• Drives the evaporator fan blade to move air over the coils and throughout the cabinet
• Helps maintain consistent temperatures between freezer and refrigerator compartments
• Failure symptoms include weak/no airflow, the fan not running, loud squealing/rumbling, or the fresh-food section warming up
• Poor airflow can also lead to frost or ice buildup on the freezer back panel

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the motor behind the freezer's rear panel; use caution around sharp metal and evaporator fins
• Note wire positions; transfer the fan blade and any brackets/grommets from the original motor; secure wiring connections
• Ensure the blade spins freely; engage the door switch when testing and strong airflow after reassembly

This heater clip secures the defrost heater in your refrigerator. Keeping the element properly positioned helps the defrost system work as designed and reduces rattling or damage from a loose or misaligned heater.

• Holds the defrost heater securely in place on its mounting point
• Helps maintain correct heater placement for consistent frost removal
• Replace if the clip is missing, broken, bent, or corroded
• Common symptoms include a loose/dangling heater, rattling noises, or recurring frost/ice around the evaporator area

• Disconnect power before servicing the appliance
• Access the defrost heater behind the freezer's rear panel; note the original clip orientation
• Install the new clip so the heater is seated and not contacting wiring or plastic; do not deform the element or coils
• Restore power and verify the heater is secured in place

This radiant defrost heater melts frost on the evaporator to restore proper airflow and cooling. Replacing a failed heater helps prevent frost buildup that can reduce cooling performance and cause extended run times. What it does:

• Heats the evaporator during defrost cycles to melt accumulated ice.
• Restores normal airflow and cooling by preventing excessive frost formation.
• Commonly used when frost builds on the evaporator, the freezer struggles to maintain temperature, or the defrost system fails.
• Works with the existing defrost thermostat and control to complete the defrost cycle.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Removing the evaporator cover may be required; follow the OEM service manual for your model.
• Inspect and test the defrost thermostat and wiring while replacing the heater.

This defrost thermostat senses the evaporator coil temperature and controls the defrost heater. Replacing a failed thermostat restores proper defrosting to prevent heavy frost buildup and helps your refrigerator keep consistent, reliable cooling.

• Monitors evaporator temperature to allow the defrost heater to energize and to terminate the cycle as the coil warms
• Protects against overheating in the evaporator area during defrost
• Failure symptoms include frost/ice buildup on the evaporator cover, reduced airflow, fresh food section warming, or the unit not defrosting
• Typically mounts clipped to the evaporator tubing inside the freezer

• Disconnect power before servicing and remove the freezer's rear panel to access the evaporator
• Transfer the clip/bracket if present and mount the new thermostat in the same location, ensuring firm metal-to-metal contact with the evaporator tubing
• Route wires away from the heater and moving parts; secure connections and reassemble panels before restoring power
• Wear cut-resistant gloves—sheet-metal edges can be sharp

This replacement ice cube tray is a direct-fit plastic tray designed to hold and release ice cubes in compatible top- or bottom-freezer refrigerators. Restores convenient ice storage and simple manual ice removal. What it does:

• Holds water in separate cavities so ice cubes form evenly.
• Flexes slightly for easier ice release to reduce twisting or chipping.
• Replaces cracked, warped, or missing trays that cause leaking or uneven freezing.
• Helps prevent contamination from freezer debris when used as intended.

• Remove old tray and wipe area clean before installing the new tray.
• Fill tray with water on a level surface and place flat in the freezer to freeze.
• Handle carefully when removing ice to avoid spills; do not force with sharp tools.
• Clean tray before first use and as needed; follow refrigerator manufacturer's care guidance.

Size: 8-32 x .312 inch.
