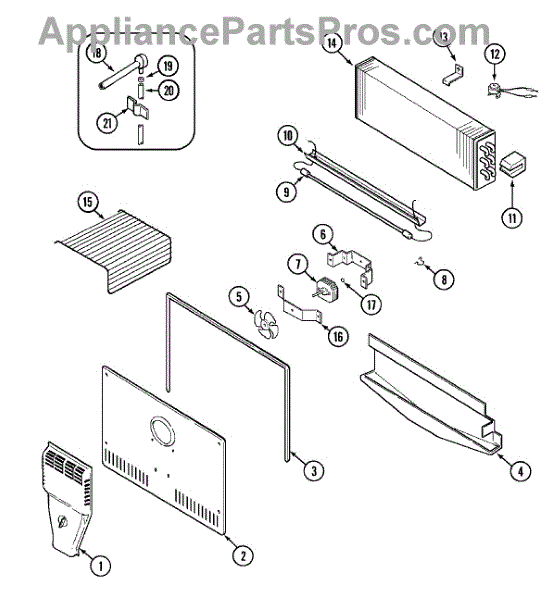

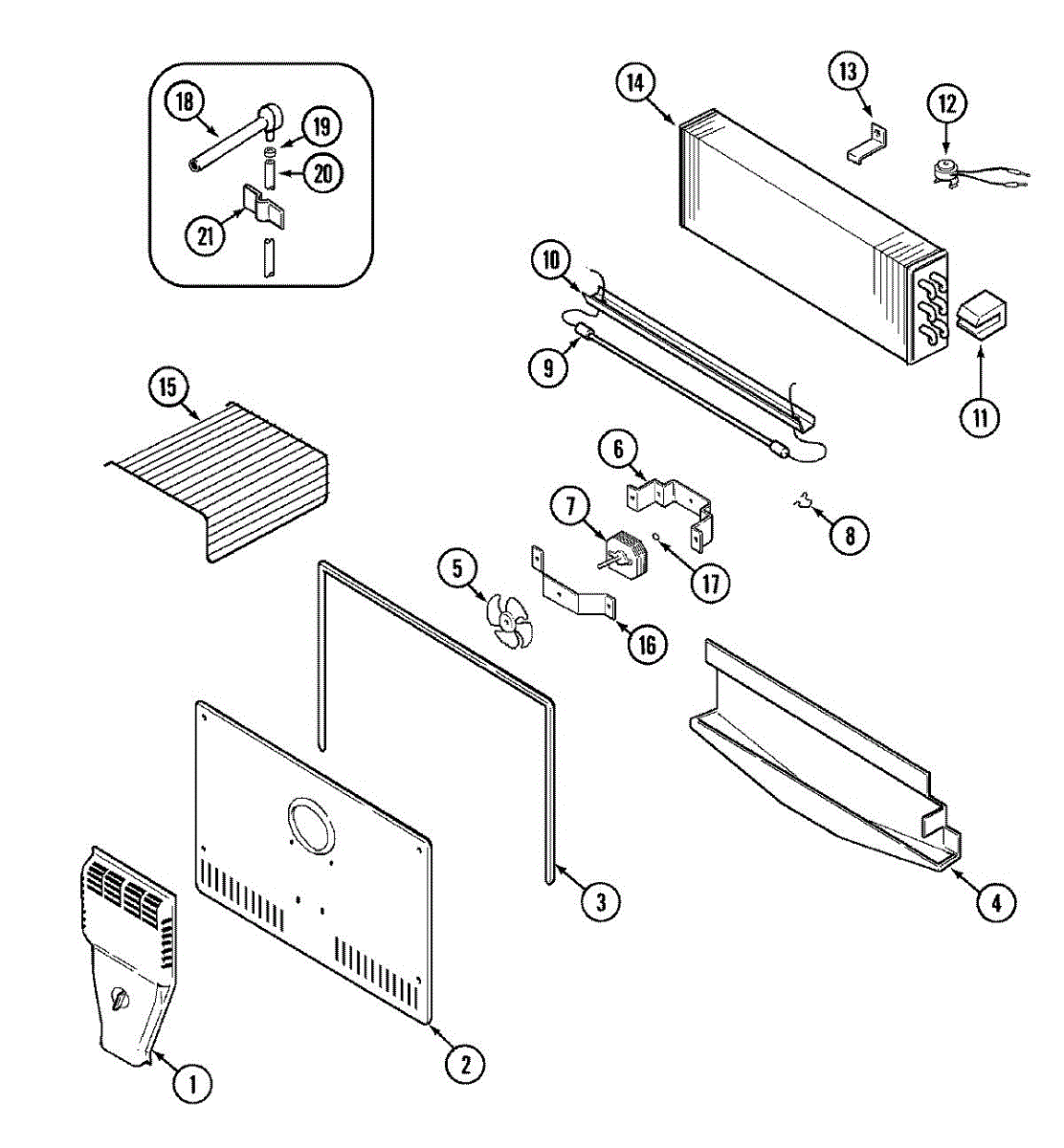

Parts for Magic Chef CTF1521ARW: 02 - Freezer Compartment Parts

Size: 8 x 1-1/4 inch.

Size: 8-32 x .312 inch.

This evaporator fan motor circulates cold air across the evaporator coils and through the freezer and fresh-food sections to maintain even temperatures. Replacing a failed or noisy motor restores proper airflow and dependable cooling performance.

• Drives the evaporator fan blade to move air over the coils and throughout the cabinet
• Helps maintain consistent temperatures between freezer and refrigerator compartments
• Failure symptoms include weak/no airflow, the fan not running, loud squealing/rumbling, or the fresh-food section warming up
• Poor airflow can also lead to frost or ice buildup on the freezer back panel

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the motor behind the freezer's rear panel; use caution around sharp metal and evaporator fins
• Note wire positions; transfer the fan blade and any brackets/grommets from the original motor; secure wiring connections
• Ensure the blade spins freely; engage the door switch when testing and strong airflow after reassembly

This heater clip secures the defrost heater in your refrigerator. Keeping the element properly positioned helps the defrost system work as designed and reduces rattling or damage from a loose or misaligned heater.

• Holds the defrost heater securely in place on its mounting point
• Helps maintain correct heater placement for consistent frost removal
• Replace if the clip is missing, broken, bent, or corroded
• Common symptoms include a loose/dangling heater, rattling noises, or recurring frost/ice around the evaporator area

• Disconnect power before servicing the appliance
• Access the defrost heater behind the freezer's rear panel; note the original clip orientation
• Install the new clip so the heater is seated and not contacting wiring or plastic; do not deform the element or coils
• Restore power and verify the heater is secured in place

This radiant defrost heater melts frost on the evaporator to restore proper airflow and cooling. Replacing a failed heater helps prevent frost buildup that can reduce cooling performance and cause extended run times. What it does:

• Heats the evaporator during defrost cycles to melt accumulated ice.
• Restores normal airflow and cooling by preventing excessive frost formation.
• Commonly used when frost builds on the evaporator, the freezer struggles to maintain temperature, or the defrost system fails.
• Works with the existing defrost thermostat and control to complete the defrost cycle.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Removing the evaporator cover may be required; follow the OEM service manual for your model.
• Inspect and test the defrost thermostat and wiring while replacing the heater.

This defrost thermostat is the temperature limit switch for the evaporator. It lets the defrost heater run when coils are icy and opens as they warm to end the cycle, helping stop frost buildup and restore steady cooling.

• Monitors evaporator temperature; closed when cold to allow the defrost heater to energize
• Opens as the coil warms to terminate defrost and protect components from overheating
• Failure may cause heavy frost on the back wall/evaporator and weak airflow or a warm refrigerator section
• Can also lead to long run times or cooling that returns only briefly after a manual defrost

• Unplug the refrigerator or disconnect power before servicing
• Located behind the freezer's rear panel on the evaporator; remove shelves/ice bin and panel to access
• Reinstall in the same position/clip for firm contact with the coil or tubing
• Make secure, insulated wire connections and route wiring away from sharp edges and moving parts

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Size: 8-32 x .312 inch.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

Ice maker water line: 1/4x 8ft.
