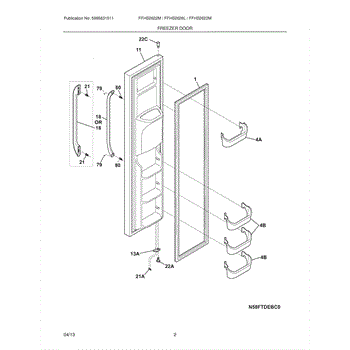

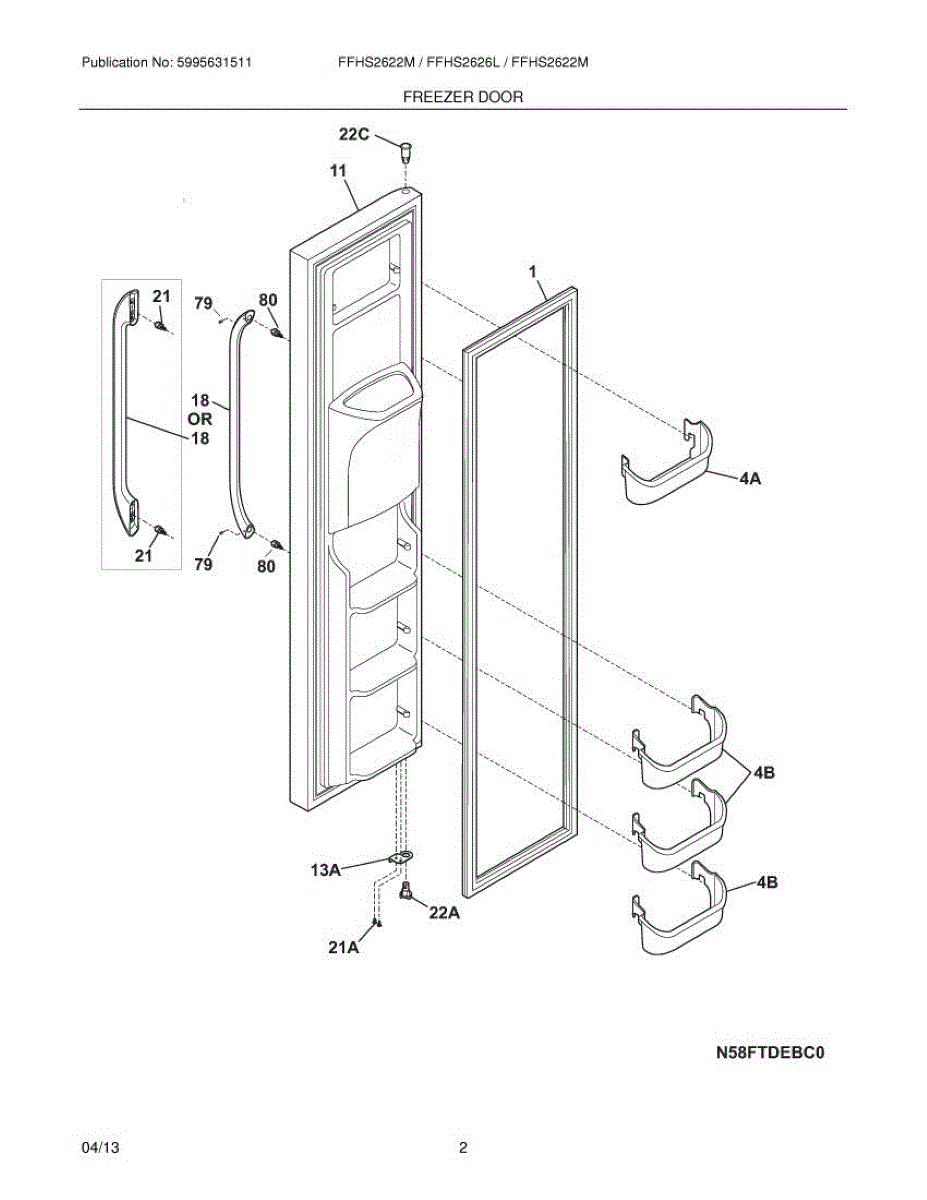

Parts for Frigidaire FFHS2622MQ9: 03 - Freezer Dooe Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Upper Freezer Door Bin is an OEM part for Frigidaire side-by-side refrigerators. It provides organized storage for freeze-sensitive items like ice cream in the freezer door. The door bin measures approximately 13"L x 5 1/2" W.

Over time, repeated opening and closing of the freezer door subjects the storage bin to mechanical stresses and impact damage. Cracks or breaks in the plastic can compromise its storage function.

Symptoms of a problematic freezer door bin include:

• Inability to safely or efficiently store items
• Cracks or breaks in the plastic that compromise structural integrity
• Discoloration or mineral buildup reducing storage capacity

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Freezer Door Shelf is an OEM replacement part for Frigidaire refrigerators. This freezer door shelf is designed to keep items organized inside the freezer door while allowing for easy access. Approximately 11 inches in width and 5 inches in depth

Causes of a bad shelf can include wear and tear over time, exposure to excess weight or unbalanced loads, damaged or missing supports, or impact from fallen items.

Symptoms of a bad shelf include:

• Sagging or bending of the shelf surface
• Items easily falling off or through the shelf
• Difficulty accessing freezer items due to unstable storage
• Damage or deformity of shelf supports

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This replacement screw secures appliance components to their mounting points so panels, brackets, and trim stay tight and aligned. Replace missing or stripped hardware to restore a solid, rattle-free fit and proper assembly integrity.

• Secures panels, brackets, and trim to prevent movement and maintain alignment
• Replaces missing, damaged, or stripped hardware that can compromise assembly
• Helps reduce rattling or vibration from loose components
• Restores proper fit after service or access panel removal

• Unplug the appliance before servicing; turn off water supply if working near dispenser/ice areas
• Compare the new screw to the original to ensure thread, head style, and length
• Start threading by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Retain and reuse any original washers, spacers, or clips as required

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This hinge bearing supports the freezer door on the hinge pin so it swings smoothly and stays aligned. Replacing a worn bearing can stop scraping or sagging and help restore proper door movement and sealing.

• Provides a low-friction surface between the hinge pin and door
• Helps maintain correct door height and alignment for a reliable seal
• Wear symptoms include squeaking/scraping, door drop or wobble, and difficulty closing
• Replace if the original bearing is cracked, flattened, or missing

• Disconnect power and remove items from the freezer door before starting
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Slide the old bearing off the hinge pin and install the new bearing in the same orientation
• Reassemble, then check door alignment and gasket contact; adjust as needed

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
