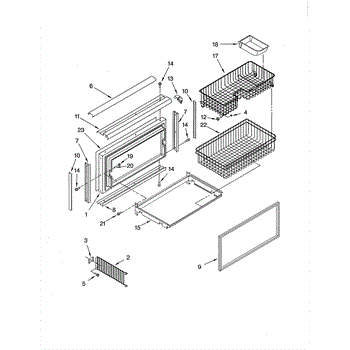

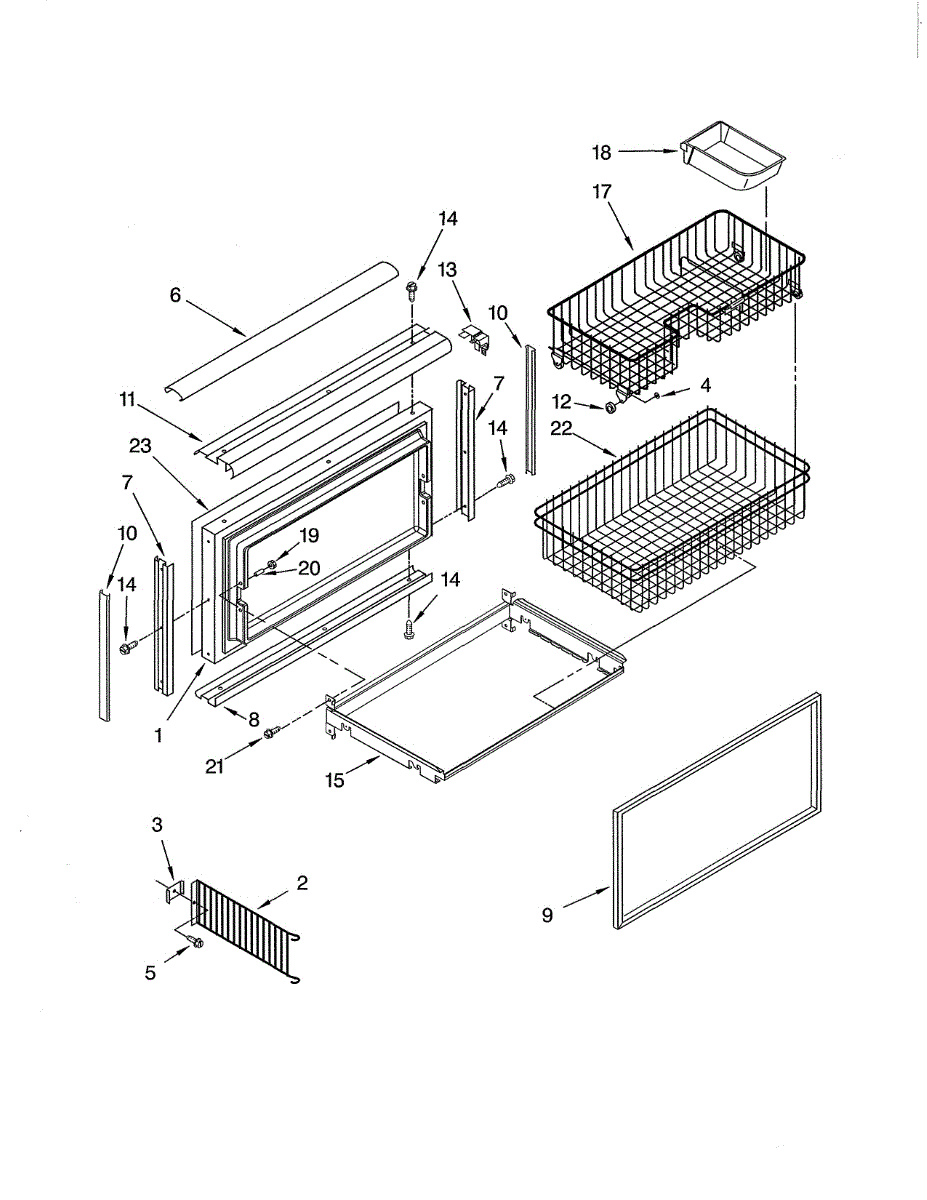

Parts for Kitchenaid KBLP36FMS01: Freezer Door & Basket Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

A small hex retaining nut used to secure fittings and components in place on compatible Whirlpool appliances. Durable metal construction keeps assemblies tight and prevents loosening from vibration or normal use. What it does:

• Secures threaded studs, bolts, or fittings to maintain proper assembly alignment
• Helps prevent parts from loosening during normal operation or vibration
• Commonly used on panels, brackets, or internal component mounts
• Serves as a simple, serviceable fastener for repair or reassembly tasks

• One metal hex nut

• Disconnect power and water (when applicable) before servicing the appliance
• Use the correct size wrench or socket to tighten; avoid over-tightening which can strip threads
• Keep track of small parts and fasteners during disassembly to ensure correct reassembly
• If the original nut is corroded or damaged, replace it with this new nut of the same thread size

This foamed-in-place refrigerator door gasket seals the door perimeter to keep cold air in and humid room air out. Replacing a worn or damaged seal restores a tight closure, reduces frost and sweating, and helps maintain consistent temperatures.

• Creates an air-tight barrier around the door opening
• Helps prevent frost, moisture, and temperature swings
• Can address issues like doors not sealing, warm spots, or long run times
• Typical failure signs: tears, cracks, warping, loose corners, or brittle rubber

• Unplug the refrigerator and clear items from the door
• Warm the new gasket in hot water or with low heat to relax and straighten it
• Remove the old seal; press the new gasket fully into the channel, seating corners first
• Close the door and verify uniform contact; adjust hinges or leveling if needed

This drum support roller keeps the dryer drum turning smoothly and quietly by supporting the drum's weight and reducing friction. Replacing a worn roller restores proper drum alignment and reduces noise and rubbing. What it does

• Supports the dryer drum to maintain smooth rotation and proper clearance
• Reduces grinding, thumping, or rumbling noises caused by worn rollers
• Prevents drum wobble and uneven wear on the drum and seals
• Helps the drum spin freely for consistent drying performance

• One replacement roller

• Disconnect power (and gas supply if applicable) before beginning any repair
• Access typically requires removing the dryer's rear panel or front assembly; follow your model's service manual
• Inspect the mating shaft and adjacent roller(s); replace matching rollers if also worn
• Use appropriate tools and avoid forcing parts

The Screw is an OEM part compatible with Whirlpool dryers. This screw connects the back panel to the side panel, ensuring the dryer cabinet is securely assembled. It plays an integral role in maintaining the structural integrity of the dryer housing.

Symptoms of a bad screw can include loosening, corrosion, or breakage over time and use. This can compromise the bond between panels and weaken the overall dryer frame.

Causes of a bad screw include:

• Repeated expansion and contraction from heat cycles
• Vibrations loosening the connection point
• Stress or cracks developing at the screw head or threads

These issues can lead to:

• Gaps appearing between panels
• Components like controls detaching from the housing
• Cabinet unable to withstand pressure changes

This OEM Whirlpool replacement screw is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
