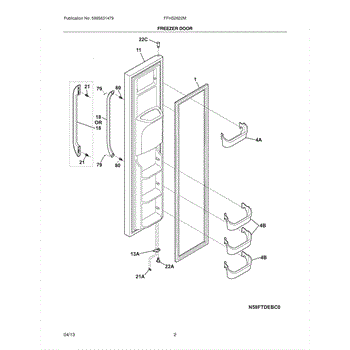

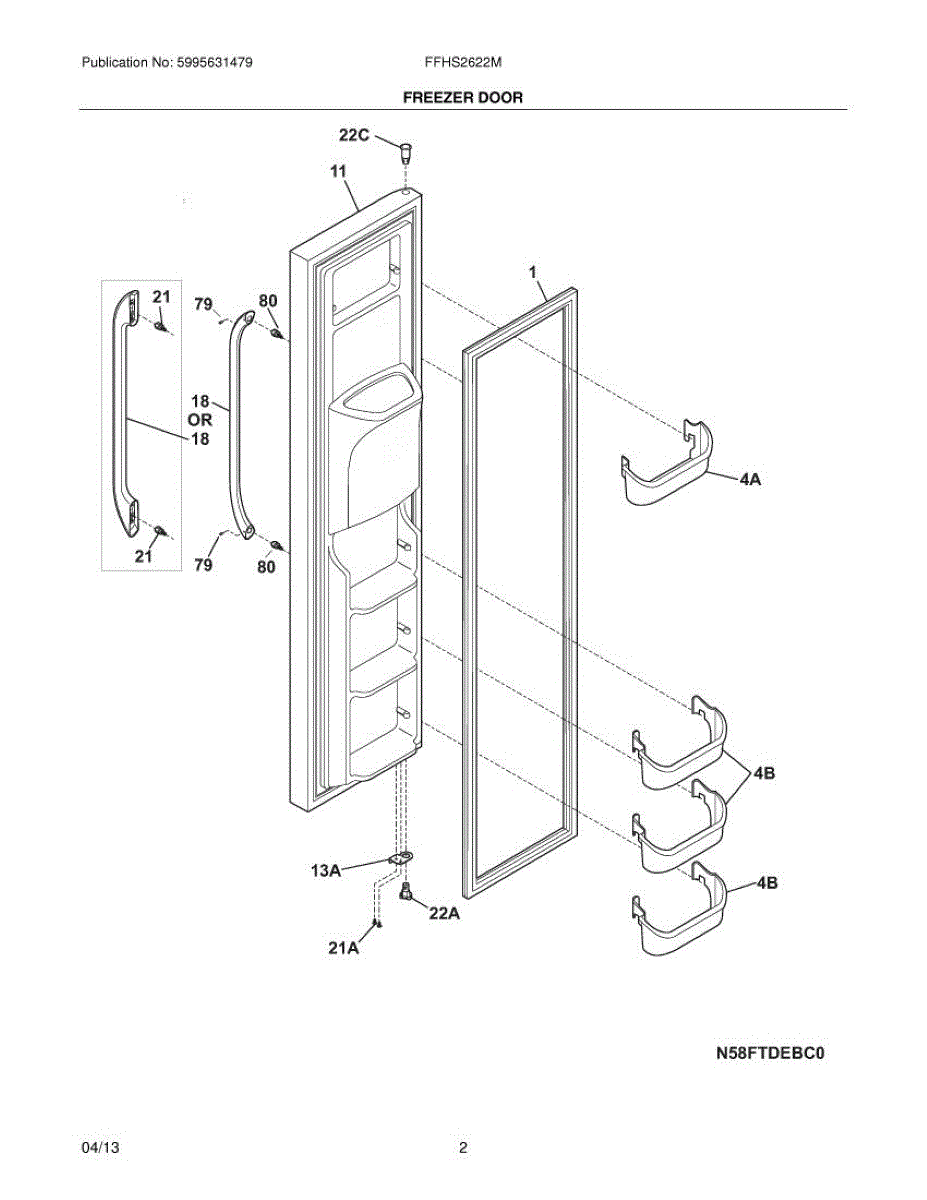

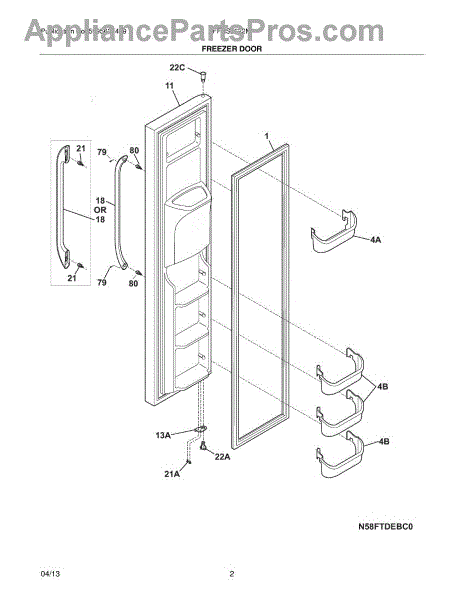

Parts for Frigidaire FFHS2622MSG: 03 - Freezer Door Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Freezer Door Gasket is an OEM part for Frigidaire refrigerators. It is essential for creating an airtight seal around the freezer door, ensuring that cold air stays inside and warm air stays out. This gasket is made from durable rubber or silicone, designed to withstand the cold temperatures of the freezer compartment without becoming brittle or losing its flexibility.

Over time, the freezer door gasket can wear out or become damaged, leading to a poor seal and increased energy consumption as the refrigerator works harder to maintain the desired temperature.

Symptoms of a bad Freezer Door Gasket include:

• Noticeable gaps or tears in the gasket
• Condensation or frost buildup around the door edges
• The freezer struggling to maintain the set temperature
• An increase in energy bills due to the refrigerator working overtime

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Upper Freezer Door Bin is an OEM part for Frigidaire side-by-side refrigerators. It provides organized storage for freeze-sensitive items like ice cream in the freezer door. The door bin measures approximately 13"L x 5 1/2" W.

Over time, repeated opening and closing of the freezer door subjects the storage bin to mechanical stresses and impact damage. Cracks or breaks in the plastic can compromise its storage function.

Symptoms of a problematic freezer door bin include:

• Inability to safely or efficiently store items
• Cracks or breaks in the plastic that compromise structural integrity
• Discoloration or mineral buildup reducing storage capacity

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Freezer Door Shelf is an OEM replacement part for Frigidaire refrigerators. This freezer door shelf is designed to keep items organized inside the freezer door while allowing for easy access. Approximately 11 inches in width and 5 inches in depth

Causes of a bad shelf can include wear and tear over time, exposure to excess weight or unbalanced loads, damaged or missing supports, or impact from fallen items.

Symptoms of a bad shelf include:

• Sagging or bending of the shelf surface
• Items easily falling off or through the shelf
• Difficulty accessing freezer items due to unstable storage
• Damage or deformity of shelf supports

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

This hinge bearing supports the freezer door on the hinge pin so it swings smoothly and stays aligned. Replacing a worn bearing can stop scraping or sagging and help restore proper door movement and sealing.

• Provides a low-friction surface between the hinge pin and door
• Helps maintain correct door height and alignment for a reliable seal
• Wear symptoms include squeaking/scraping, door drop or wobble, and difficulty closing
• Replace if the original bearing is cracked, flattened, or missing

• Disconnect power and remove items from the freezer door before starting
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Slide the old bearing off the hinge pin and install the new bearing in the same orientation
• Reassemble, then check door alignment and gasket contact; adjust as needed

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
