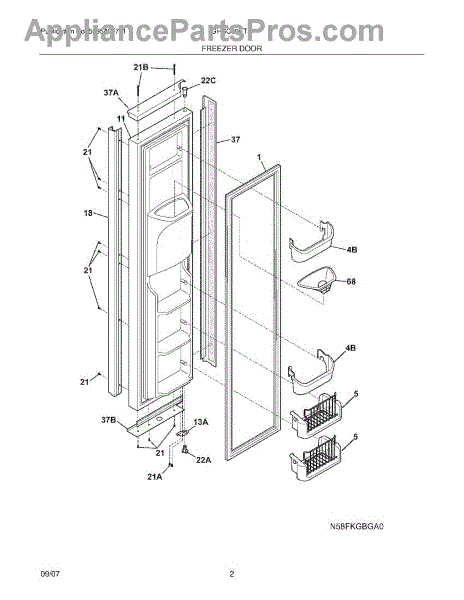

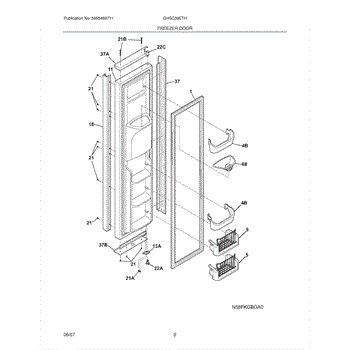

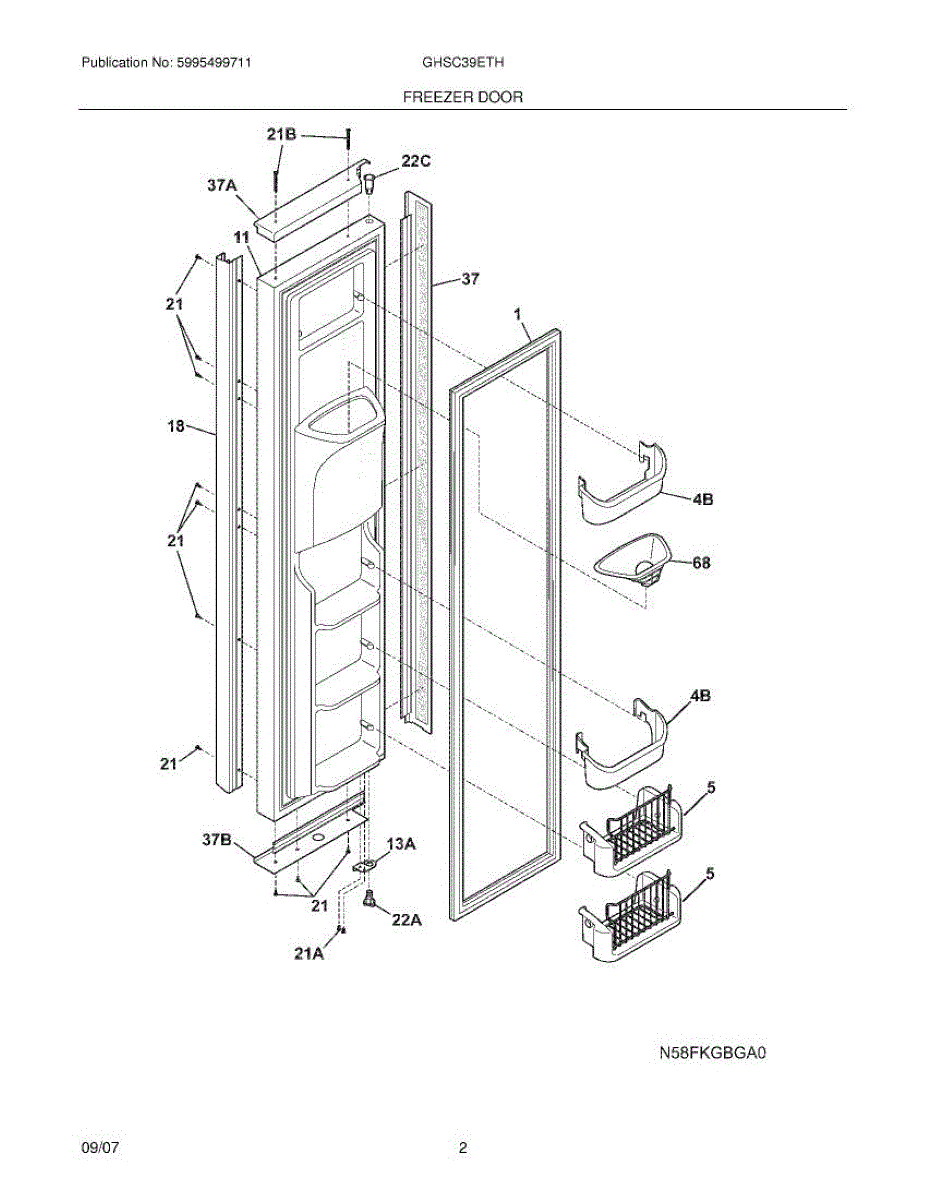

Parts for Frigidaire GHSC39ETHB2: 03 - Freezer Door Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This gray, magnetic freezer door gasket seals the perimeter of the door to keep cold air in and moisture out, helping maintain proper temperatures and reduce frost buildup for dependable food preservation.

• Forms an airtight magnetic seal between the freezer door and cabinet
• Helps stabilize internal temperature and humidity to limit frost and ice
• Common signs of failure: cracks or warping; condensation around the door; frost near the gasket; door not closing flush
• Restores sealing performance when the original gasket hardens or shrinks

• Unplug the refrigerator before servicing; use caution around sharp edges
• Warm the new gasket (warm water or low heat) to make it pliable
• Seat corners into the door retainer first, then work along the sides for an even fit
• Verify an even seal all around (dollar-bill test) and adjust gasket or door alignment as needed

The Door Bin is an OEM part for Frigidaire refrigerators. It provides additional storage within the refrigerator door, ideal for holding items like bottles, condiments, and other small containers. This door bin helps to maximize space and keep the refrigerator organized.

You should replace the door bin if it becomes cracked, broken, or no longer fits securely in the door. Causes of a bad door bin can include regular wear and tear, overloading, or impact damage.

Symptoms of a bad door bin include:

• Cracks or breaks in the plastic
• The bin not staying securely in place
• Difficulty fitting the bin into its designated slot
• Items falling out or instability when loaded

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Black

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This replacement screw secures designated components in your appliance to maintain a tight, rattle-free fit. Replacing missing or stripped hardware restores proper attachment and helps keep panels and trim properly aligned.

• Fastens specified parts to the cabinet or frame
• Helps maintain alignment of panels and trim pieces
• Replaces missing, stripped, or corroded screws
• Common symptoms: loose or vibrating parts, panel/trim won't stay secured, visible missing hardware

• Disconnect power to the appliance before servicing
• Hand-start threads to avoid cross-threading; use the correct driver
• Do not overtighten, especially when threading into plastic
• If replacing multiple screws, replace one at a time to maintain alignment

This door hinge bearing fits the refrigerator door hinge and provides a smooth, low-friction pivot point. Replacing a worn bearing restores smoother door movement and helps maintain proper alignment and a reliable gasket seal. What it does:

• Provides a low-friction surface between the hinge pin and door
• Helps keep the door aligned for consistent gasket contact
• Reduces squeaks, scraping, or binding during opening and closing
• Helps with symptoms like door sagging, not closing fully, or uneven sealing

• 1 hinge bearing

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Replace the bearing in the same orientation; reassemble hardware securely
• Reinstall the door and ensure smooth swing and full gasket contact around the perimeter

The Upper Hinge Bearing is an OEM replacement part for Frigidaire refrigerators. It facilitates the smooth and quiet opening and closing. By reducing friction at the hinge point, it ensures the door operates seamlessly and is less prone to wear over time.

Causes of a faulty upper hinge bearing include repetitive stress and wear from continuous door opening and closing over time. Exposure to moisture may accelerate bearing degradation.

Symptoms of a bad upper hinge bearing include:

• Squeaking or grinding noises emitted from the hinge area
• Difficult door operation requiring increased lifting force
• Potential misalignment compromising door seal integrity

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
