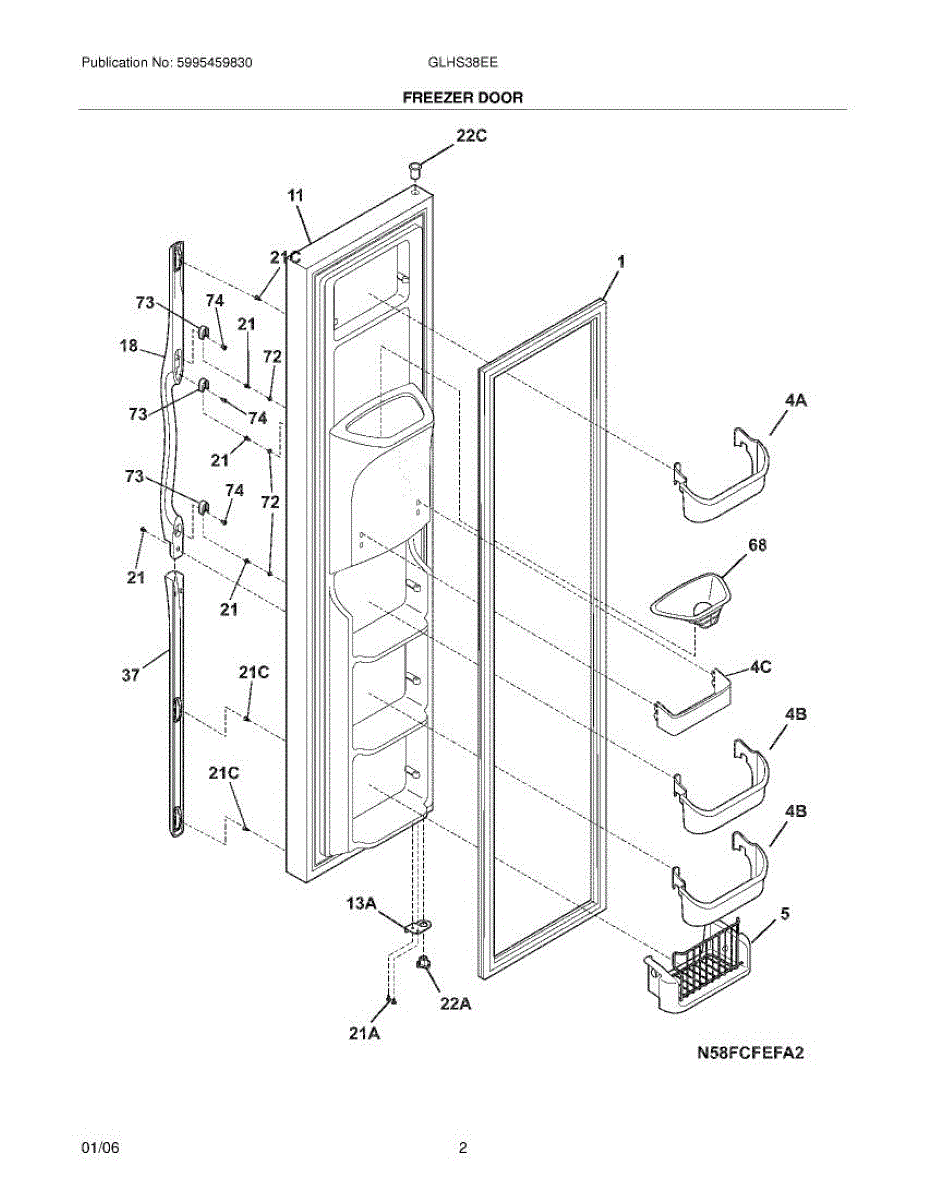

Parts for Frigidaire GLHS38EEW2: 03 - Freezer Door Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

This refrigerator door gasket forms an airtight seal between the door and cabinet to keep cold air in and moisture out. Replacing a worn gasket restores proper temperatures, reduces frost and condensation, and helps the unit run more efficiently.

• Creates a tight perimeter seal to prevent air leaks
• Helps maintain consistent internal temperatures
• Reduces moisture and frost buildup around the door
• Common symptoms of failure: tears or warping, visible gaps, door not sealing fully, temperature fluctuations, excess run time, or condensation at the door edge

• Disconnect power before service.
• Warm the new gasket in hot water or with low heat to relax kinks; avoid overheating.
• Remove the old gasket; install the new one by seating corners first, then work evenly around. For screw-retained styles, loosen and retighten fasteners evenly.
• Verify an even seal all around; adjust door alignment/leveling if needed and use a paper-slip test to check sealing.

Color: white. Measures about 11 inches wide by 4-1/2 inches high by 5 inches deep.

The Door Bin is an OEM part for Frigidaire refrigerators. It is a storage compartment located on the inside of the refrigerator door, providing a convenient space to store items such as condiments, beverages, and jars. This bin measures about 10 inches wide by 4 inches high by 6 inches deep.

A bad door bin can occur due to accidental damage, wear and tear over time, or improper handling. If the bin cracks, breaks, or becomes warped, it can compromise its function and affect the storage capacity of your refrigerator.

Symptoms of a bad door bin include:

• Cracked or broken bin.
• Difficulty in keeping items in place.
• Limited storage capacity.
• Inability to attach the bin to the door.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement machine screw used to secure appliance panels and internal components, restoring a stable fit and reducing rattling. Matches a 10-32 thread with a 17/32-inch length for original fastener locations. What it does:

• Fastens panels, trim pieces, and internal brackets; a missing or damaged screw can cause loose panels or rattling noises.
• Secures knobs, control housings and small assemblies to prevent wobble or misalignment.
• Restores proper fit for components so doors and access panels sit evenly and function reliably.

• Disconnect power (unplug or shut off circuit) before accessing components.
• Use the correct driver and tighten by hand; avoid overtightening to prevent stripped threads or cracked plastic.
• Keep any original washers or clips and reinstall them with the screw.

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

This door hinge bearing fits the refrigerator door hinge and provides a smooth, low-friction pivot point. Replacing a worn bearing restores smoother door movement and helps maintain proper alignment and a reliable gasket seal. What it does:

• Provides a low-friction surface between the hinge pin and door
• Helps keep the door aligned for consistent gasket contact
• Reduces squeaks, scraping, or binding during opening and closing
• Helps with symptoms like door sagging, not closing fully, or uneven sealing

• 1 hinge bearing

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Replace the bearing in the same orientation; reassemble hardware securely
• Reinstall the door and ensure smooth swing and full gasket contact around the perimeter

Color: White. Approx size: 30.13"

The Handle Mounting Block is an OEM part for Frigidaire refrigerators. This component anchors the refrigerator door handle assembly while also reinforcing the door structure.

Causes of a bad mounting block can include cracks developing from repeated opening/closing stresses, broken fasteners loosening its installation, or residual damage during door replacement or repair attempts.

Symptoms of a bad handle mounting block include:

• Loose, sagging or misaligned door handles
• Doors difficult to open or not staying securely closed/latched
• Noisy rattling coming from the door handle area
• Cracks or breaks visible in the mounting plastic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Specs: 10-16 X 0.500

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
