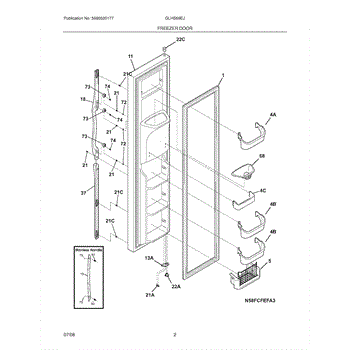

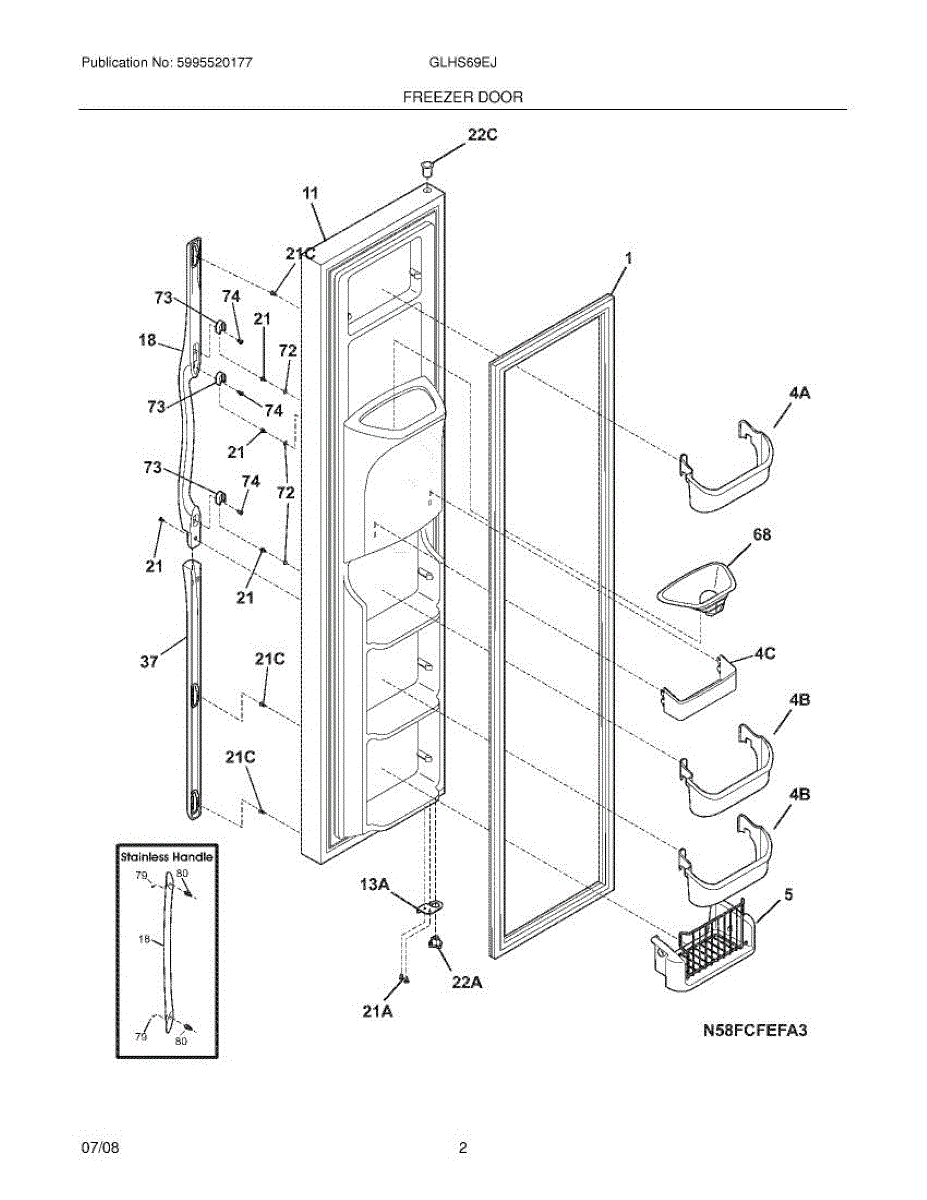

Parts for Frigidaire GLHS69EJPW2: 03 - Freezer Door Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

The Freezer Door Gasket is an OEM replacement part for Frigidaire refrigerators. This gasket provides a secure seal around the freezer door, ensuring that cold air remains inside while keeping warm air out. It helps maintain consistent freezer temperatures for optimal food storage and prevents energy loss.

Causes of a bad freezer door gasket can include wear from regular use, exposure to temperature fluctuations, or damage from cleaning agents. Over time, the gasket may lose its flexibility, develop cracks, or become misaligned, compromising its ability to seal properly.

Symptoms of a bad gasket include:

• Frost buildup or ice accumulation inside the freezer
• Difficulty keeping the freezer door closed securely
• Warm air entering the freezer, leading to inconsistent temperatures
• Higher energy bills due to the freezer working harder to maintain cold temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Upper Freezer Door Bin is an OEM part for Frigidaire side-by-side refrigerators. It provides organized storage for freeze-sensitive items like ice cream in the freezer door. The door bin measures approximately 13"L x 5 1/2" W.

Over time, repeated opening and closing of the freezer door subjects the storage bin to mechanical stresses and impact damage. Cracks or breaks in the plastic can compromise its storage function.

Symptoms of a problematic freezer door bin include:

• Inability to safely or efficiently store items
• Cracks or breaks in the plastic that compromise structural integrity
• Discoloration or mineral buildup reducing storage capacity

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Freezer Door Shelf is an OEM replacement part for Frigidaire refrigerators. This freezer door shelf is designed to keep items organized inside the freezer door while allowing for easy access. Approximately 11 inches in width and 5 inches in depth

Causes of a bad shelf can include wear and tear over time, exposure to excess weight or unbalanced loads, damaged or missing supports, or impact from fallen items.

Symptoms of a bad shelf include:

• Sagging or bending of the shelf surface
• Items easily falling off or through the shelf
• Difficulty accessing freezer items due to unstable storage
• Damage or deformity of shelf supports

This OEM Frigidaire replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This tilt-out door bin replaces a cracked, broken or missing refrigerator door bin so you can store small food items and condiments securely. It restores a tidy door shelf and keeps items from falling when opening the door. What it does

• Provides a secure tilt-out shelf for small jars, bottles and condiments on the refrigerator door
• Replaces damaged, cracked or loose bins that no longer hold items properly
• Helps stop items from shifting or falling when the door is opened
• Matches factory fit and mounts into the existing door bin supports

• One tilt-out door bin (single piece as shown)

• Remove all items from the door and clean the mounting area before installing
• Align bin hooks with the door supports and snap into place; ensure it seats securely
• Do not force into misaligned supports; inspect supports for damage if it won't engage
• Handle plastic edges carefully; wash by hand with mild detergent and dry thoroughly

This factory screw fastens refrigerator components and panels. It replaces missing or damaged hardware so parts stay aligned and secure, reducing looseness and rattles caused by vibration. What it does:

• Secures panels, brackets, and trim per your model's design
• Helps maintain alignment and reduce vibration-related loosening or noise
• Replaces missing, stripped, or corroded hardware
• Restores a snug fit when threads or heads are worn

• One screw

• Disconnect power; turn off the water supply if working near ice or dispenser systems
• Use the correct driver; start threading by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking adjacent plastic
• Refer to your model's diagram to confirm location and quantity used

This replacement screw secures designated components in your appliance to maintain a tight, rattle-free fit. Replacing missing or stripped hardware restores proper attachment and helps keep panels and trim properly aligned.

• Fastens specified parts to the cabinet or frame
• Helps maintain alignment of panels and trim pieces
• Replaces missing, stripped, or corroded screws
• Common symptoms: loose or vibrating parts, panel/trim won't stay secured, visible missing hardware

• Disconnect power to the appliance before servicing
• Hand-start threads to avoid cross-threading; use the correct driver
• Do not overtighten, especially when threading into plastic
• If replacing multiple screws, replace one at a time to maintain alignment

This upper door hinge bearing serves as the low-friction bushing on the top hinge pin so the refrigerator door pivots smoothly. Replacing a worn bearing can stop squeaks and help restore level, easy-opening door operation.

• Provides a low-friction sleeve for the upper hinge pin to reduce wear
• Helps maintain door alignment with the cabinet for a consistent seal
• Common symptoms include squeaking or grinding, door rubbing or sagging, or the door not closing smoothly
• Physical signs include cracks, flattening, or oval-shaped wear in the bushing

• Unplug the refrigerator and remove items from the door
• Support the door; remove the top hinge cover and screws, then lift the door slightly
• Replace the worn upper hinge bearing on the hinge pin or bracket (design varies)
• Reinstall the hinge, align the door, and ensure proper gasket contact

This door hinge bearing fits the refrigerator door hinge and provides a smooth, low-friction pivot point. Replacing a worn bearing restores smoother door movement and helps maintain proper alignment and a reliable gasket seal. What it does:

• Provides a low-friction surface between the hinge pin and door
• Helps keep the door aligned for consistent gasket contact
• Reduces squeaks, scraping, or binding during opening and closing
• Helps with symptoms like door sagging, not closing fully, or uneven sealing

• 1 hinge bearing

• Disconnect power and remove items from the door before servicing
• Support the door; remove hinge cover and fasteners, then lift the door off the hinge pin
• Replace the bearing in the same orientation; reassemble hardware securely
• Reinstall the door and ensure smooth swing and full gasket contact around the perimeter

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
