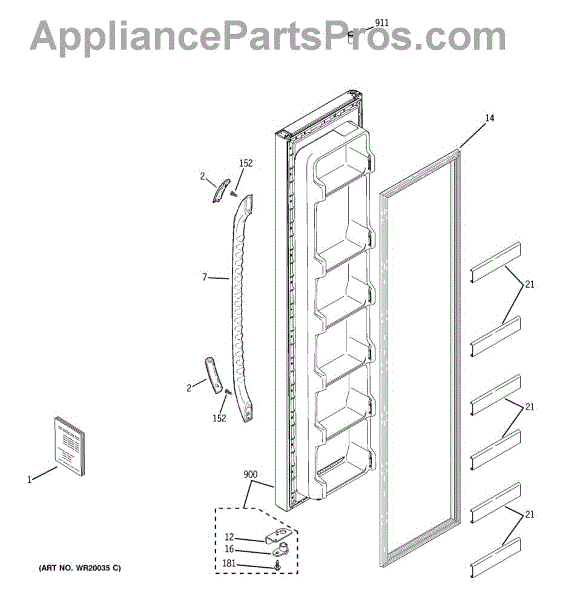

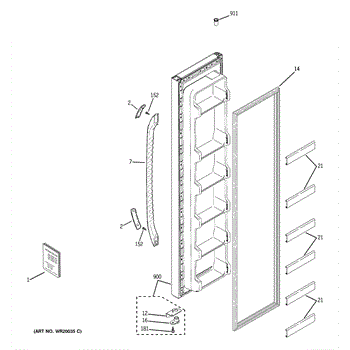

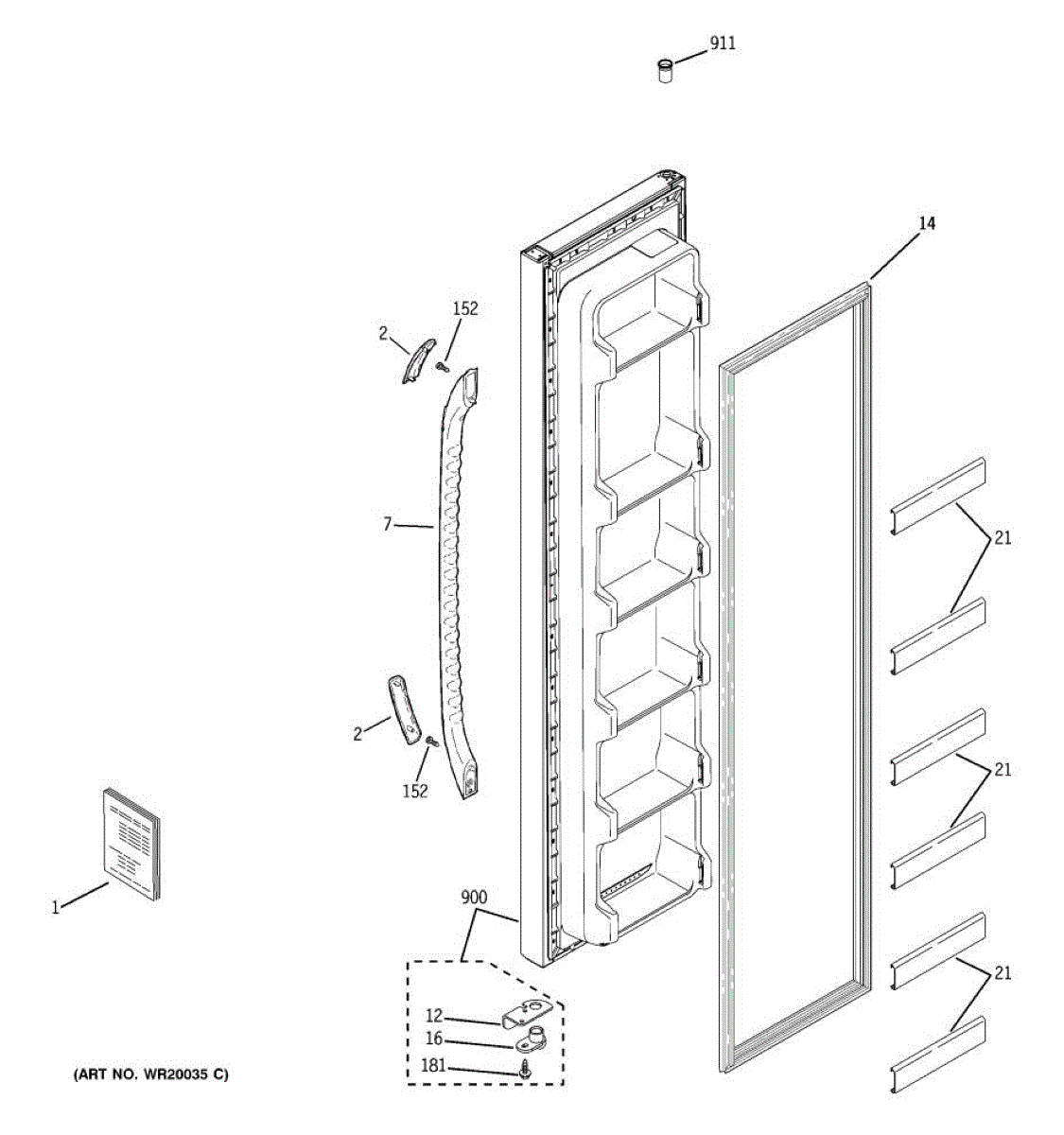

Parts for Ge GSE20IBTBFBB: 01 - Freezer Door Parts

A cap handle is a feature on refrigerators that allows the user to operate the device easily. The cap handle is located on the lower portion of the door handle. It is a largely cosmetic item, but it is also an access point if the door handle has to be removed. It covers the screws that hold the handle in place.A visual inspection will determine the condition of a cap handle. The replacement of this component is a quick and straightforward process. If there is an existing cap handle, remove it entirely first. Clean the area where the new cap handle will be placed. Align the part in the proper position and apply pressure. It will snap into place when done correctly.This cap handle is a genuine OEM replacement part. It is sourced directly from the manufacturer. The cap handle is made of durable materials and sold as an individual unit. This cap handle fits on various models of refrigerators. It is compatible with appliances manufactured by General Electric, Hotpoint, and RCA.

This freezer door stop plate helps position and secure the door by limiting its swing, restoring proper alignment and preventing over-rotation that can cause gaps or rubbing. Simple replacement for worn or damaged stops. What it does:

• Stops the freezer door at the correct open/closed position so the door seals properly
• Prevents the door from swinging too far and rubbing or catching on the cabinet
• Restores consistent door alignment when the original stop is bent, broken, or missing
• Reduces wear on hinge and gasket areas caused by improper door travel

• One freezer door stop plate

• Disconnect power to the appliance before starting any repair to avoid injury
• Remove the freezer door or access panel as needed to reach the stop plate
• Use hand tools to remove/install mounting screws; align the plate before tightening to avoid misalignment
• Do not force parts; if mounting holes are damaged, assess bracket/hinge condition before finalizing repair

This freezer door gasket creates an airtight seal around the door to keep cold air in and moisture out. Replacing a worn seal helps restore stable temperatures, reduce frost and condensation, and improve overall efficiency. What it does:

• Seals the perimeter of the freezer door to prevent air leaks and humidity intrusion
• Helps maintain consistent internal temperature and energy performance
• Replaces gaskets that are torn, warped, brittle, or won't stay seated
• Common symptoms include excess frost or ice near the door, condensation around the frame, or the door not closing flush

• 1 freezer door gasket

• Disconnect power before servicing
• Warm the new gasket in hot water or with a low-heat hair dryer to improve flexibility
• Remove the old gasket and press the new gasket fully into the door channel, starting at the corners
• Close the door and check for an even seal (use a "dollar bill" test); allow up to 24 hours for the gasket to relax and conform

This is a screw intended for use in refrigerators, specifically as the top mounting screw for the handle. If the screw in the handle is missing, stripped, or otherwise not performing its function, a replacement screw should be ordered.A visual inspection will determine if a screw is missing. If the door handle is loose or falling off from the top, it is a sign that a replacement screw is required. This repair is a quick and easy process. It involves the use of a screwdriver. Remove the old screw if there is one in place. Line up the holes on the door and the door handle component before twisting the new screw into position. Wear gloves to protect hands during the repair.This screw is a genuine OEM replacement part. It is sourced directly from the manufacturer. The screw is sold individually. The screw is compatible with several different models of refrigerators. It can be installed in ranges made by Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

10-32 F HXW 3/4 S

This top-closed thimble is a small protective plug that presses into a cabinet opening to cap and finish the hole, helping prevent abrasion and limiting air or moisture leaks for reliable appliance performance.

• Caps and seals an unused hole/opening in the liner or cabinet
• Shields edges to help protect nearby wiring or tubing from chafing
• Helps reduce drafts and moisture migration that can contribute to frost, condensation, or temperature swings
• Replace if cracked, brittle, loose, missing, or if you notice gaps or rubbing noises

• Disconnect power; if applicable, turn off the water supply
• Access the opening, remove the old thimble/plug, and clean the area
• Align and press the new thimble into the hole until fully seated and flush; avoid pinching wires or tubing
• Restore power/water and verify a snug fit
